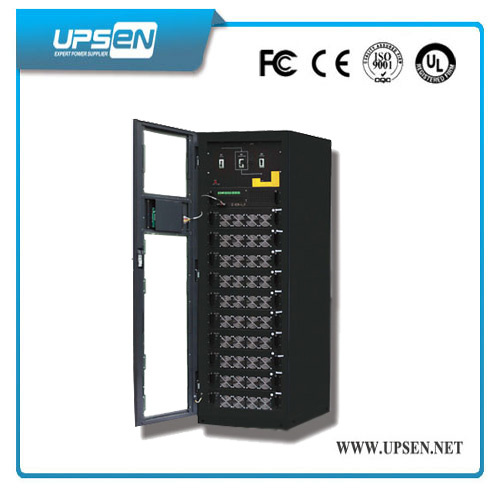

Pure Sine Wave 10kVA-200kVA Online UPS Modular Power Supply

Prod Model:	Modular Star Series 10-200Kva
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thd:	< 1%
IP Class:	IP20
Crest Factor:	3: 1
Noise(dB):	< 55dB
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Upsen

Product Description

Pure Sine Wave 10KVA-200KVA Online Ups modular power supply
Model: Modular Online UPS Power Melody Star Series (3ph in/3ph out)

Key Features
1:UPS with Modular design and hot swappable.
2:Intelligent module and system protection design.
3:Double DSP controller for individual power module.
4:Large touch screen LCD with plenty of information.
5:Totally front access, top and bottom cable connection.
6:Inbuilt power distribution for input and output connection.
7:Ultra-strong flexibility of load, load capacity and power grid.
8:Redundant intelligent speed fan, low noise and energy saving.
9:Modular design of the UPS, X + N redundancy, online hot plug expansion.
10:All of rectifier, inverter, charge and discharge can achieve DSP digital control.
11:IGBT modules rather than discrete components are applied in the power module.
12:Digital control for the whole parts including rectifier, inverter, charger and discharger.

Applications;
Alarm Systems,Communication Equipments,Control Equipments,Security Systems,Medical Equipments,Control Equipment,railway stations, airports and seaports etc.

Technical  Specification

MS Series 10K-200Kva
Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(W*D*H)(mm)	6-module cabinet	600*900*1600
	10-module cabinet	600*900*2000
	Module	400*600*133 (10KVA/15KVA/20KVA)

Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
