| Prod Model: |
EP2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Self-Diagnosis Function: |
Yes |
| Transfer Time: |
Typical 12-20ms |
| AC-AC Efficiency: |
> 95% |
| LED Indicator: |
Yes |
| Output Voltage Range: |
220V |
| Output Frequency: |
50Hz or 60Hz |
| Output Current: |
Max 25A |
| Output Wave: |
Pure Sine Wave |
| Warranty: |
1 Year |
| Appliance: |
Home Use |
Product Description

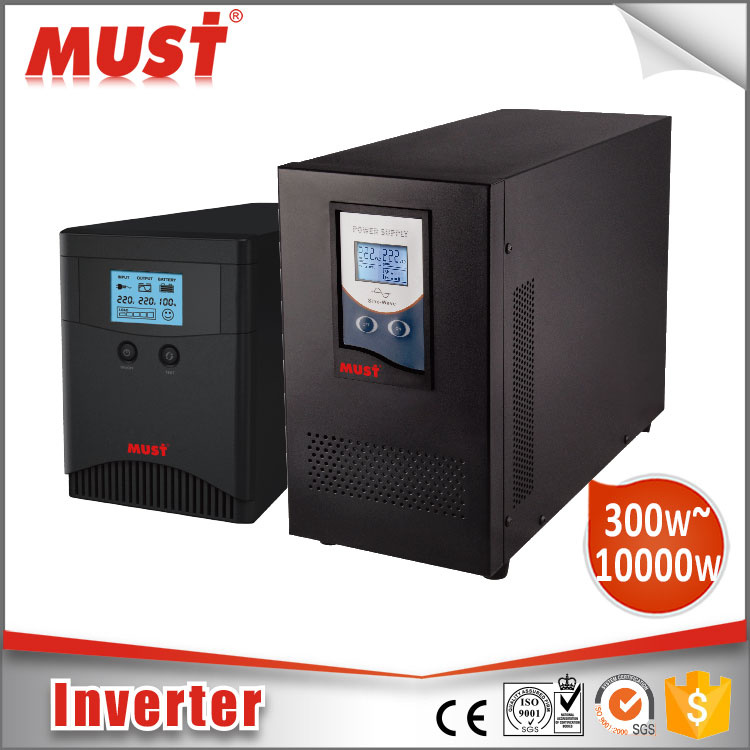

Pure Sine Wave 3000W Inverter with AVR Function
Product Details
Features of power inverter EP2000 pro series:
1. Pure sine wave output
2. Low Frequency inverter
3. Wide input voltage range
4. Built in
AVR function 5. With grid charing switch
6. Built-in
Super transformer 7.
Overload and short circuit protection 8. Battery reverse protection (option)
Design of power inverter EP2000 pro series:

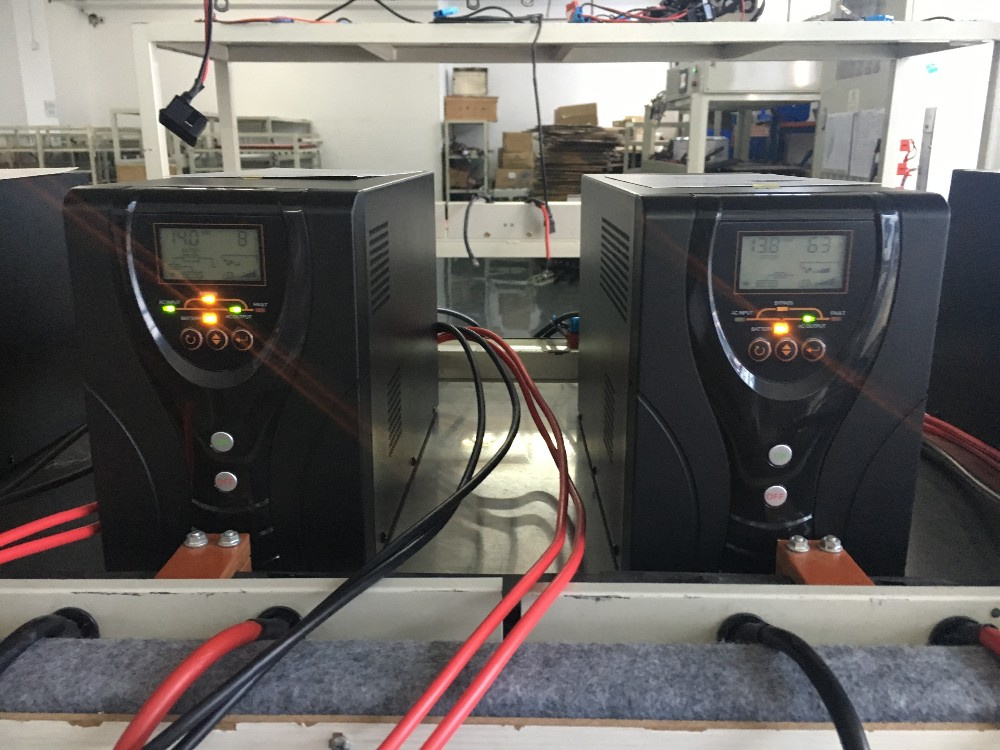

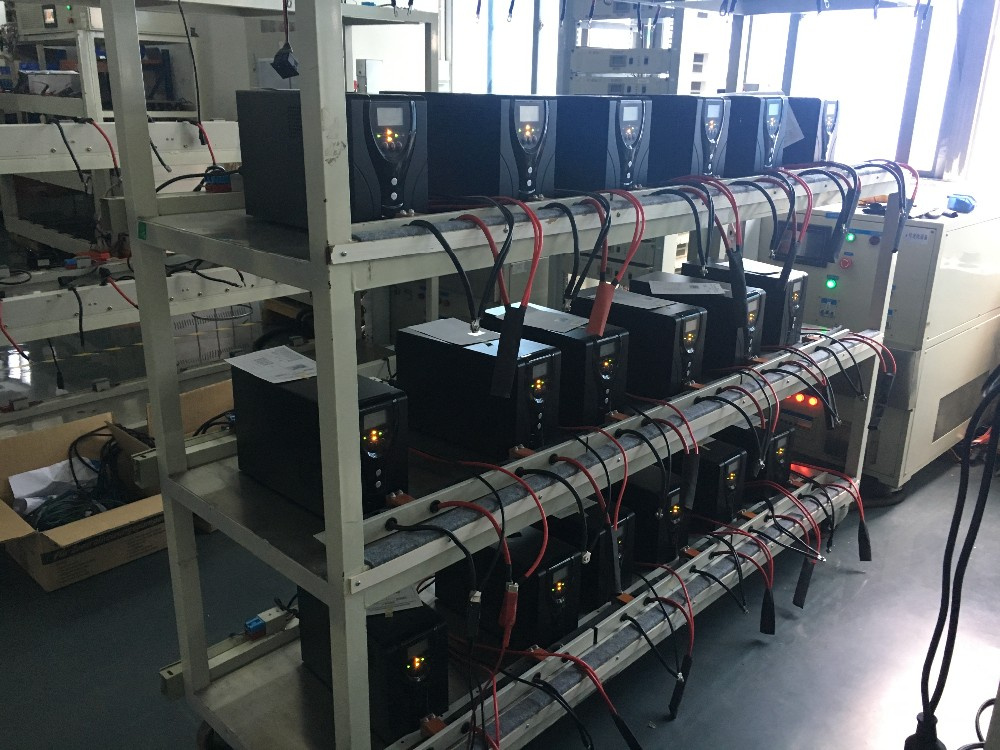

Testing of power inverter EP2000 pro series:
| Model | EP20-0312 Pro | EP20-0612 Pro | EP20-0812 Pro | EP20-1012 Pro | EP20-0324 Pro | EP20-0624 Pro | EP20-0824 Pro | EP20-1024 Pro |
|---|
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT |
| Rated Power | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| Surge Rating(20ms) | 900W | 1800W | 2400W | 3000W | 900W | 1800W | 2400W | 3000W |
| Waveform | Pure Sine Wave |
| Rated Output Voltage | Inverter:230VAC(+/-2% RMS), AVR:195VAC-245VAC |
| Output Frequency | 50Hz/60Hz +/-0.2Hz |
| Inverter Efficiency(Peak) | >75% | >81% |
| Bypass Efficiency | >95% |
| Output Transfer Time | Typical:6ms 10ms(max) |
| AC INPUT |
| Voltage | 220/230/240VAC |
| Selectable Voltage Range | 140~280VAC+/-2% |
| Low Battery Alarm | 140VAC+/-2% |
| Low Voltage Recover | 150VAC+/-2% |
| High Battery Alarm | 280VAC+/-2% |
| High Voltage Recover | 270VAC+/-2% |
| Low Frequency Alarm | 45+/-0.2Hz |
| Low Frequency Recover | 46+/-0.2Hz |
| High Frequency Alarm | 65+/-0.2Hz |
| High Frequency Recover | 64+/-0.2Hz |
| Norminal Input Range | 50Hz/60Hz +/-0.2Hz |
| AC Auto Restart | YES |
| BATTERY |
| Minimum Start Voltage | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+0.5V |
| Low Battery Alarm | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+1.0V |
| Low Battery Cutoff | 10-12.0VDC | 20.0-24.0VDC |
| High Battery Cutoff | Nominal Voltage+0.5V | Nominal Voltage+1.0V |
| AC CHARGE |
| Floating Voltage | 13.5 /13.6/ 13.7VDC | 27.0/ 27.2 /27.4VDC |
| Nominal Voltage | 13.8~14.5V | 27.6~29V |
| Maximum Charge Current | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| 10A | 20A | 25A | 30A | 5A | 10A | 15A | 15A |
| BYPASS & PROTECTION |
| Input Waveform | Pure Sine Wave |
| Input Frequency | 50Hz or 60Hz |
| Low Frequency Trip | 45+/-0.2Hz |
| Low Frequency Trip | 65+/-0.2Hz |
| Overload Protection | 110%~125%R Load fault after 30S; 125% ~150%R Load fault after 3s ;>150%R Load fault after 500ms |
| Over Temperature Protection | >90ºC |
| Bypass Output Protection | 10A 250VAC |
| Output Circuit protection | YES |
| Battery Reverse Protection | Optional |
| Battery Low Voltage Protection | YES |
| Battery High Voltage Protection | YES |
| Bypass Breaker Rating | 10A |
| Maximum Bypass Current | 10 |

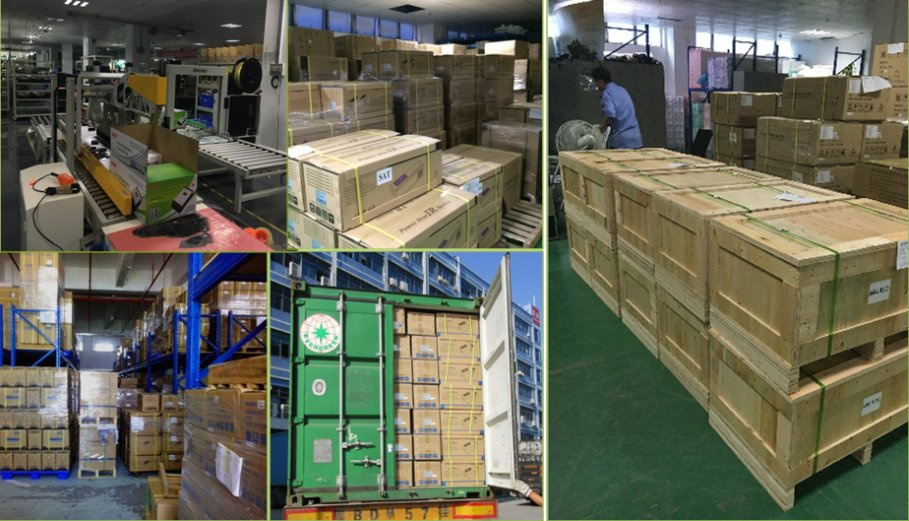

Product Packing:
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| MUST Factory Certifications |
FAQ| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: 12 Months warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: Does the inverter connect with solar system?
A6:Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..
Q7: What kind of certificate you have ?
A7: Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, SAA, UL, etc.
Contact us today to determine if you can take advantage of state solar energy incentives!
(Welcome your inquiry, trial order also is welcome)
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
