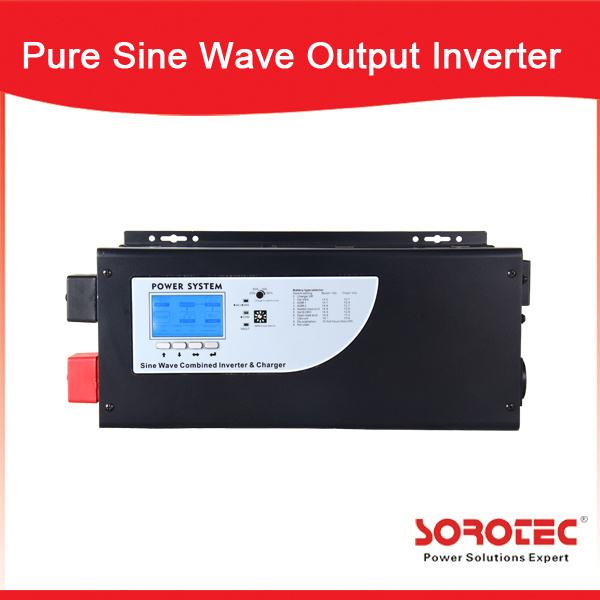

Pure Sine Wave Form Solar Power Inverters 1kw to 6kw Inverter Ig3115c with Color Screen
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,others |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
IG3115CL 1-6KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage Regulation: |
± 10% RMS |
| Nominal Output Voltage (V): |
230VAC |
| Power Factor: |
0.9~1.0 |
| Output Waveform: |
Pure Sine Wave |
| Nominal Input Frequency: |
50Hz/ 60Hz (Auto Detection) |
| Nominal Input Voltage: |
12V/24V/48V |
| Low Voltage Trip: |
90V±4%&184V/154V±4% |
| High Voltage Trip: |
140V±4%&253V±4% |
Product Description
Pure Sine Wave Form Solar Power Inverters 1KW to 6KW Inverter IG3115C with Color Screen Key Features:1.Pure sine wave output, color screen display.
2.The charging current is big up to 85 Amp.
3.Output power factor is 0.9-1.
4.Output socket optional.
5.Battery type can be select.
6.Output voltage and frequency can be set.
7.Charge current can adjust.
8.Battery temperature sense optional.
9.Connect to generator restart function.
10.Well accept generator's output.
11.Full automatical and silent operation.
12.Automatically transfer between battery and line modes.
13.Microprocessor control guarantees high reliability.
14.Remote control function.
15.Three-steps intelligent charging control to recharging time.
16.Bypass function.Full protection:Protection for low battery voltage ,over load ,output short circuit and over- temperature restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.Applications:Supply the reliable long back up time power for the home appliances and office appliances and solar power systems etc.Technical Specification of Pure Sine Wave Inverter IG3115 Series:| MODEL | IG3115CL 1-6KW Pure Sine wave Output Inverter |
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Input Wave form | Sine wave (utility or generator) |
| Nominal Voltage | 230Vac (120Vac optional) |
| Low voltage trip | 90v ±4% & 184v/154v ±4% |
| Low voltage re engage | 100v ±4% & 194v/164v±4% |
| High voltage trip | 140v ±4% & 253v ±4% |
| High voltage re engage | 135v ±4% & 243v±4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) |
| Frequency range | 47Hz~65Hz |
| Output Wave form | (Bypass mode)same as input |
| Efficiency on line transfer mode | ≥95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | Yes |
| Inverter specification/output |
| Output wave form | Pure sine wave |
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal Output Voltage rms | 230Vac (120Vac optional) |
| Output Voltage regulation | +/- 10%rms |
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Safety Certification | >88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes,fault after 1 secs |
| Inverter specification/input |
| Nominal input voltage | 12V/24V/48V |
| Minimum start voltage | 10V/20V/40V |
| Low battery alarm | 10.5V/21V/42V |
| Low battery trip | 10V/20V/40V |
| High voltage alarm | 16V/32V/64V |
| Power saver | Same switched on/off on remote |
| Charger mode specification |
| Output voltage | Dependent on battery type |
| Charge current | 0-85A MAX |
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Charger curves(4stage constant curren) | battery types |
| 4 step digital controlled progressive charge |
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) |
| Gel U.S.A | 14.0 13.7 |
| A.G.M. 1 | 14.1 13.4 |
| A.G.M. 2 | 14.6 13.7 |
| Sealed lead acid | 14.4 13.6 |
| Gel euro | 14.4 13.8 |
| Open lead acid | 14.8 13.3 |
| Calcium | 15.1 13.6 |
| De-sulphation | 15.5 for 4 hrs |
| Remote control/RS232/USB | Yes. Optional |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
