Pure Sine Wave Inverter 1000W with Inside Controller

Name: Pure Sine Wave Inverter 1000W with Inside Controller
Brand: all-electronics-online.com
SKU: 814773725
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 17.98/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MRM1000-1
Product Name:	Pure Sine Wave Inverter with Inside Controller
Warranty:	18months
Color:	Silver/Black
Weight:	2.6kgs
Frenquency:	50/60 Hz
Carton Measurement:	52.53542.5cm
USB Output:	5V 500mA
Quantity Per C.T:	8PCS

Product Description

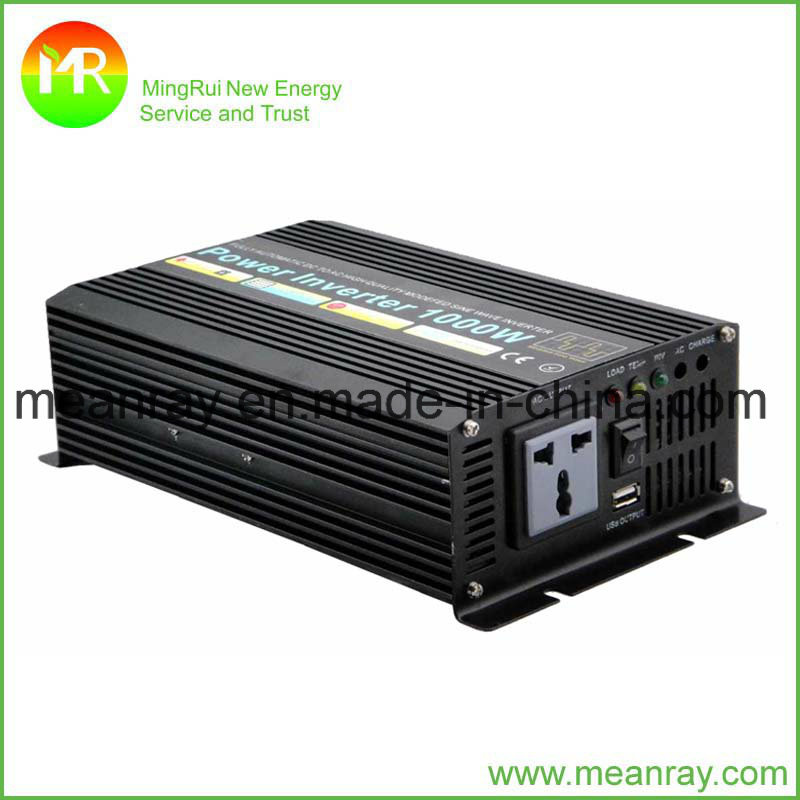

Pure Sine Wave Inverter 1000W with Inside Controller

Pure Sine Wave Inverter Description:

1. Product Name: 1000W Modified Sine Wave Power Inverter
2. Country of Origin: China
3. Model: MRM-1000
4. Color: Silver / Black

Pure Sine Wave Inverter Specification:

MRM-1000 Specification
Model		MRM-1000-12	MRM-1000-24	MRM-1000-36	MRM-1000-48
Output	Continuous output	1000W
	Surge Power	2000W
	AC Voltage	100/110/115/120/200/220/230/240V to be selected
	Frequency	50Hz or 60Hz
	Wave Form	Modified Sine Wave
	USB Output	DC 5V ± 5% 500mA
Input	Battery Voltage	12V	24V	36V	48V
	DC Current (typ.)	100A	50A	33A	25AC
	Low Battery Alarm	10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	Battery Voltage Low Stop	10V ± 2%	20V ± 2%	30V ± 2%	40V ± 2%
	High Battery	16V ± 2%	32V ± 2%	48V ± 2%	64V ± 2%
	No load current	600mA	300mA	150mA	120mA
	Efficiency	> 90%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Intelligent Design Heat Auto Control		Fan Start : 42ºC ± 3 , Fan Stop : 38ºC± 3 : 42 ºC±3 ,: 38 ºC±3
		High Temperature Shut Down : 63ºC±3 , Restart Output : 55ºC±3 : 63 ºC±3 ,: 55ºC±3
Indicator		Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED
Mechanical	Dimensions (mm)	225+25 (D) x 157 (W) x 75(H)
	Weight	2.6 kgs

Pure Sine Wave Inverter Features:

Dedicated design for the use of Solar Power Energy.
Modified Sine Wave
Supply USB 5V/500mA
USB 5V/500mA
High temperature alarm and protection system
Output overloaded alarm and protection system
Output short circuit alarm and protection system
High surge capacity for starting demanding loads
Alarm and protection for low / high battery

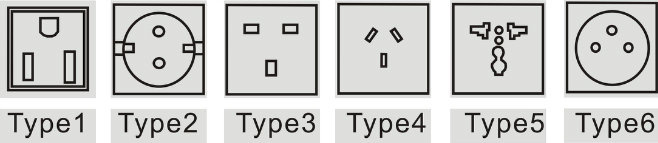

Pure Sine Wave Inverter Output Receptacles:

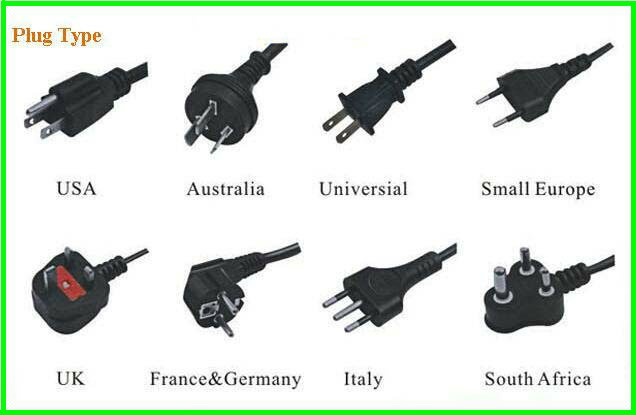

Pure Sine Wave Inverter Plug Type:

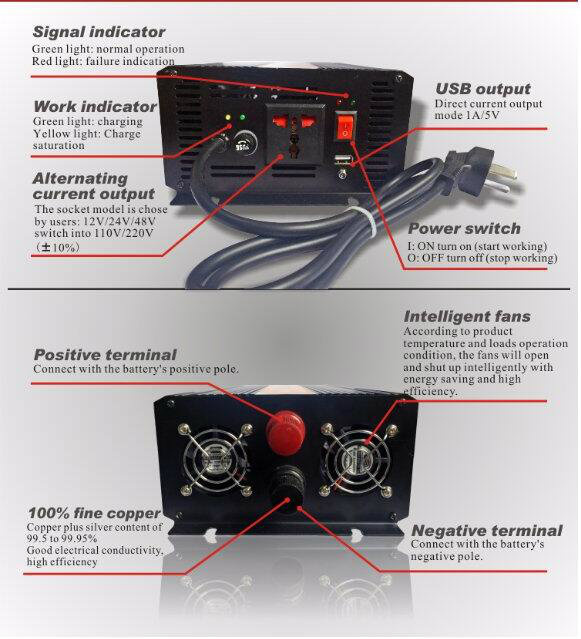

Pure Sine Wave Inverter Input/Output Introduction:

Pure Sine Wave Inverter Packing Details:

Pure Sine Wave Inverter Shipping:

Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.

The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.

The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.

In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.

Save limited energy, clean the world...MEANRAY together with you.
