| Prod Model: |
ES Series |
| Charger: |
AC Charger & Solar Charger |
| Connection: |
Terminal Block |
| Output: |
Pure Sine Wave |
Product Description

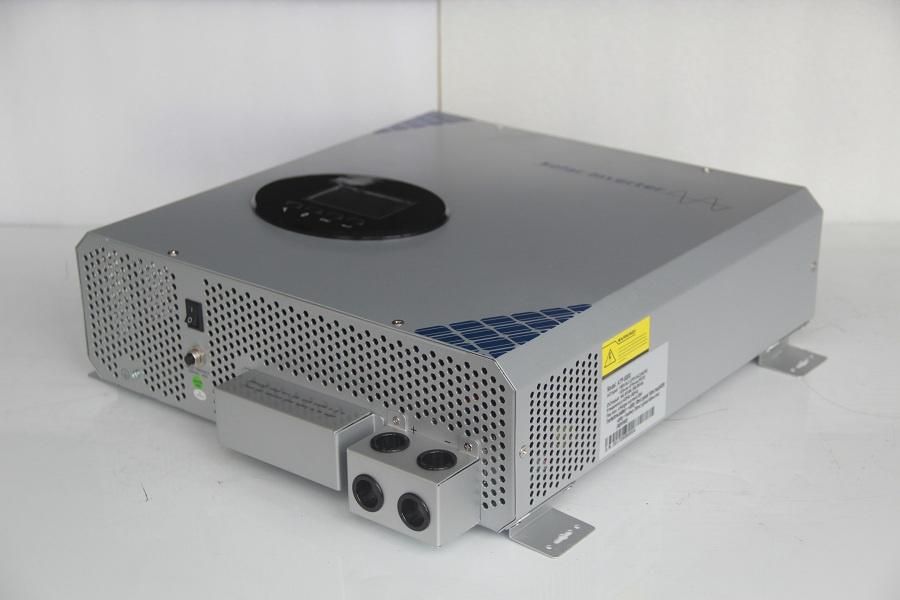

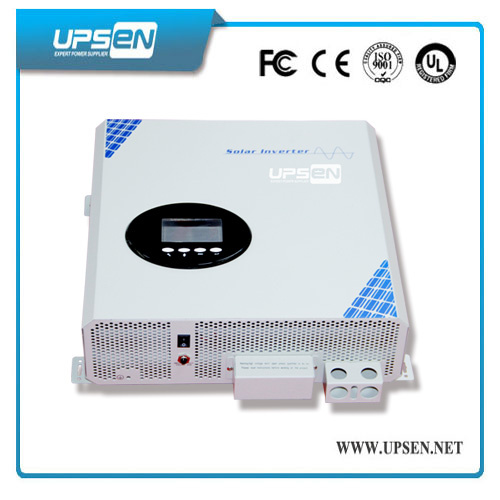

Pure Sine Wave Inverter High Frequency Inverter 3000VA and 5000Va
Hybird Inverter Charger Empire Star Series 3000W / 5000W (1ph in/1ph out) Inverter Features:1>Light weight and compact size
2>High converting efficiency
3>Smart battery charger design for optimized battery performance

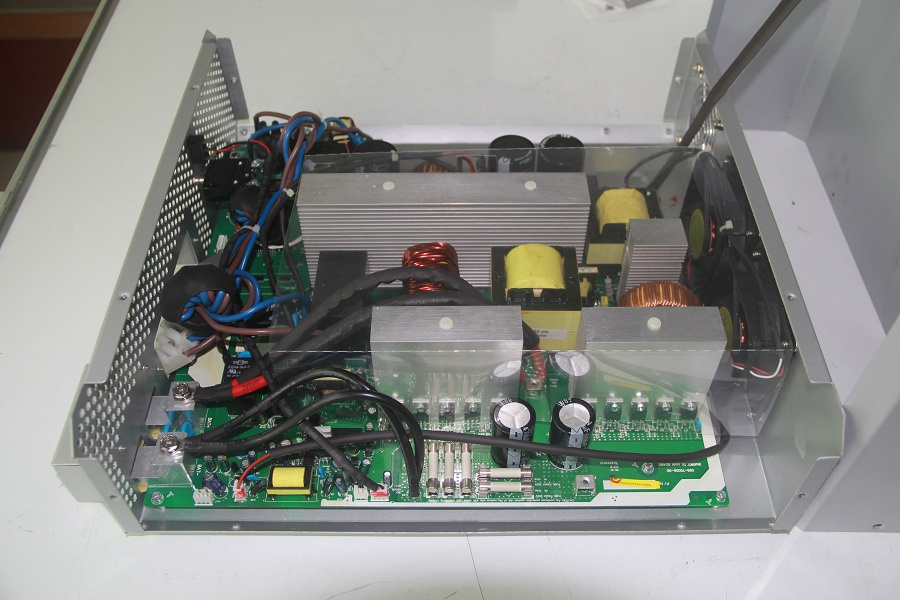

4>High frequency push pull converter, and high frequency full bridge Inverter
5>Inverter + SCC(Solar charge controller)(for SCC model only)Pure Sine wave output voltage.
Charger1)Low interference technology
2)The surge power twice as rated power
3)Charger works even if the input switch is in OFF position, whatever input voltage threshold
MPPT1:SCC-for SCC model only
2:Microprocessor controlled
3:Three-stage battery charge protection
4:Charger for battery when SCC is available
5:Silent, pulse width modulated (PWM), high efficiency operation
Technical Specification| ES Inverter |
| Model No. | ES3000 | ES3000S | ES5000 | ES5000S |
| CAPACITY | 2.4KW/3000VA | 4.2KW/5000VA |
| INPUT |
Input Voltage
Waveform | Pure Sine Wave (utility or generator ) |
Nominal Input
Voltage | 230Vac |
Input Voltage
Range | 170Vac~280Vac(Normal);
90Vac-280Vac(Generator / Wide) | 170Vac~280Vac(Normal);
125Vac-280Vac(Generator / Wide) |
Max AC
Input Voltage | 300Vac RMS |
Nominal Input
Frequency | 50Hz / 60Hz(Auto detection) |
| OUTPUT |
| Wave form | Pure sine wave (Inverter mode) |
Voltage Regulation
(Inverter Mode) | ±10% RMS |
| Output Frequency | 50Hz / 60Hz ±1Hz |
| Nominal Efficiency | 90%(@Inverter mode with normal DC Input;>60% R load);
95%(@Inverter mode with Rated R load,battery full charger); |
Capable of starting
electric motor | 1.5H | 2.5H |
| Power Factor | 0.8 | 0.84 |
Over-Load
Protection | Tripped off after 5s@≥150% load
Tripped off after 10s@≥110%~150% load |
| Transfer Time | Normal range:10ms(typical) 15ms(max)
Generator / wide renge : 20ms (typical) 40ms(max) |
| Power Limitation |  |  |
| BATTERY |
| Battery Voltage | 24.0Vdc±0.6Vdc | 48.0Vdc±0.6Vdc |
Battery low
alarm voltage | 21.0Vdc±0.6Vdc | 42.0Vdc±1.2Vdc |
Battery low
shut-down voltage | 20.0Vdc±0.6Vdc | 40.0Vdc±1.2Vdc |
| AC CHARGER |
| Charger Current | 10A/20A selectable
10A@Vi/p<170Vac or Vi/p>280Vac; 20A@Vi/p=230Vac | 10A selectable
10A@Vi/p<200Vac or Vi/p>280Vac |
Boost Charger
Voltage (bat.Type) | 28.4Vdc | 56.8Vdc |
Floating Charger
Voltage (bat.Type) | 27.4Vdc | 54.8Vdc |
Over Charger
Voltage | 30.0Vdc | 58.0Vdc |
| PV CHARGER |
| Charger Current | No PV Charger | 40A+5%/-10% | No PV Charger | 60A+5%/-10% |
Bulk Voltage
/ floating Voltage | 28.4V±0.6V/
27.4V±0.6V | 56.8V±1.2V/
54.8V±0.6V |
| Efficiency | maximum of 95% | maximum of 95% |
| Input range | 0-75V(±5%) | 0-150V(±5%) |
PV charge
work range | Bat.V+2V to 75V(±5%) | Bat.V+2V to 150V(±5%) |
| Storage temperature | -5ºC~60ºC |
| AUDIBLE ALARM |
Low battery
at inverter mode | Beeps 1 time every 2s |
| Over load | 110%~150% load:beep 10 times every 0.5s
>150% load:beep 5 times every 0.5s then fault |
| Fault | Beeps continuously |
| PHYSICAL |
| Net Weight(KG) | 5.2 | 8.2 |
| Dimension,D*W*H(mm) | 318*268.4*85.2(mm) | 428.5*350.4*119(mm) |
| *Specification is subject to change without prior notice. |
