| Prod Model: |
Hanker Power Star Series 1KW-12KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Orange |
| Output Waveform: |
Pure Sine Wave/Same as Input(Bypass Mode) |
| Line Mode Efficiency: |
>95% |
| Thd: |
< 10% |
Product Description
Pure Sine Wave Inverter with Both Linear & Non-Linear Load
Pure Sine Wave Inverter Charger Hanker Power Star Series 1KW-12KW (1ph in/1ph out)

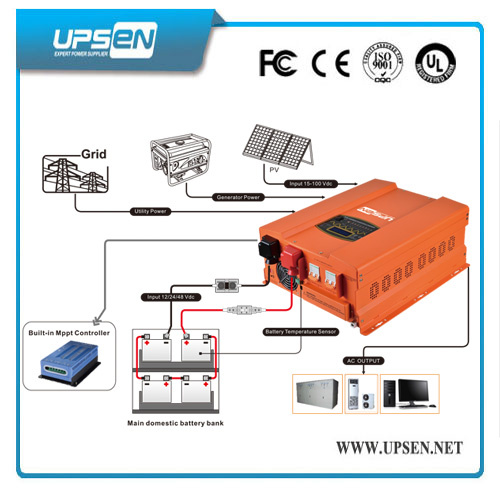

HP Series Pure Sine Wave Inverter is a combination of an inverter, charger, solar power and Auto-transfer switch into one complete system . It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
Feature of HP Series Inverter & Charger
1:Smart Remote Control (RMT)
2:Battery Temperature Sensor (BTS)
3:Automatic Generator Starting (AGS)
4:Support Solar Panel with MPPT Function
5:Designed to Operate under Harsh Environment
6:DC Start & Automatic Self-Diagnostic Function
7:Compatible with Both Linear & Non-Linear Load
8:Easy to Install & Easy to Operate & Easy to Solve
9:Low DC Voltage Supports Home & Office Appliances
Application
Home, office, Solar system and wind system,Emergency lighting equipment,Education System
Medical Equipment,Financial System,Electronic Cash Registers,Communications Equipment etc.
| Technical Specification |
| | Model | HP1K | HP1.5K | HP2K | HP3K | HP4K | HP5K | HP6K | HP8K | HP10K | HP12K |
Inverter
Output | Continuous
Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Surge Rating(20s) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW |
| Output Waveform | Pure Sine wave/Same as input(Bypass Mode) |
Nominal
Efficiency | >88%(Peak) |
Line Mode
Efficiency | >95% |
| Power Factor | 0.9-1.0 |
Nominal Output
Voltage rms | 100-110-120Vac / 220-230-240Vac |
Output Voltage
Regulation | ±10% RMS |
| Output Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
Short Circuit
Protection | Yes( 1sec after fault ) |
Typical
transfer Time | 10ms(Max) |
| THD | < 10% |
DC
Input | Nominal Input
Voltage | 12.0Vdc |
| ( *2 for 24Vdc, *4 for 48Vdc) |
Minimum Start
Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc / 11.0Vdc |
| Low Battery Trip | 10.0Vdc / 10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
Low Battery
voltage recover | 15.5Vdc |
Idle Consumption
-Search Mode | < 25 W when Power Saver On |
| Charger | Output Voltage | Depends on battery type |
Charger
Breaker Rating | 10A | 15A | 20A | 20A | 20A | 30A | 30A | 40A | 40A | 40A |
Max Charge
Power Rate | 1/3 Rating Power |
Battery Initial
Voltage for Start Up | 10-15.7V for 12V( *2 for 24V, *4 for 48V) |
Over Charge
Protection Shutdown | 15.7V for 12V (*2 for 24V, *4 for 48V) |
| Remote Control | Yes(Optional) |
Bypass &
Protection | Input Voltage
Waveform | Sine wave (Grid or Generator) |
| Nominal Voltage | 110Vac | 120Vac | 220Vac | 230Vac |
Max Input
AC Voltage | 150VAC For 120Vac LV Mode;300VAC For 230Vac HV Mode; |
Nominal Input
Frequency | 50Hz or 60Hz (Auto detect) |
| Low Freq Trip | 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz |
| High Freq Trip | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz |
Overload protection
(SMPS load) | Circuit breaker |
Output Short
circuit protection | Circuit breaker |
Bypass breaker
rating | 10A | 15A | 20A | 30A | 40A | 40A | 40A | 50A | 63A | 63A |
Transfer switch
rating | 30amp for UL & TUV | 40amp for UL | 80amp for UL |
Bypass without
battery connected | Yes (Optional) |
| Max bypass current | 30amp | 40amp | 80amp |
Solar
Charger
(Optional) | Rated Voltage | 12Vdc / 24Vdc / 48Vdc |
Solar Input
Voltage Range | 15-30Vdc / 30-55Vdc / 55-100Vdc |
Rated Charge
Current | 40 ~ 60A |
Rated Output
Current | 15A |
| Self Consumption | < 10mA |
| Bulk Charge | 14.5V(default) | (*2 for 24Vdc, *4 for 48Vdc) |
| Floating Charge | 13.5V(default) |
| Equalization Charge | 14.0V(default) |
Over Charge
Disconnection | 14.8V |
Over Charge
Recovery | 13.6V |
Over Discharge
Disconnection | 10.8 V(default) |
Over Discharge
Reconnection | 12.3V |
Temperature
Compensation | -13.2mV/°C |
Ambient
Temperature | 0 ~ 40°C(Full load) 40 ~ 60°C(Derating) |
Mechanical
Spec | Mounting | Wall Mount |
Inverter
Dimensions(L*W*H) | 388*415*200mm | 488*415*200mm | 588*415*200mm |
Inverter
Weight
(Solar Chg)KG | 21+2.5 | 22+2.5 | 23+2.5 | 27+2.5 | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 |
Shipping
Dimensions(L*W*H) | 550*520*310mm | 650*520*310mm | 750*520*310mm |
Shipping Weight
(Solar Chg)KG | 23+2.5 | 24+2.5 | 25+2.5 | 29+2.5 | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 |
| Display | Status LEDs / Status LEDs+LCD |
| Standard Warranty | 3 Years (Optional) |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
