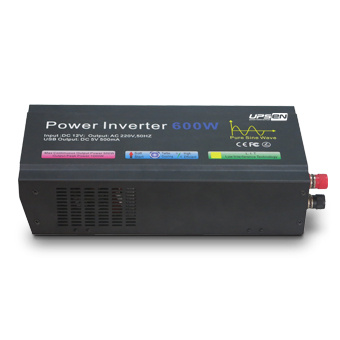

Pure Sine Wave Inverter with High Conversion Efficiency 300W-1000W

Pure Sine Wave Inverter with High Conversion Efficiency 300W-1000W
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Ideal Star Series 300-1000W
Output Frequency: 50/60Hz(Optional)
Waveform: Pure Sine Wave
Output Voltage: 100V/110V/220V/230V/240V(Optional)
Protection: Over Temperature Protection,Short Circuit Protecti

Product Description

Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)

Key Features:
Application
Home, office, Solar.

Technical Specification
ModelIS300IS500IS600IS800IS1000
Rated power300W500W600W800W1000W
Peak power600W1000W1200W1600W2000W
Start methodSoft start
DC inputRated input voltage12V/24V/48V(optional)
AC OutputVoltage100V/110V/220V/230V/240V(optional)
Frequency50HZ/60HZ(optional)
WaveformPure Sine Wave
Maximum DC loads output power110%
Total Harmonic DistortionTHD≤2%
Rated output efficiency>85%
ProtectionHigh input voltage shutdown15.0V, automatically shutdown, alarm twice
Low input voltage shutdown10.0V, automatically shutdown, alarm twice
Low input voltage alarm10.5V, no power off, alarm once
Over temperature protectionWhen the temperature of internal heat sink is above 80ºC,it will shutdown automatically and alarm three times
Short circuit protectionShutdown, alarm five times, restart automatically
Overload  protectionShutdown, alarm four times, restart automatically
Reverse InputQuick-break fuse
EnvironmentTemperature-10 - 40ºC
Humidity0%-95%
Noise of the fan<55dB
Insulation resistanceEN50081-1/EN55022
Insulating strengthEN50081-1/EN55022
Weight (Kg)1.161.923
Size W*D*H(mm)235*115*65295*132*72320*185*72
*Specifications are subject to change without prior notice.
