| Prod Model: |
power inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Frequency: |
60±1Hz /50±1Hz |
| Advantage: |
Wide Application, Cost Saving |
| Short Circuit Protection: |
Have |
| Color: |
Black, White.Blue |
Product Description

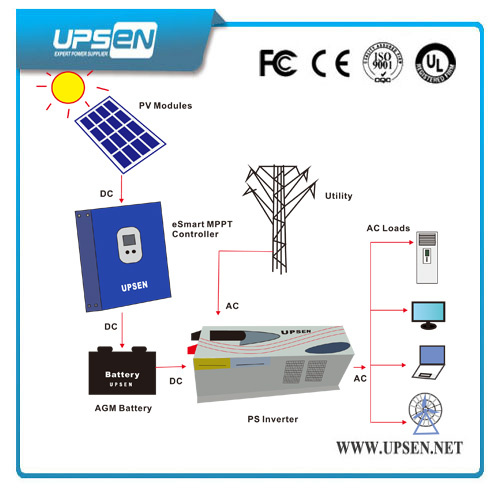

Pure sine wave inverters 3000W 12V/24V/48V with MPPT function
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Application
UPSEN Power Star Series Inverter can be used for various home appliances, Computer room
,Data center,Intelligent equipment,Alarm Systems,Cable Television,Medical Equipment etc.
Key Features
1:Accept generator's energy output
2:Microprocessor control guarantees high reliability
3:Automatically transfer between battery and line modes
4:DC Start & Automatic Self-Diagnostic Function
5:Fast and powerful charger with 35A and 70A
6:Over-load & Output short circuit protection: circuit breaker
7:High efficiency up to 95% under line mode, and 88% for Battery Mode
8:High Efficiency Design & "Power Saving Mode" to Conserve Energy
9:LED indicates and alarms the working status, also has remote control solution.
10:Output are pure sine wave same as the mains power, never harm to any load
11:PFC(Power Factor Correction) for charger, less power consumption than conventional units
12:Small and light: With the technology of CPU centralized control and SMD inside, the product is very small and light.
Tecnichina Specification
| Power Star Series |
Model No. |
PS1000 |
PS2000 |
PS3000 |
PS4000 |
PS5000 |
PS6000 |
Nominal Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC Input |
Waveform |
Pure Sine Wave |
Voltage |
120VAC/230VAC |
Acceptable Voltage |
194-243VAC164-243VAC(wide mode) |
Line Low Transfer |
85V±4%/184(154 wide mode±4%) |
Line Low Return |
95V±4%/194(164 wide mode±4%) |
Line high Transfer |
135V±4%/253±4% |
Line high Return |
127V±4%/243±4% |
Frequency |
50Hz or 60Hz (Auto sensing) |
Line Low Transfer |
47Hz for 50Hz, 57Hz for 60Hz |
Line high Transfer |
55Hz for 50Hz, 65Hz for 60Hz |
AC Output |
Waveform |
Pure Sine Wave(bypass mode sync to input) |
Voltage |
120/220/230/240VAC(bypass mode sync to input) |
Voltage Regulation |
±10%rms(bypass mode sync to input) |
Frequency |
50Hz±0.3Hz(bypass mode sync to input) |
Peak Power |
3 times of rating power |
Short Circuit Protection |
Yes,shutdown after 10ms |
Power Factor |
0.9-1.0 |
DC Input |
Battery Voltage |
12V/24V |
12V/24V/48V |
24V/48V |
Minimum Start Voltage |
10V for 12V,20V for 24V,40V for 48V |
Low Battery Alarm |
10.5V for 12V,21V for 24V,42V for 48V |
Low Battery Transfer |
10V for 12V,20V for 24V,40V for 48V |
High Voltage Alarm |
16V for 12V,32V for 24V,64V for 48V |
Max Charging Current |
35A/70A |
Over Charge Voltage |
15.7V for 12V,31.4V for 24V,62.8V for 48V |
Transfer Efficiency |
Line Mode |
>95% |
Battery Mode |
>88% |
power saver |
Available when the load is less than 25 Watts |
Indicators |
7-LED Display |
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged |
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded |
shutdown (red lighting) ,LED7 Saving Mode (green lighting) |
3-LED Display |
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) |
Switch selector |
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
Protections |
low battery,over charging,over temp,over load |
Communications |
RS-232/USB(custom-made) |
Enviromental |
Operating Environment |
0-40ºC,0-90%RH(non-condensing) |
Audible Noise |
<60dB |
Physical | | | | | | |
Net Weight(KG) |
18 |
20 |
22 |
35 |
38 |
40 |
Dimension L*W*H(mm) |
442*218*179mm |
598*218*179m |
* Specification is subject to change without prior notice.
Competitive Advantages:
1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
