Product Description

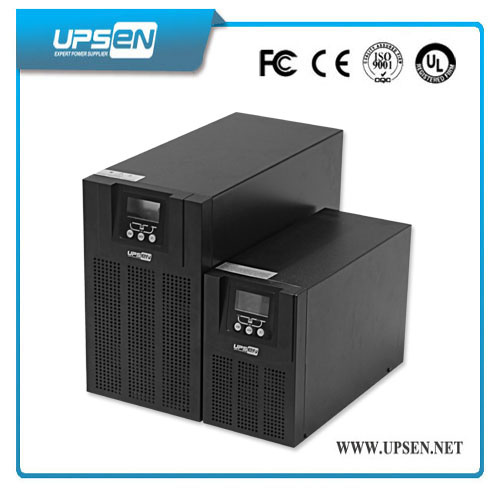

Pure Sine Wave Long Time Backup UPS for Computers
Model: High Frequency Online UPS Queen Star Series 1K-20Kva (1ph in / 1ph out) or (3ph in / 1ph out)
Key Features:
1.Cold start(DC power on)
2.Microprocessor control guarantees high reliability
3.Equipped with Boost and Buck AVR to stabilize input voltage
4.Standard backup UPS and long backup UPS in one integrated unit
5.Smart RS232 (USB, Dry contact, SNMP card optional)
6.ECO function, Economic function (Optional)
7.Compact design and less noise
8.Superior loading characteristics
9.High power dynamic performance
10.Output power factor 0.8,offering more stronger load capability
11.Protecton against over voltage, over load, over current, over charge etc.
12.Online double conversion with DSP control With excellent performance and comprehensive protections for load and UPS
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency |
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode) |
On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
| |
| |
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
