| Prod Model: |
IG3115CL 1-12KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Waveform: |
Sinusoidal (Utility or Generator) |
| Nominal Input Voltage: |
230VAC |
| Low Line Disconnect: |
184VAC± 4% |
| High Line Disconnect: |
253VAC± 4% |
| Max AC Input Voltage: |
270vrms |
| Nominal Input Frequency: |
50Hz/ 60Hz (Auto Detection) |
| Over-Load Protection (SMPS Load): |
Circuit Breaker |
| Output Short Circuit Protection: |
Circuit Breaker |
| Transfer Switch Rating: |
30A |
| Transfer Time (AC To DC): |
20ms (Typical) |
Product Description

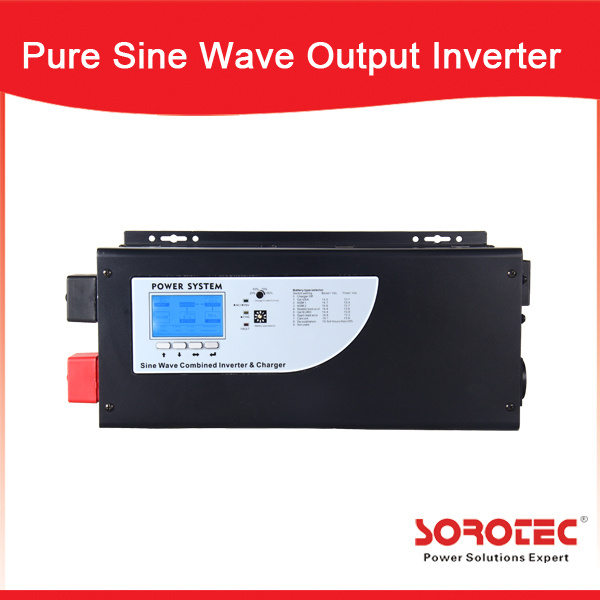

Pure Sine Wave Output 3000 Watt Pure Sine Wave Power Inverter
Key Features:
1. Pure sine wave output
2. The charging current is big up to 70 Amp
3. Output power factor is 0.9-1
4. Well accept generator's output
5. Full automatical and silent operation
6. Automatically transfer between battery and line modes
7. Microprocessor control guarantees high reliability
8. Remote control function
9. Four-steps intelligent charging control to recharging time
10. Bypass and bypass voltage regulation function
Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)
Specifications:
1.Dry contact
2.Inverter output protect
3.Charge input protect
4.RS232
5. Intelligent slot
6. Remote port
7. Pure sine wave output
Product Description
Technical Specification of Pure Sine Wave Inverter IG3115 Series:
| MODEL | IG3115CL 1-12KW Pure Sine wave Output Inverter |
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Input Wave form | Sine wave (utility or generator) |
| Nominal Voltage | 230Vac (120Vac optional) |
| Low voltage trip | 90v ±4% & 184v/154v ±4% |
| Low voltage re engage | 100v ±4% & 194v/164v±4% |
| High voltage trip | 140v ±4% & 253v ±4% |
| High voltage re engage | 135v ±4% & 243v±4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) |
| Frequency range | 47Hz~65Hz |
| Output Wave form | (Bypass mode)same as input |
| Efficiency on line transfer mode | ≥95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | Yes |
| Inverter specification/output |
| Output wave form | Pure sine wave |
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Power factor | 0.9-1.0 |
| Nominal Output Voltage rms | 230Vac (120Vac optional) |
| Output Voltage regulation | +/- 10%rms |
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Safety Certification | >88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 | 30000 | 36000 |
| Short circuit protection | Yes,fault after 1 secs |
| Inverter specification/input |
| Nominal input voltage | 12V/24V/48V | 96V |
| Minimum start voltage | 10V/20V/40V | 80V |
| Low battery alarm | 10.5V/21V/42V | 84V |
| Low battery trip | 10V/20V/40V | 80V |
| High voltage alarm | 16V/32V/64V | 128V |
| Power saver | Same switched on/off on remote |
| Charger mode specification |
| Output voltage | Dependent on battery type |
| Charge current | 0-85A MAX | 35A MAX | 45A MAX | 50A MAX |
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Charger curves(4stage constant curren) | battery types |
| 4 step digital controlled progressive charge |
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) |
| Gel U.S.A | 14 13.7 |
| A.G.M. 1 | 14.1 13.4 |
| A.G.M. 2 | 14.6 13.7 |
| Sealed lead acid | 14.4 13.6 |
| Gel euro | 14.4 13.8 |
| Open lead acid | 14.8 13.3 |
| Calcium | 15.1 13.6 |
| De-sulphation | 15.5 for 4 hrs |
| Remote control/RS232/USB | Yes. Optional |
