| Prod Model: |
IG3115CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage Waveform: |
Sine Wave |
| Transfer Switch Rating: |
30A |
| Efficiency (Line Mode): |
> 95% |
| Output Short Circuit Protection: |
Circuit Breaker |
| Over-Load Protection (SMPS Load): |
Circuit Breaker |
| Nominal Input Frequency: |
50Hz/ 60Hz (Auto Detection) |
| Max AC Input Voltage: |
270vrms |
| High Line Disconnect: |
253VAC± 4% |
| Low Line Disconnect: |
184VAC± 4% |
| Nominal Input Voltage: |
230VAC |
Product Description

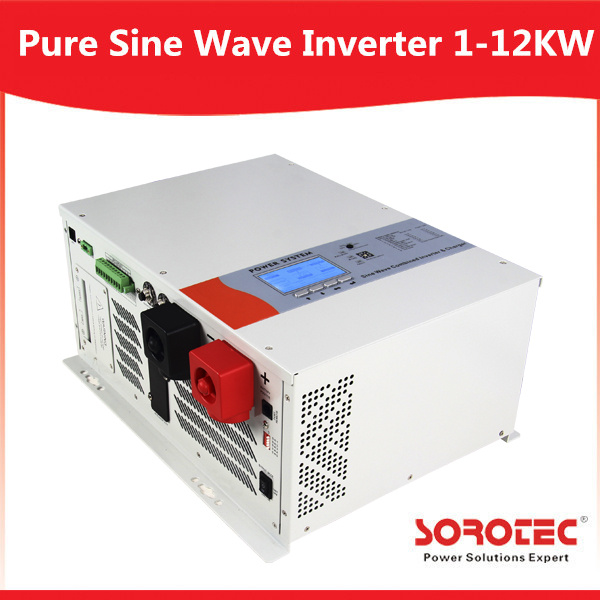

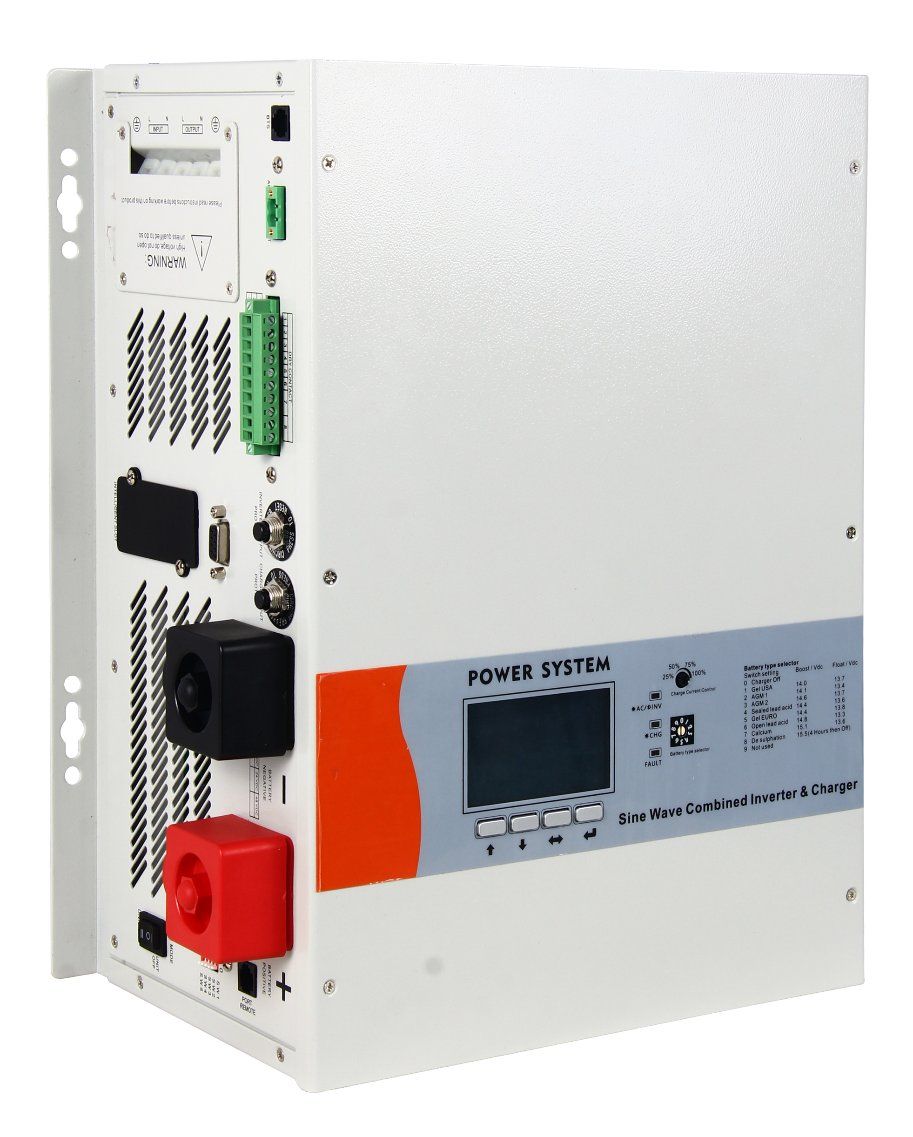

Pure Sine Wave Output Inverter 1-12KW Used for Electric fanKey Features:1. Pure Sine wave Output
2. The charging current is big up to 70 A
3. Output Power Factor is 0.9-1
4. Auto change AC-DC
5. Full automatic and silent operation
6. Automatically transfer between battery and line modes
7. Microprocessor control guarantees high reliability
8. Remote control function
9. Four-steps intelligent charging control to recharging time
10. Bypass and bypass voltage regulation function
11. Could be setting frequency by LCD display for 50hz or 60hz
Applications:Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)
Technical Specification of Pure Sine Wave Inverter IG3115 Series:| MODEL | IG3115C 1000-6000W |
| 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac± 4% |
| High Line Disconnect | 253Vac± 4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
Over-Load Protection
(SMPS load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | > 95% |
| Transfer Switch Rating | 30A |
Transfer Time
(Ac to Dc) | 20ms (typical) |
| Output Voltage Waveform | Sine wave |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Output Voltage Regulation | ± 10% rms |
| Nominal Efficiency | > 80% |
| Surge Ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Nominal DC Input Voltage | 12/24 | 12/24 | 12/24 | 24/48 | 24/48 | 24/48 |
| Nominal Charge Current | 35/20A | 65/35A | 75/45A | 65/35A | 70/40A | 75/50A |
| Charge Current Regulation | ± 5Adc |
| Batteryinitial voltage | 0 - 15.7 Vdc (can operate with 0V battery) |
| Communication: | RJ11 (Used for factory testing. No customer interface available) |
| Safety Certification | Compliance with UL458 | CE(EN60950) |
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A |
| Operating Temperature Range | 0° Cto 40° C |
| Storage temperature | -15º C ~ 60º C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 4000/5000/6000 Model: 598*218*179 |
| Net Weight: | 18KG | 20KG | 22KG | 35KG | 45KG | 45KG |
| Wooden case | 28.5KG | 28.5KG | 30.5KG | 48KG | 58KG | 58KG |
