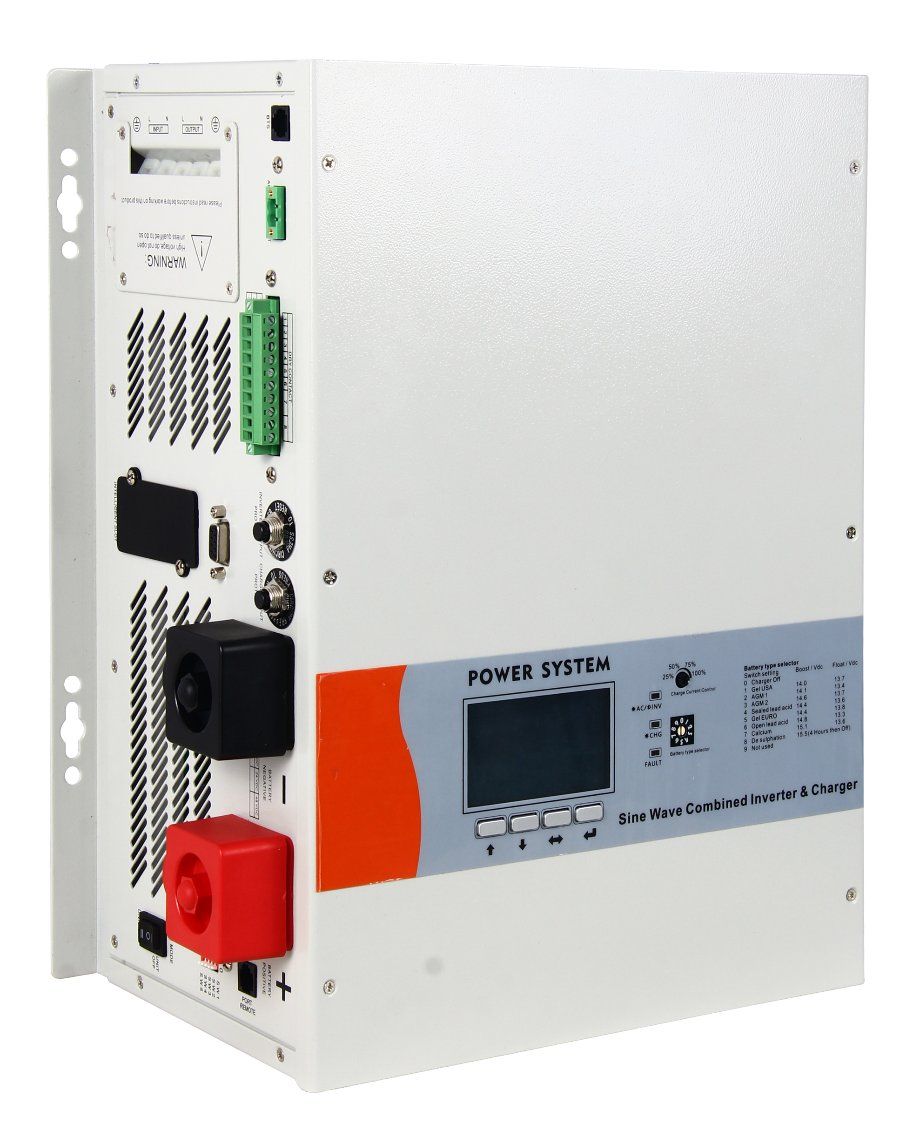

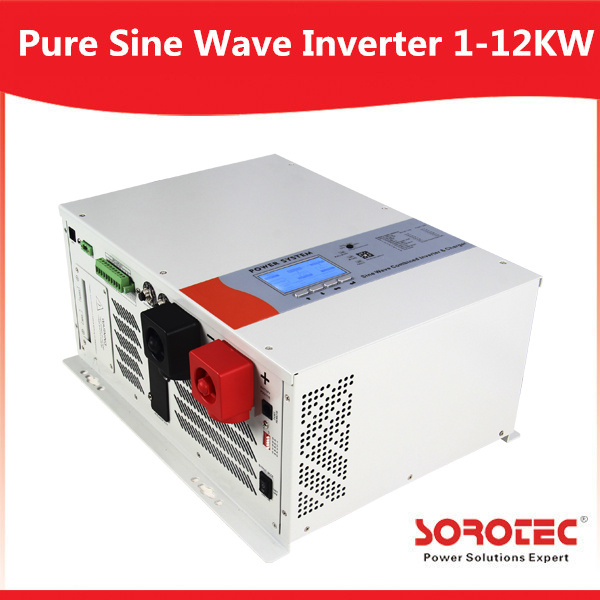

Pure Sine Wave Output Solar Inverter with LCD Display

Pure Sine Wave Output Solar Inverter with LCD Display
Price: Negotiable/Piece
Trade Terms: FOB,others
Min Order: 2/Piece
Pay Type: L/C,T/T
Prod Model: IG3115C Series 1 - 6KW
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection: Overvoltage

Product Description

 Pure Sine Wave Output Solar Inverter with LCD Display
Key Features
Pure Sine wave Output
The charging current is big up to 70 A
Output Power Factor is 0.9-1
Auto change AC-DC
Full automatic and silent operation
Rack Tower design
Automatically charging
Automatically restart
Two-steps intelligent charging control to recharging time
Applications
Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)

Technical Specification of Pure Sine Wave Inverter IG3115 Series:
MODELIG3115E 1000-6000W
1000W2000W3000W4000W5000W6000W
Input Voltage WaveformSinusoidal (utility or generator)
Nominal Input Voltage230Vac
Low Line Disconnect184Vac± 4%
High Line Disconnect253Vac± 4%
Max AC Input Voltage270Vrms
Nominal Input Frequency50Hz/ 60Hz  (Auto detection)
Over-Load Protection
(SMPS load)
Circuit breaker
Output Short Circuit ProtectionCircuit breaker
Efficiency (Line Mode)> 95%
Transfer Switch Rating30A
Transfer Time
(Ac to Dc)
20ms (typical)
Output Voltage WaveformSine wave
Power Factor0~1.0
Nominal Output Voltage (V)230Vac
Output Voltage Regulation± 10% rms
Nominal Efficiency> 80%
Surge Ratings300060009000120001500018000
Nominal DC Input Voltage12/2412/2412/2424/4824/4824/48
Nominal Charge Current35/20A65/35A75/45A65/35A70/40A75/50A
Charge Current Regulation± 5Adc
Batteryinitial voltage0 - 15.7 Vdc (can operate with 0V battery)
Communication:RJ11 (Used for factory testing. No customer interface available)
Safety CertificationCompliance with UL458CE(EN60950)
EMI ClassificationFCC, CLASS AEN50091-2, CLASS A
Operating Temperature Range0° Cto 40° C
Storage temperature-15º C ~  60º C
Operation humidity5% to 95%
Audible Noise60dB max
CoolingForced air, variable speed fan
Size: in mm1000/2000/3000 Model: 442*218*179   4000/5000/6000 Model: 598*218*179
Net Weight:18KG20KG22KG35KG45KG45KG
Wooden case28.5KG28.5KG30.5KG48KG58KG58KG


Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.

Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.

The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
