Pure Sine Wave Solar Inverter 1kw
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description
CNS112 1-6KW InverterCNS112 series Pure Sine Wave Inverter Charger 1000W-6000W, LED/LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

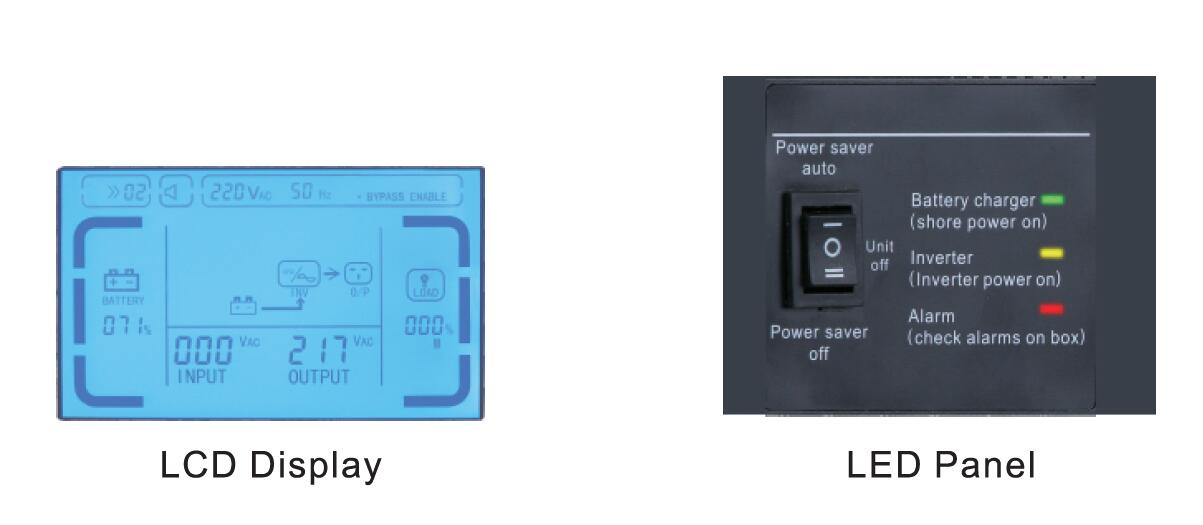

Main Features:1.LED/LCD digital display show voltage, load and battery info in real time.2.Peak power is three times of rated power.3.Can work with inductive load such as air conditioner, motor door and so on.4.Pure sine wave output, available for sensitive load. 5.4-step progressive charging, 7 battery type selector. 6.Fast and powerful charger with 35A and 75A/90A. 7.Accept generator's energy output. 8.High power factor 0.9, low power consumption. 9.Automatically transfer between battery and line modes. 10.Microprocessor control guarantees high reliability. 11.Bypass without battery connected. 12.Remote control function. 13.Protection against: Over load, over temperature, over charging, low battery 14.Reverse connection (optional by hard connector), Blackouts
Technical specifications:| MODEL | CNS112-1KW | CNS112-1.5KW | CNS112-2KW | CNS112-3KW | CNS112-4KW | CNS112-5KW | CNS112-6KW |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input |
Phase &
waveform | Single phase & Pure Sine Wave |
| Voltage | 110/120/130VAC or 220/230/240VAC |
| Acceptable Voltage | 95-126VAC or 194-253VAC±4% |
| Low Line Disconnect | 85VAC±4% or 184VAC±4% |
| Low Line Re-connect | 95VAC±4% or 194VAC±4% |
| High Line Disconnect | 136VAC±4% or 263VAC±4% |
| High Line Re-connect | 126VAC±4% or 253VAC±4% |
| Frequency | 50Hz:41-54Hz 60Hz:51-64Hz |
| AC Output |
| Phase & waveform | Single phase & Pure Sine Wave (bypass mode sync to input) |
| Voltage | 110/120/130VAC or 220/230/240VAC±10%rms (bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz 60Hz±0.3Hz (bypass mode sync to input) |
| Peak Power | 3 times of rating power |
Short Circuit
Protection | Yes, shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12VDC or 24VDC or 48VDC |
Minimum Start
Voltage | 10VDC or 20VDC or 40VDC |
| Low Battery Alarm | 10.5±0.3vdc or 21±0.6vdc or 42±1.2vdc |
Low DC input
Shut-down | 10±0.3vdc or 20±0.6vdc or 40±1.2vdc |
| High DC input Alarm & Fault | 16±0.3vdc or 32±0.6vdc or 64±1.2vdc |
High DC input
Recovery | 15.5±0.3vdc or 31±0.6vdc or 62±1.2vdc |
MAX Charger
Current | 20A/35A/ 50A/75A/90A(According to the Inverter model) |
| System parameter |
Battery Mode
Efficiency | >85% |
Line Mode
Efficiency | >96% |
| power saver | Load <=25W (Enabled on "P/S auto" setting of Remote control) |
| Audible Alarm | Sounding when the heat sink's tem is over 100ºC and shutdown after 30 seconds. |
Over Load
Protection | 110%
Load>150%, beeps 0.5s every 1s, and Fault after 20s. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB/SNMP(custom-made) |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Net Weight(KG) | 16kg | 18kg | 20kg | 25kg | 39kg | 42kg | 49kg |
| Dimension L X W X H | 470 X223 X185mm | 650 X223 X185mm |
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.
We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
