| Prod Model: |
IG3115C 1-6KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Waveform: |
Sinusoidal (Utility or Generator) |
| Nominal Input Voltage: |
230VAC |
| Low Line Disconnect: |
184VAC± 4% |
| High Line Disconnect: |
253VAC± 4% |
| Max AC Input Voltage: |
270vrms |
| Over-Load Protection (SMPS Load): |
Circuit Breaker |
| Efficiency (Line Mode): |
> 95% |
| Transfer Switch Rating: |
30A |
| Power Factor: |
0~1.0 |
| Nominal Efficiency: |
> 80% |
Product Description

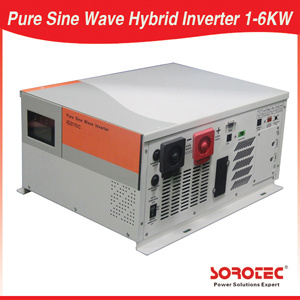

Pure sine wave solar inverter onduleue 1-6kw
Key Features:
1.Pure sine wave output
2.The charging current is big up to 70 Amp
3.Output power factor: S 0.9-1
4.Well accept generator's output
5.Full automatical and silent operation
6.Automatically transfer between battery and line modes
7.Microprocessor control guarantees high reliability
8.Remote control function
9.Four-steps intelligent charging control to recharging time
10.Bypass and bypass voltage regulation function
11.Could be setting frequency by LCD display for 50hz or 60hz
Full protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,
protection for thunder striking,provide the reliable power to the home appliances.
Applications:
Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
SOROTEC all the inverter series :
Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)
Technical Specification of Pure Sine Wave Inverter IG3115 Series:
| MODEL | IG3115C 1000-6000W |
| 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac± 4% |
| High Line Disconnect | 253Vac± 4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
Over-Load Protection
(SMPS load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | > 95% |
| Transfer Switch Rating | 30A |
Transfer Time
(Ac to Dc) | 20ms (typical) |
| Output Voltage Waveform | Sine wave |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Output Voltage Regulation | ± 10% rms |
| Nominal Efficiency | > 80% |
| Surge Ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Nominal DC Input Voltage | 12/24 | 12/24 | 12/24 | 24/48 | 24/48 | 24/48 |
| Nominal Charge Current | 35/20A | 65/35A | 75/45A | 65/35A | 70/40A | 75/50A |
| Charge Current Regulation | ± 5Adc |
| Batteryinitial voltage | 0 - 15.7 Vdc (can operate with 0V battery) |
| Communication: | RJ11 (Used for factory testing. No customer interface available) |
| Safety Certification | Compliance with UL458 | CE(EN60950) |
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A |
| Operating Temperature Range | 0° Cto 40° C |
| Storage temperature | -15º C ~ 60º C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 4000/5000/6000 Model: 598*218*179 |
| Net Weight: | 18KG | 20KG | 22KG | 35KG | 45KG | 45KG |
| Wooden case | 28.5KG | 28.5KG | 30.5KG | 48KG | 58KG | 58KG |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
