| Prod Model: |
PS Series 1KW-12KW |
| Color: |
Black or Blue |
| Delivery Time: |
in Stock |
| Power Factor: |
1.0 |
| Capacity: |
1000 Watts-6000 Watts |
| Waveform: |
Pure Sine Wave |
| Input Voltage: |
110/120VAC/220/230/240VAC |
| Frequency: |
50Hz or 60Hz |
| Batteryvoltage: |
12/24/48VDC |
| Communications: |
RS-232/USB(Custom-Made) |

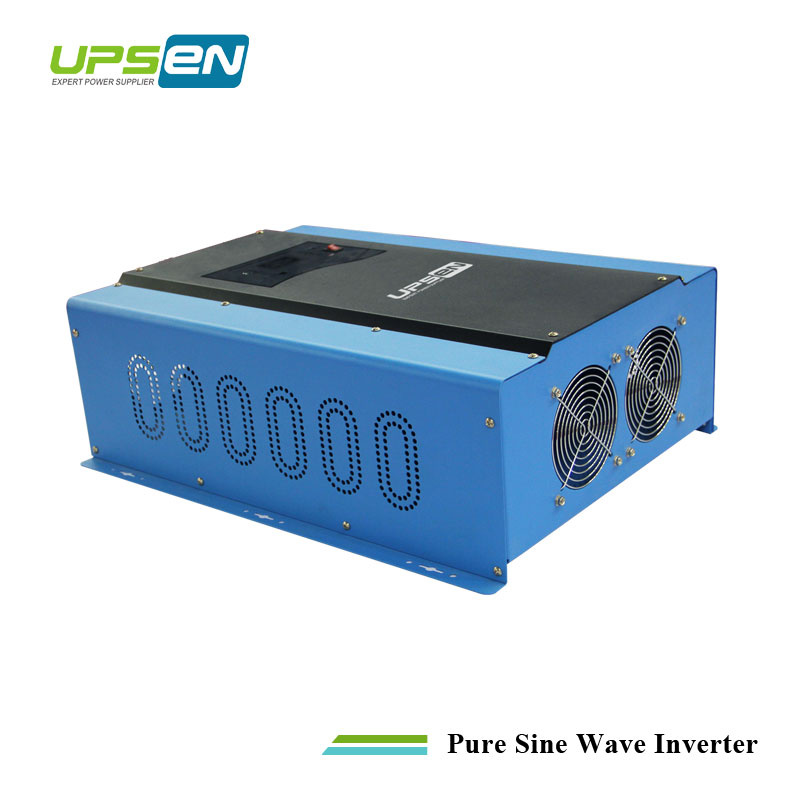

Product Description
Pure Sine Wave Power Inverter with UPS Function for TV, Light, AC, Fan, Bulb and Fridge Use 12/24/48VDC Quick View1:Pure Sine Wave Low frequency Inverter built-in AC Charger
2:Power Star W7 Inverter is low frequency Inverter
3:Inverter with pure sine wave output
4:Power Star W7 Inverter with two colors
Inverter Key Features
1: Pure sine wave output (THD< 3%), available for sensitive loads
2: High efficiency up to 95% under line mode, and 88% for Battery Mode
3: Fast and powerful charger with 35A and 70A
4: Automatically transfer between battery and line modes
5: Microprocessor control guarantees high reliability
6: Bypass without battery connected
7: Remote control function
8: Protection against: Over load, over temperature, over charging, low battery
9: Reverse connection(optional by hard connector)
10: Blackouts
11: 4-step progressive charging, 7 battery type selector
12: Accept generator's energy output
Inverter Application
UPSEN Power Star Series Inverter can be used for various home appliances, office equipment,
Solar power system, and other equipments which use single phase power
Technical Specification| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |

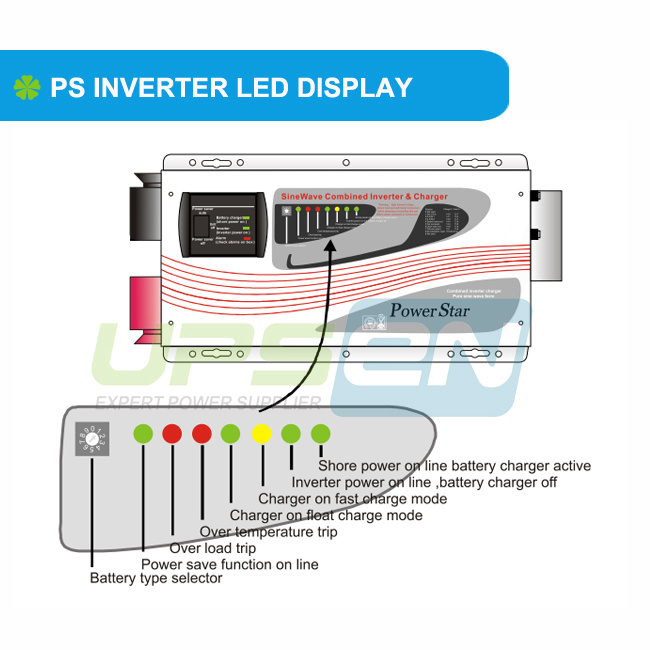

| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards,
keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension,L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
