| Prod Model: |
GR11-2KVA |
| Product Feature: |
Pure Sine Wave UPS |
| Install Type: |
Rack Mount and Tower Transferable |
| Power Capacity: |
1600W |
| Transfer Time: |
0 Ms |
| Power Factor: |
0.9 |
| Certificate: |
Ce |
| Warrenty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Application: |
Computer Server |
Product Description

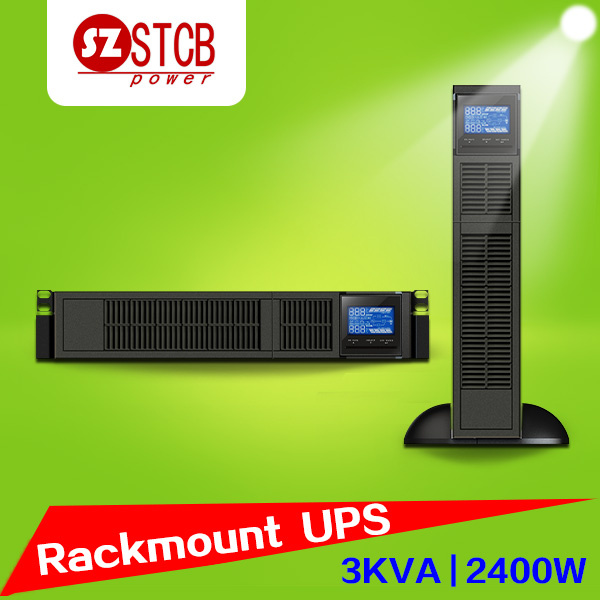

High Quality Rack Mount UPS 3kVA with battery
Product Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Output power factor correction
4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Emergency power off function(EPO) only available for 6K/10K models
Comprehensive display allows easy monitoring access of UPS status
Specification:
| Model | GR11-1K(L) | GR11-2K(L) | GR11-3K(L) |
| Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Range | 55-145VAC or 110-300VAC at 50% load
85-140VAC or 160-280VAC at 100% load |
| Frequency | 40-60Hz / 50-70Hz |
| Power Factor | 0.99 |
| Output | Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ±1% |
Frequency Range
(Synchronized Range) | 47-53HZ or 57-63HZ |
Frequency Range
(Batt. Mode) | 50HZ±0.25HZ or 60HZ±0.3HZ |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤3% THD(Linear load) ≤6% THD(Non-linear load) |
| Transfer Time | 0ms |
| Wave Form | Pure Sinewave |
| Efficiency | AC Mode | 92% | 94% | 97% |
| Battery Mode | 88% | 91% | 96% |
Battery
(Standard Model) | Battery Type | 12V9AH | 12V9AH | 12V9AH |
| Numbers | 2PCS | 4PCS | 6PCS |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current | 1A |
| Charging Voltage | 27.4VDC ± 1% | 54.7 VDC ±1% | 82.1 VDC ±1% |
Battery
(Long-run Model) | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| Indicators | LCD Panel | UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
| Alarm | Battery Mode | Sounding every 4 seconds |
| | Low Battery | Sounding every second |
| | Overload | Sounding twice every second |
| | Fault | Continously sounding |
Physical
(Standatd Model) | Dimension(mm) | 310*438*88(2U) | 410*438*88(2U) | 630*438*88 |
| Net Weight(kgs) | 12 | 19 | 29.3 |
Physical
(Long-run Model) | Dimension,D*W*H(mm) | 310*438*88(2U) | 410*438*88(2U) |
| Net Weight(kgs) | 9 | 12 | 14.2 |
| Environment | Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| Management | Smart RS232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8,
Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
