| Prod Model: |
Online UPS HP9117C 0.7-3KVA |
| Product Name: |
High Frequency Online UPS |
| Wavefom: |
Pure Sine Wave |
| Capacity: |
0.7-3kVA |
| Power Factor: |
0.9 |
| DC Voltage: |
24/36/48/96VDC |
| Applications: |
Personal Computer |
| Input Phase: |
Single Phase |
| Flexible Installation: |
Rack-Tower Convertion |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description
Online UPS 100/110/120V with Pure Sinewave UPS and Online UPSProduct Parameter:Output power factor: 0.9
Configuration: Rack mount or Tower
Product Rating: 1000 to 3000VA
Voltage: 100-120V or 220-240V
Frequency: 50/60Hz(auto-sensing)
Key Features:1.Protects against downtime, data loss and process interruption by providing continuous, clean power
2.Offers premium performance with a 0.9 power factor and >95 percent efficiency
3.Increases battery service life and system uptime with ABM battery charging technology
4.Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical system or processes
5 Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space.
6.Enhanced monitoring and configuration capability through easily navigated multilingual graphical display
7.Optional language by LCD display(multilingual: English, Russian, German, French, Spanish)
Technical Specifications:| Model | HP9117C 0.7-3KVA |
0.7KT/
0.7KR | 0.7KT-XL/
0.7KR-XL | 1KT/
1KR | 1KT-XL/
1KR-XL | 1.5KT/
1.5KR | 1.5KT-XL/
1.5KR-XL | 2KT/
2KR | 2KT-XL/
2KR-XL | 3KT/
3KR | 3KT-XL/
3KR-XL |
| Capacity | 0.7KVA/0.63KW | 1KVA/0.9KW | 1.5KVA/1.35KW | 2KVA/1.8KW | 3KVA/2.7KW |
| Nominal Voltage | 100/110/120/127VAC or 200/208/220/230/240VAC |
| Nominal Frequency | 50/60 Hz |
| Input |
| Voltage Range | 60-138VAC or 115-276VAC |
| Frequency Range | 50HZ:(46~54HZ);60HZ:(56HZ~64HZ) |
| Power Factor | >0.98 |
| Output |
| Voltage Precision | 100/110/120/127VAC 2%) or 200/208/220/230/240VAC (±2%) |
| Frequency Precision | 50Hz/60Hz±0.05Hz |
| Power Factor | 0.9 |
| Harmonic Distortion | Linear Load<3% Non-Linear Load<5% |
| Overload Capacity | 100%~102% overload warning;102%~129% 12s; 130%~149% 2s; ≥150% 100ms |
| Current Crest Ratio | 3:1 |
| Transfer Time | 0ms AC→DC
(±) |
| Battery |
| DC Voltage | 24VDC | 36VDC | 48VDC | 96VDC | 96VDC |
| Recharge Time | 5 hours to 90%(it mean standard model which battery inside the UPS) |
| Charge Current | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A |
| Panel Display |
| LCD | UPS status, input/output voltage and frequency, battery voltage, capacity, load, temperature, history records |
| Language | English, French, German, Russian, Spanish |
| Communications |
| Communications Interface | Optional: SNMP card,AS400 card or the CMC provide software, EPO ,USB port |
| Working Environment |
| Temperature | 0 40ºC |
| Relative Humidity | 0 95% (Non-condensing) |
| Storage Temperature | -25ºC 55ºC |
| Elevation | <1500 m |
| Noise Level(1m ) | <45dB | <50dB |
| Physics Characteristic |
Weight
(KG) | N.W | 13 14 | 9 10 | 15 16 | 8.5 9 | 18 18.5 | 10 10.5 | 33 10.5 | 16.5 11.5 | 34 11.5 | 17 12.5 |
| G.W | 15 16 | 11 13 | 17.5 17.5 | 11 11.5 | 20 20.5 | 12 12.5 | 35 12.5 | 18.5 13.5 | 36 13.5 | 19 14.5 |
| Dimensions: ( Wx D x H )mm | |
| Main unit(Tower) | 158X355X250 | 158X385X250 | 158X433X250 | 220X410X345 | 220X410X345 |
| Main unit(Rack mount) | 482.6X450X89(2U) |

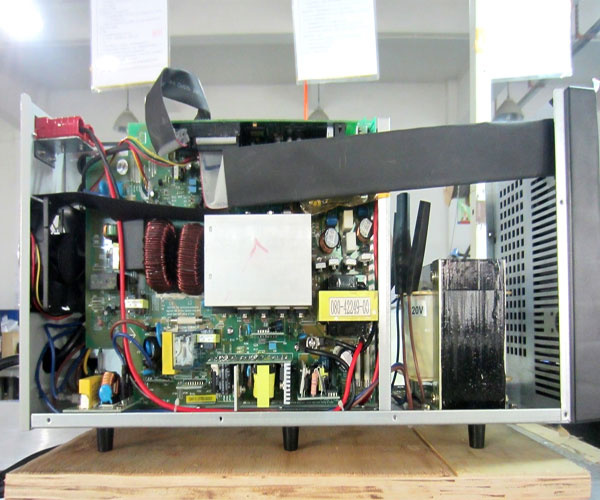

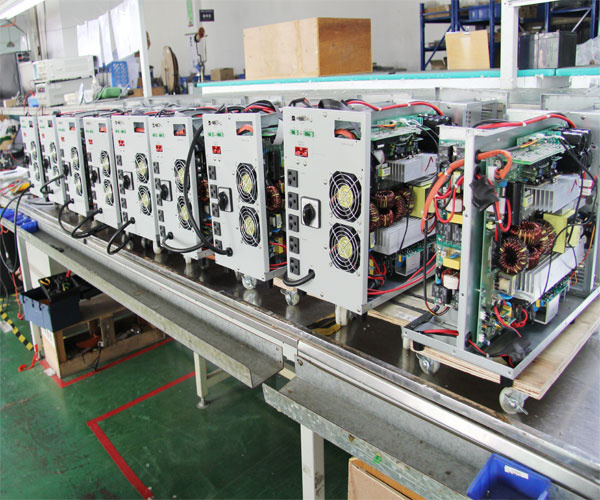

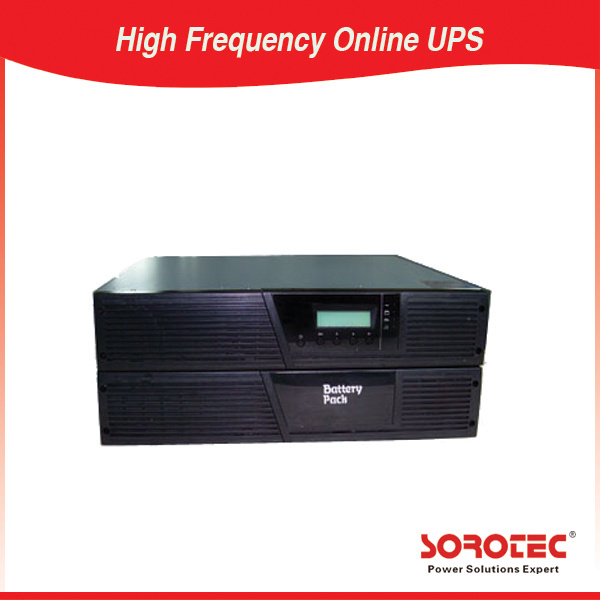

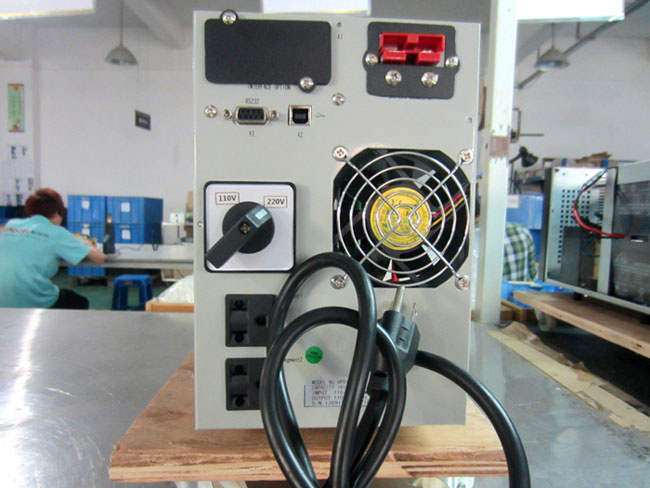

Product Show:
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
