| Prod Model: |
MS2-D4F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connect Forms: |
Spst-Nc |
| Ratings: |
3A Z50VAC /5A 125VAC |
| Operating Force: |
0.5n |
| Usage: |
Control Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
Composite |
Product Description
Specifications

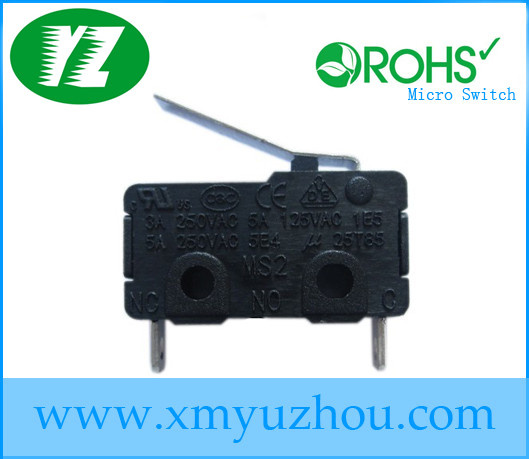

Micro Switch
1. UL, VDE, CE, CQC approved
2. RoHS compliant
3. Safe and reliable
4. Long life
Micro Switch
Micro Switch Features:
1. Safe re liable basic switch
2. Nice appearance, tightconfiguration, characteristic, quick action and high sensitivity
3. Long life, high rdliability
4. Variety of contact terminals
5. Variety of levers
|
Item |
Value |
|
Operating Speed |
0.1mm~1m/s(Related with actuator forms) |
|
Operating Frequency |
Mechanical 60 cycles/min; Electrical 30 cycles/min |
|
Insulation Resistance |
≥ 100 MΩ (500VDC) |
|
Contact resistance |
OF> 0.5N: ≤ 30mΩ (see note)
OF≤ 0.5N: ≤ 50 mΩ (see note) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V, 50/60Hz, 1min |
Between current-carrying metal
And ground(case), and between
Each terminal and non-carrying
metal parts |
AC1500V, 50/60Hz, 1min |
|
Vibration resistance |
10-55Hz, 1.5mm Double amplitude |
Shork Resistance |
Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max
OF< =0.5N: 500m/s ² (approx. 50G)max
Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max
OF< =0.5N: 200m/s ² (approx. 20G)max |
|
Life Expectancy |
Mechnical> =1000000 cycles
Electrical> =50000 cycles |
|
Degree of protection |
IEC IP40 |
|
Degree of protection against electric shock |
Class I |
|
PTI(Tracking Resistance) |
175 |
|
Ambient air temperature |
-25~+85Degree60%RH below(No ice and dew) |
|
Ambient air humidity |
85% RHbelow(about +5~+35 Degree) |
|
Weight |
Approx. 1.6g(No lever) |
Notes: Shows the operating force of no lever
Model Specs naming and meaning
|
Degree of temperature |
No mark: 25T85 |
6. Operating Force
(max)
|
050: 0.5N
100: 1N
150: 1.5N
200: 2N
300: 3N |
|
3.
Connect Forms |
Z: SPDT
T: SPST-NO
D: SPST-NC
(See Diagram) |
|
7. Plunger specs |
No mark: Standard Plunger
A: Short Plunger
B: Long Plunger
C: Abnormality Plunger
( see dirgram )
Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) |
|
4.
Acuator Forms |
0: No lever
1: Short lever
2: Long lever
3: Middle lever
4: Short Roller
5: Long Roller
6: Arc lever
Note:
Indicate not standard lever |
|
8. Additional Specis Numbers
Apply to:
|
1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement
3) When the case is mot black, for example, grey shows as G.
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
|
5.
Terminal Type |
F: Solder terminal
P: PCB terminal
L: Left side PCB terminal
R: Right side PCB terminal
T: Quick-connect terminal
Y: Not standard terminal |
|
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
