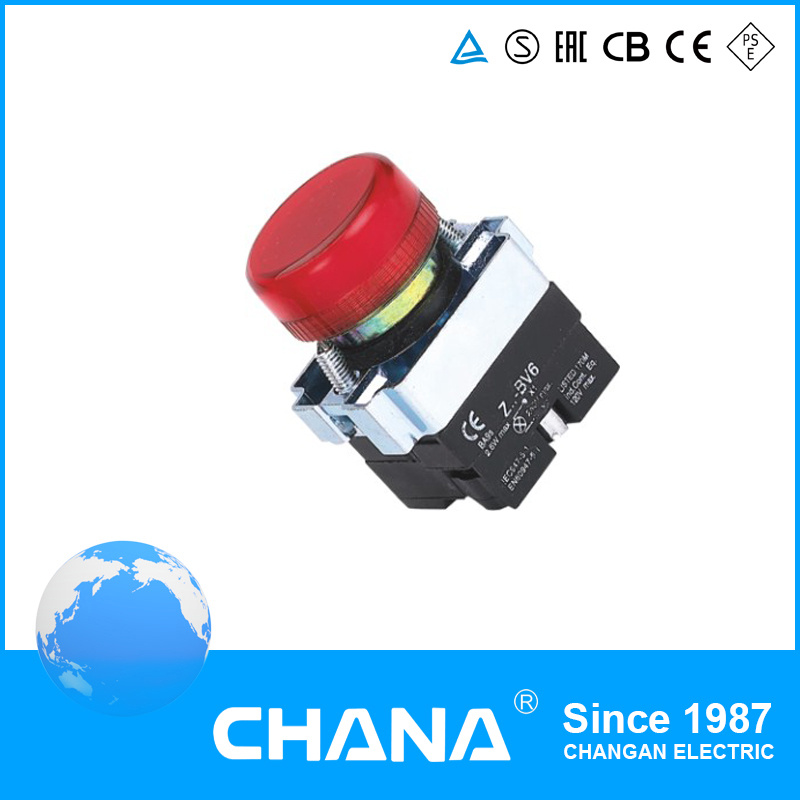

Pushbutton Switch with Indicator Light 6V-380V CB2-BV61

Name: Pushbutton Switch with Indicator Light 6V-380V CB2-BV61
Brand: all-electronics-online.com
SKU: 744014605
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 1.05-1.35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB2-BV61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	22mm
Lamp:	LED
Approval:	CE
Voltage:	6-380V
Type:	Normal Close
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Chana or OEM

Product Description

1. Application

CB* series pushbutton switches are used in industrial for controlling circuits of AC50HZ or 60Hz, rated operation voltage 380V or below and DC operational Voltage 220V or below for controlling in magnetic starter, contactor, relay and other electrical circuits. The butons indicators can also be used in the place with indicated light or signal. They meet with the standards: IEC 60947-5-1

2. Model:

Material	Description	type		Color	Qty/Ctn
Metal Type	Indicator light 6V~380V	Directness	CB2-BV61	White	200
		Directness	CB2-BV63	Green
		Directness	CB2-BV64	Red
		Directness	CB2-BV65	Yellow
		Directness	CB2-BV66	Blue
		Resistance	CB2-BV71	White
		Resistance	CB2-BV73	Green
		Resistance	CB2-BV74	Red
		Resistance	CB2-BV75	Yellow
		Resistance	CB2-BV76	Blue

3. Main technical parameter

Operation terperature: -5oC - +40oC	Power-frequency withstand voltage: 2500V, 1 min
Operation humidity: 45% - 85%	ELECTRIC durability: 50 x 104
Contact resistance: <=50mΩ	Degree of protection; IP40
Rated insulation voltage	Ui 660V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V, 220V, 110V, 48V, 24V
Rated operation current	AC-15 2.5A 4.5A 6A 8A -
Rated operation current	DC-13 - 0.3A 0.6A 1.3A 2.5

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
