| Prod Model: |
CZ-5000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

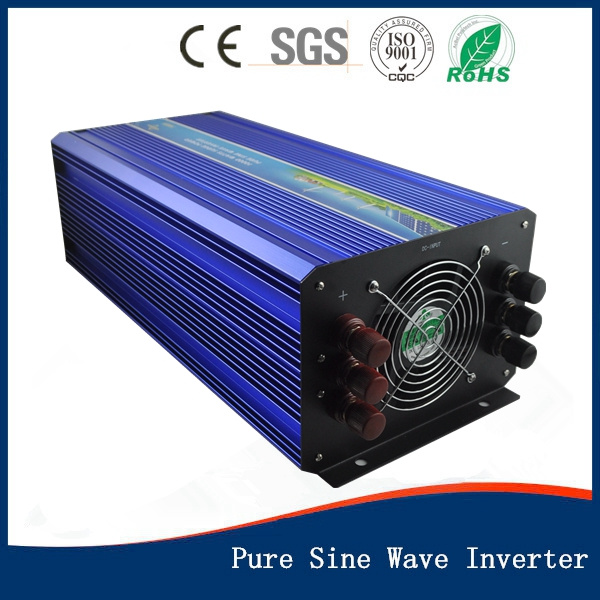

Power Inverter 5000W |
| Wave: |
Pure Sine Wave |
| OEM Service: |
Available |
| Warranty: |
24 Months |
| Frequnency: |
High Frequency |
| Outlet: |
Optional |
| USB: |
5V |
| Color: |
Blue/Silver |
Product Description
Inverter Details
-DC 12V 24V 48V 72V 96V 110V AC 100V 110V 120V 220V 230V 240V 50HZ/60HZ
-300w 500w 800w 1000w 1500w 2000w 2500w 3000w 4000w 5000w 6000w off Grid Solar Power Inverter
CE Approved High Quality Dc to Ac Solar Power Inverter
Pure Sine Wave ,2 Years Warranty .
-for Car Solar/Wind off Grid System.
Inverter Features
1. Input & output fully insolated
2. High Surge: High surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads
3. Soft start: Smooth start-up of the appliances.
4. Pure sine wave output waveform: Clean power for sensitive loads.
5. AC output identical to, and in some cases better than the power supplied by your utility
6. Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
7. Low total harmonic distortion: Below 3%
8. Two LED indicators on the front panel shows the working and failure state.
Inverter Function
1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Soft start
7. Auto. Reset after being in protected
8. Grounding protection
Technical Specifications
| Model | 5000w Power Inverter (CZ-5000S) |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | 3A | 1.5A | 0.8A | 0.4A |
| Efficiency | > 90% |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| AC regulation | 3% |
| Package | Machine size(cm) | 52*21.7*15.3 |
| Packing size(cm) | 60.5*30*23 |
| Net weight(kg) | 13.1 |
| Gross weight(kg) | 15.5 |
Solar Inverter Custom-made available:
We also could provide customized DC input voltages: DC 36V, DC 60V, DC 72V, DC 84V, DC 96V, DC 110V. |
Packaging details:
1pcs/CTN, unit box size 68*33*28cm,N.W13.1kg, G.W15.5kg
Delivery details:
About bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.
