PV System 1200VDC Isolator Switch
| Price: |
US $ 16-35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GN4 |
| Enclosure IP Rating: |
IP65 |
| Max Rated Operating Voltage: |
DC1000V |
| Rated Short-Time Withstand Current: |
8ka |
| Maximum Cable Cross Sections Solid: |
4-16mm2 |
| Enclosure Knockouts Size: |
M20/25 |
| Maximum Ambient Temperature: |
-5~+65 |
| Rated Current: |
16A,25A,32A |
| Normal Speicifition: |
600V 16A and 1000V 32A |
| Name Of The Product: |
Gn4 Series DC Isolator Switch |
| Advantage: |
IP65 Rated Enclosure |
| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Run: |
Plug-In |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Number Of Poles: |
2p 4p |
| Series: |
Two Three Four |
| Common Model: |
Gn4 |
| Brand: |
Golden Electric/OEM |
Product Description

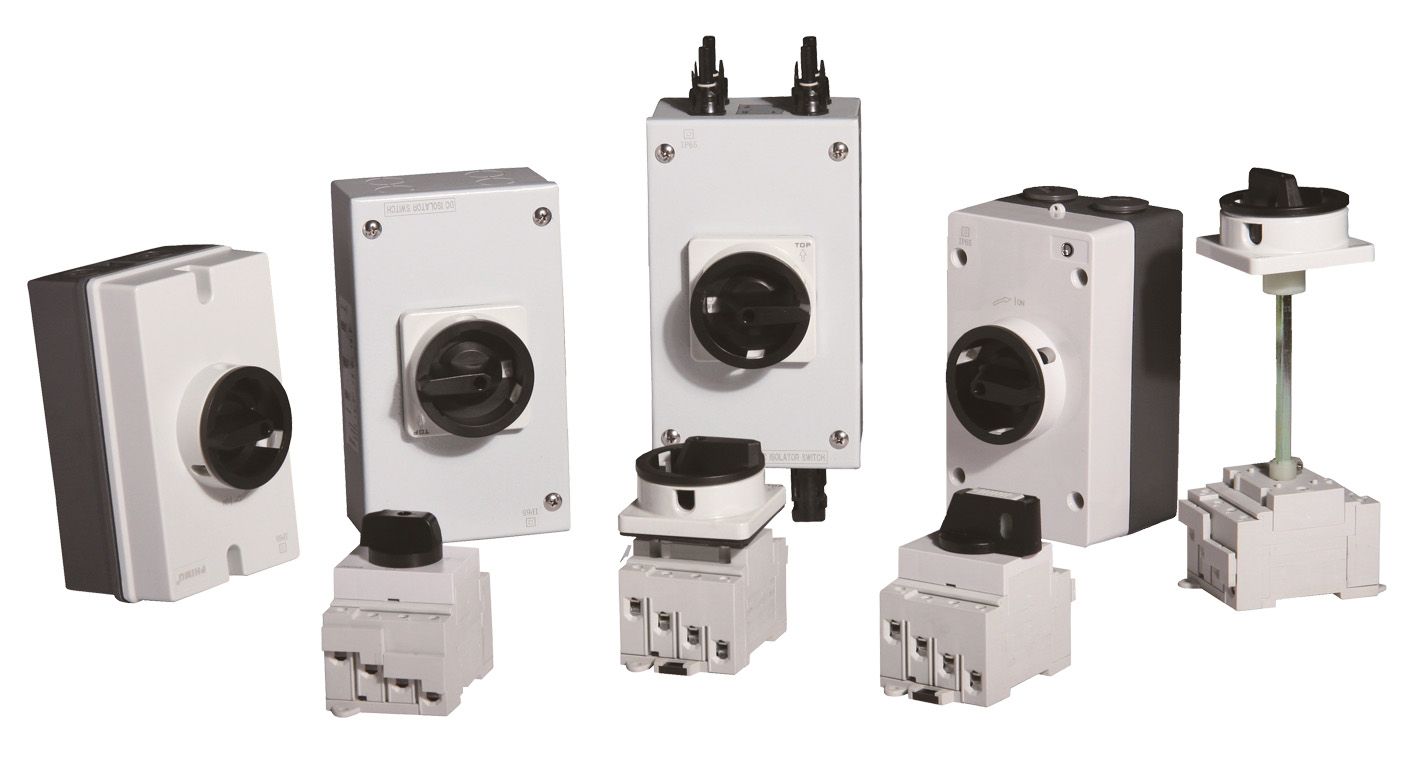

GN4 Series DC Isolator Switch

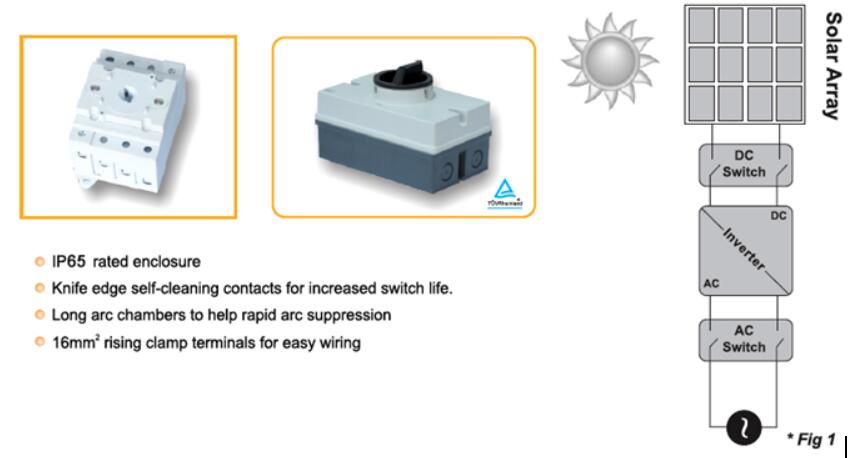

The GN4 Series DC Isolator switch have been specifically designed to switch Direct Current(DC) at voltages up to 1000Volts.Their robust design and ability to switch such voltages,at rated current,mean that they are ideally suited to be used in the switching of Photovoltaic(PV)systems.All Photo voltaic installations must have a DC Switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC 60364-7-712 Illustrated Fig1.
Technical Date(IEC60947-3 Rated oepration DC21B)| Model Number | GN4-003 | Standard | IEC60947-3 |
| No.of Poles | 2&4 poles | Rated Current | 16A 25A 32A |
| IP Rating | IP65 | Mechanical life | 10 |
| Max Rated Operating Voltage | DC1000V | Rated Short-time withstand current | 8KA |
| Maximum cable cross sections solid or stranded | 4-16MM2 | Enclosure knockouts size | M20/25 |
| Maximum ambient temperature operation open | -5~+65 | Maximum ambient temperature | -5~+45 |

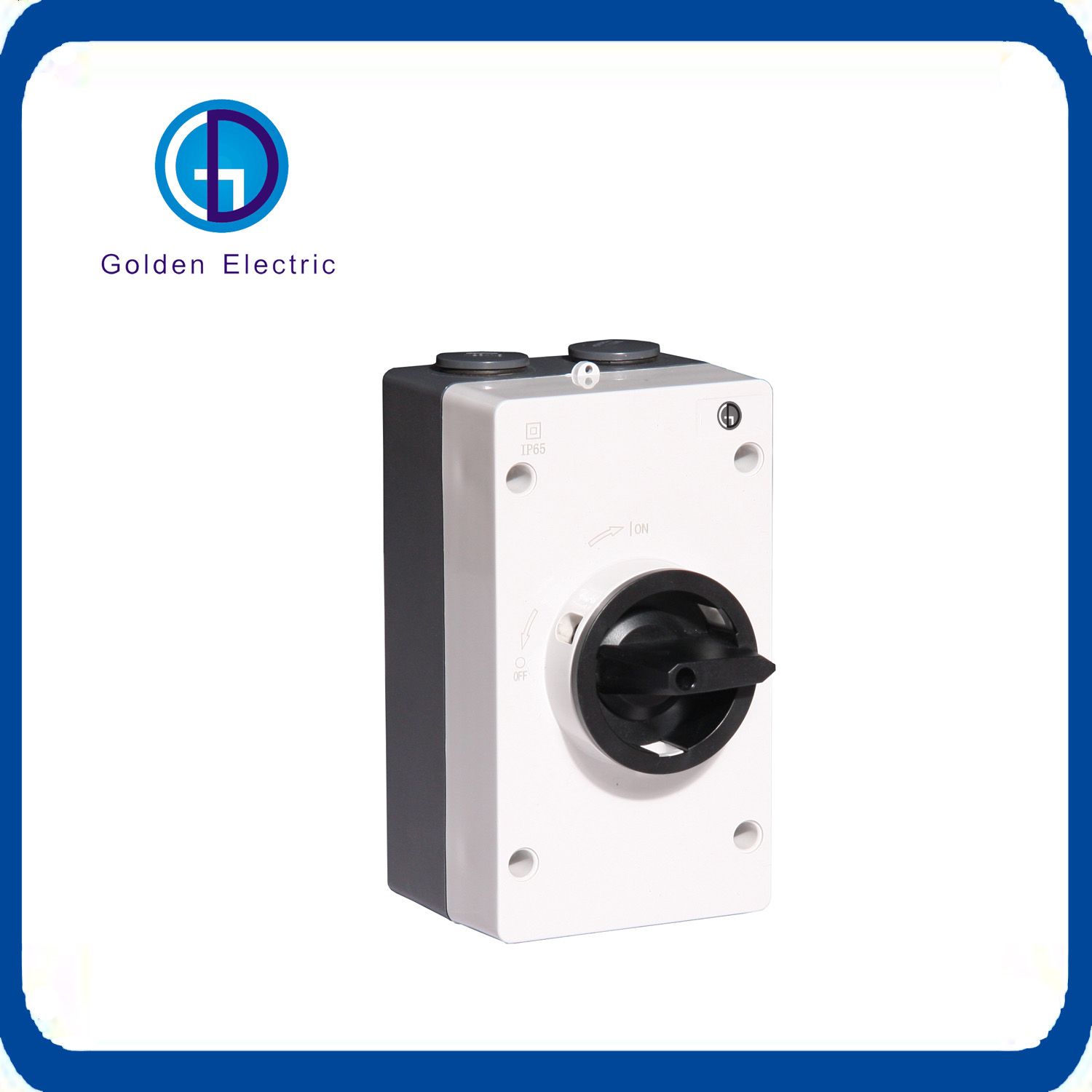

IP65 Plastic Enclosure DC Isolator

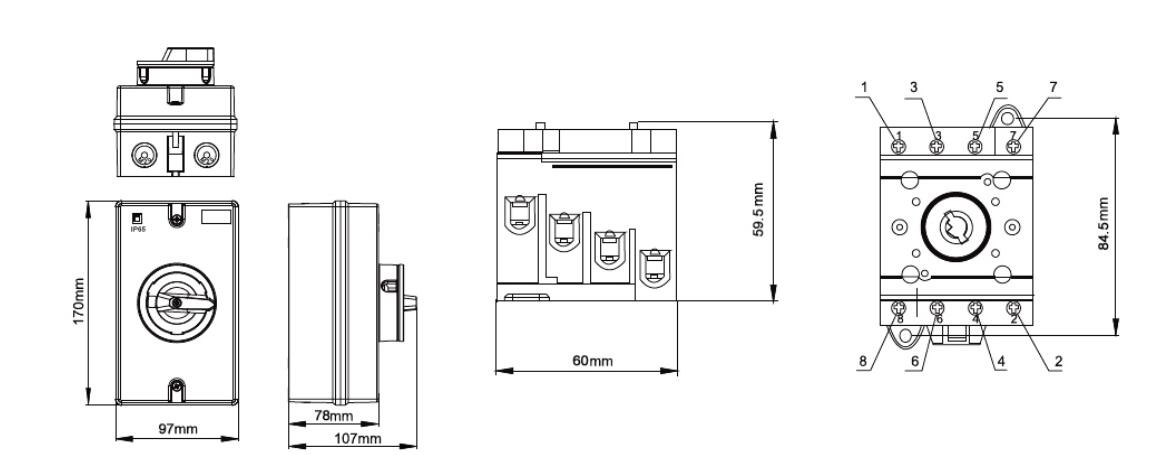

IP65 Plastic Enclosure DC Isolator Dimension

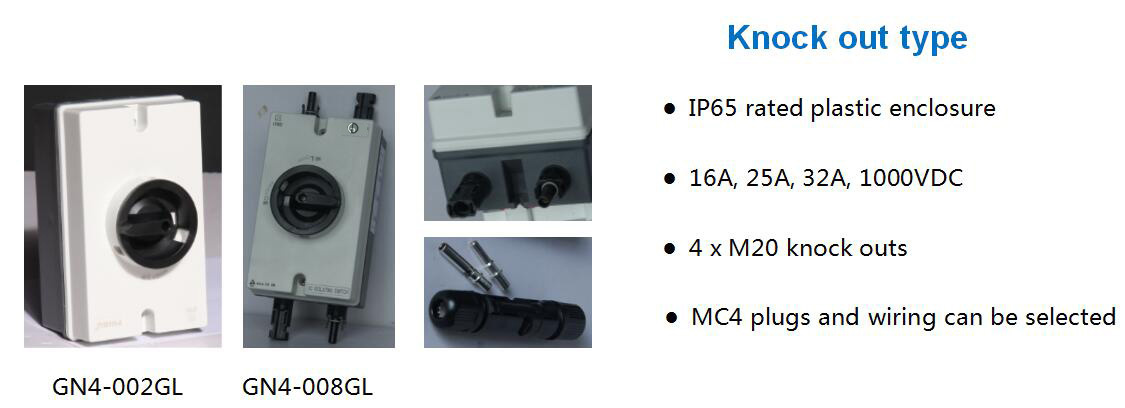

Knock out typeIP65 rated plastic enclosure16A, 25A, 32A, 1000VDC 4 x M20 knock outs

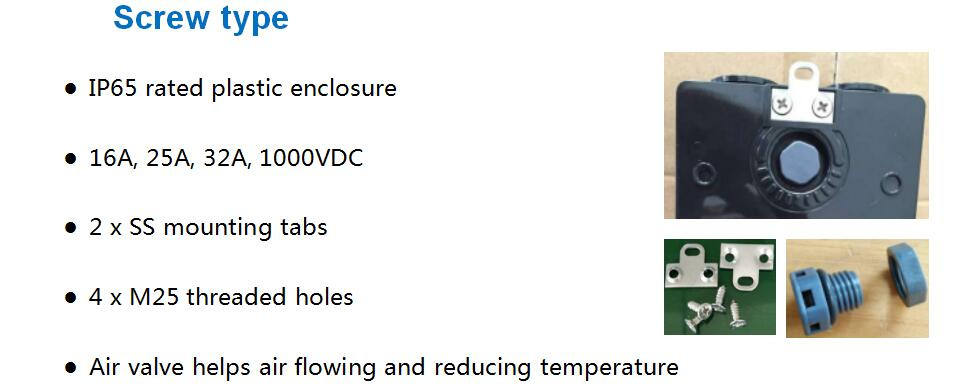

MC4 plugs and wiring can be selectedScrew typeIP65 rated plastic enclosure16A, 25A, 32A, 1000VDC2 x SS mounting tabs 4 x M25 threaded holesAir valve helps air flowing and reducing temperatureWe also have IP65 Metal Enclosure DC Isolator Switch,Waiting for your inquiry !
