PV T Joint Connector Solar Parallel Connectors

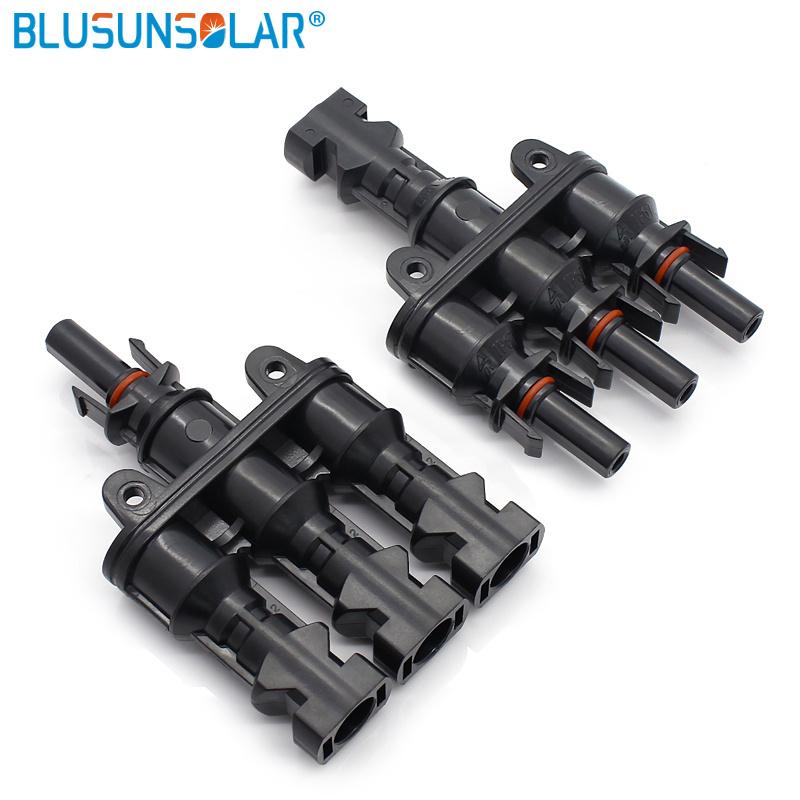

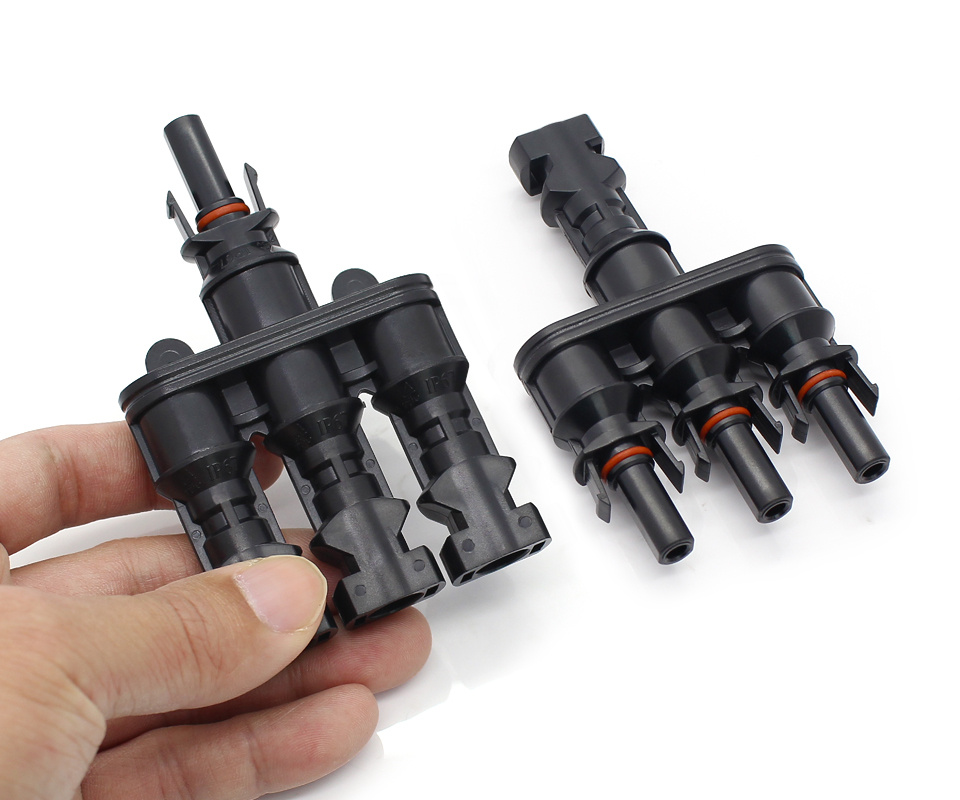

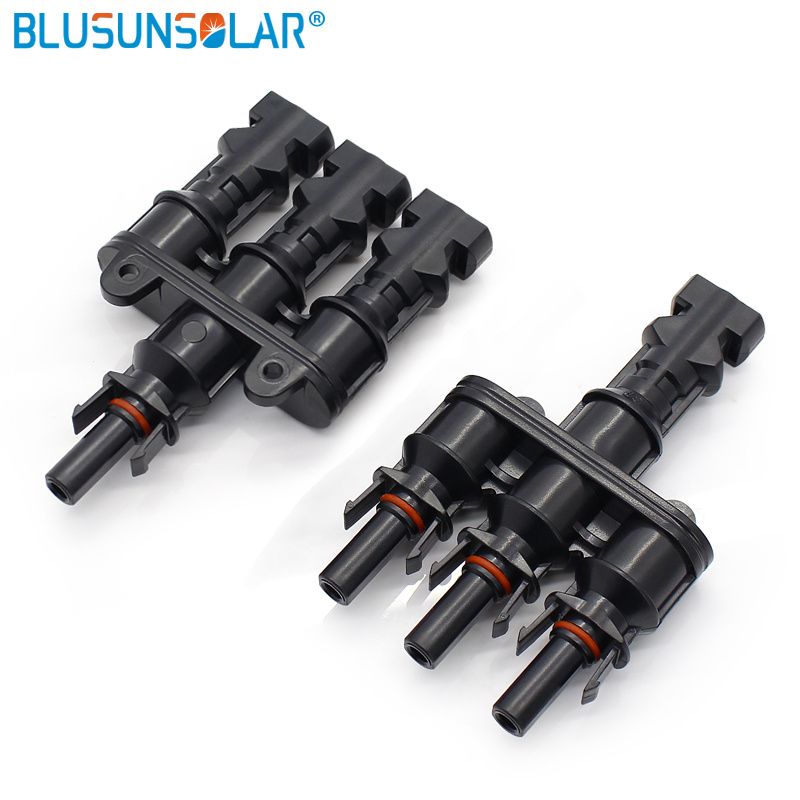

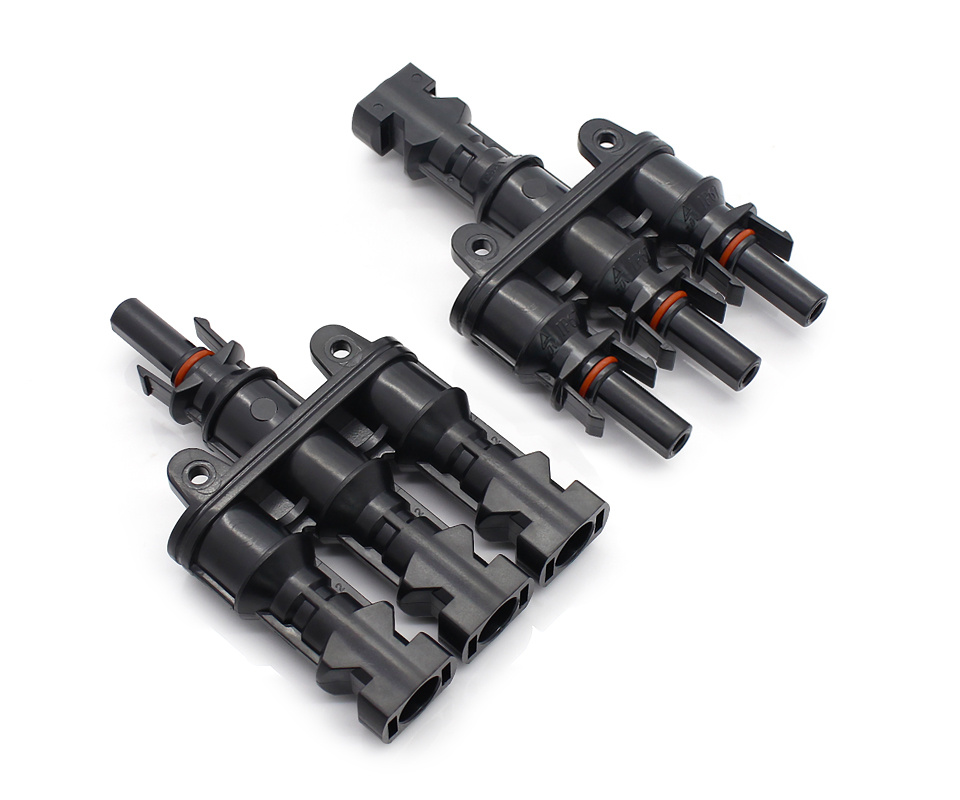

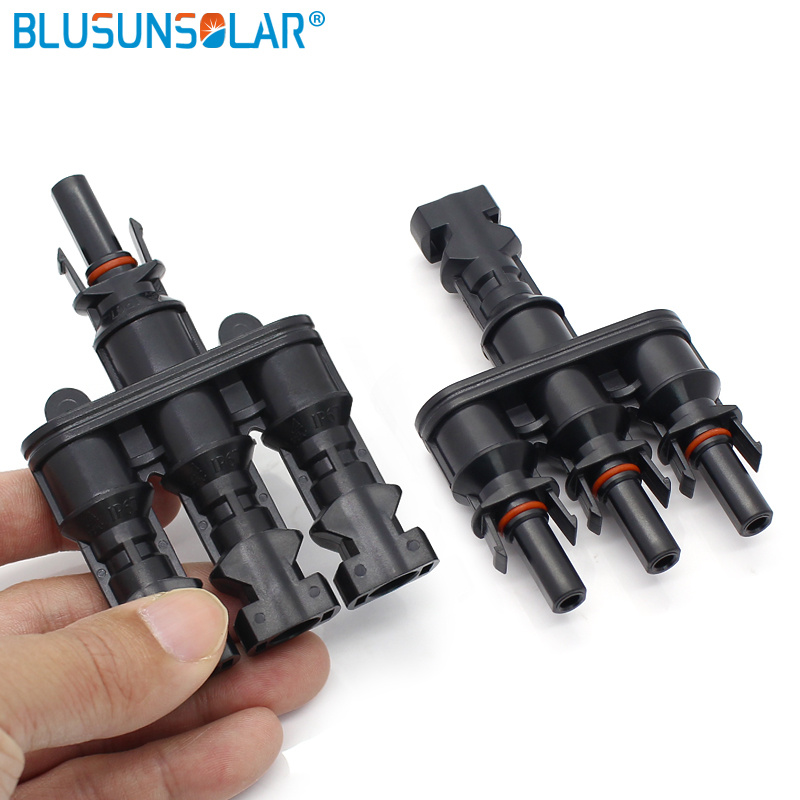

Name: PV T Joint Connector Solar Parallel Connectors
Brand: all-electronics-online.com
SKU: 776562815
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM31-A/B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PPO
Rated Voltage:	TUV 1000 DC/ UL 600V DC
Contact Material:	Copper
Waterproof:	IP 68
Color:	Black
Flame Calss:	UL94V-0
Withdrawal Force:	Withdrawal Force
Ambient Temperature Range:	-40 ~ + 90c
Pin Dimention:	4.0mm
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	TUV
Brand:	Sy.PV

Product Description

Suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2

Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).

Technical data:

1.Connector adopts touch of reed with inne-knob type.

2.Auto-lock enable connection more easy and reliable.

3.Popular figure suit most of field installation.

4.Quickly to connector.

5.Water proof and prevent dust.

6.Long life.

CHARACTERISTICS:

Insulation material:	PPO
Rated Voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP68
Pollution Degree	2
Protection class	Class II
Flame calss	UL94V-0
Plug Force	less than 50N
Withdrawal force	Withdrawal force
Ambient temperature range	-40 ~ + 90.
Compatible cable cross sections Solar cable	2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg)
Pin dimention	4.0mm

Our sevices:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.

All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.

We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.
