| Prod Model: |
PV1100 PLUS |
| Output Capacity: |
1kVA-2400va |
| Battery Cable: |
10AWG 60cm |
| Fit For: |
Home and Solar System |
| 1400va/800W: |
Small Home Inverter |
| Input Range: |
170-280V |
| 2400va/1440W: |
Compact for Home Use Inverter |
| Input Wide Range: |
90-280V |
| Efficiency: |
95% |
| Warranty: |
One Year |
| Application: |
Home Application |
Product Description

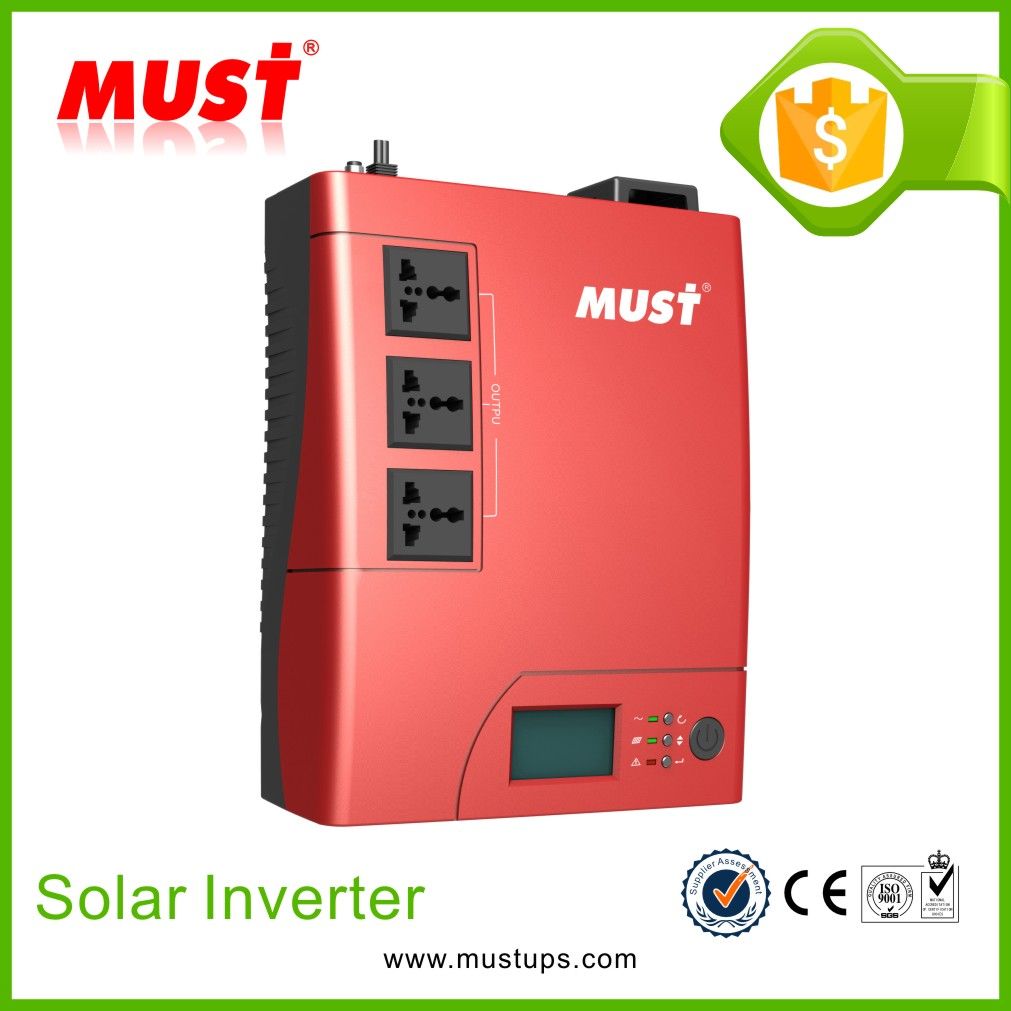

MUST new design portable dc to ac solar system 24v pure sine wave inverter pv1100
Features of solar inverter PV1100 series:
- Modified sine wave AC output, wide applicaton range.
- Charge current 15/20A adjutable for model 1000VA 1400VA
- Inbuilt with 30A PWM solar charge controller
- Three steps intelligent charging control
- Battery reverse protection
- Battery cable 8AWG 80CM (doule line)
- Compact size fit for home use, small solar system.
Specification:
| MODEL | PV11-1000 | PV11-1400 | PV11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Rated Power | 1000VA/660W | 1400VA/800W | 2400VA/1440W |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 50Hz/60Hz +/-1 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50HZ/60HZ (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC+/-0.4V | 21.0VDC+/-0.8V |
| Low Battery Cutoff | 10.0VDC+/-0.4V | 20.0VDC+/-0.8V |
| High Voltage Cutoff | 15.0VDC+/-0.4V | 30.0VDC+/-0.8V |
| AC CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC+/-0.2V | 28.8VDC+/-0.4V |
| Charger Voltage (Vbat<12.5V) | 13.7VDC+/-0.2V | 27.4VDC+/-0.4V |
| Charging Current | 15A/20A±2A | 10A±2A |
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp |
| SOLAR CHARGER | Maximum PV Charge Current | 30A |
| DC Voltage | 12V/24V atuo work |
| Maximum PV Array Power | 150W*3 solar panels | 150W*4 solar panels |
| MPPT Range @ Operating Voltage | 16~55VDC |
| Maximum PV Array Open Circuit Voltage | 55VDC |
| Maximum Efficiency | >95% |
| Standby Power Consumption | <2W |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 268*260*90mm |
| Net Weight (kg) | 3.5 |
| OTHER | Operation Temperature Range | 0°C to 50°C |
| Audible Noise | 50dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed for us.
One Year Warranty on MUST POWER Products
Guides and After-service Consultancy
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 200 workers |
| Department | 7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
FAQ:Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
