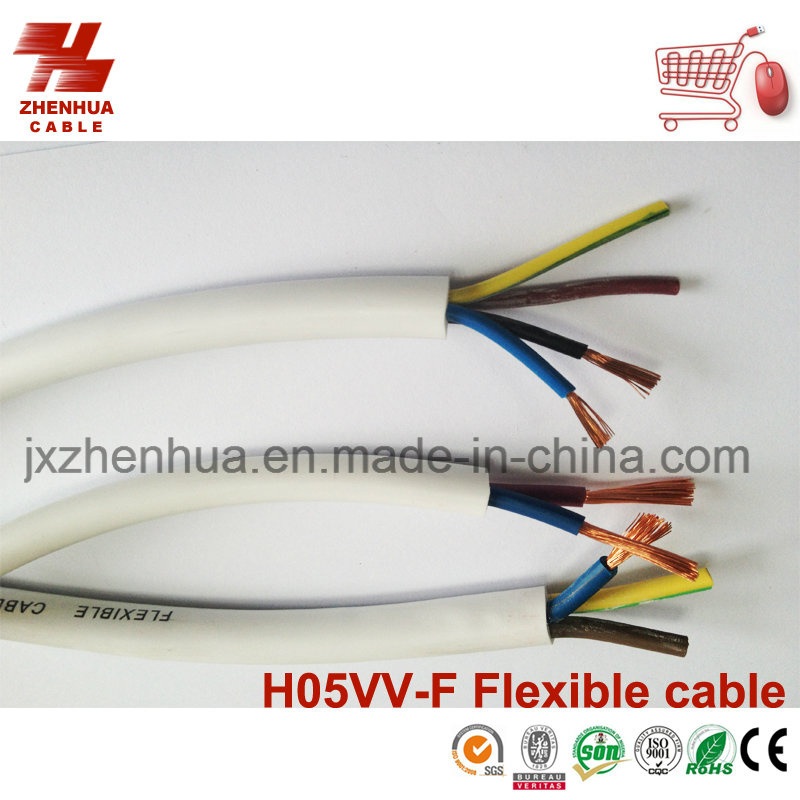

PVC Insulated and PVC Sheathed Flexible Cables H03VV-F& H05VV-F
| Price: |
US $ 0.1/Meter |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
H05VV-F |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper Clad Aluminum |
| Insulation Material: |
PVC |
| Certification: |
SGS,Son |
| Brand: |
Zhenhua |
Product Description
Intruduction of the PVC Insulated and PVC Sheathed Flexible Cables H03VV-F& H05VV-F1, The national certification of qualified manufacturers 2, Standard: BS6500 ; IEC 60227, VDE 0281 3, CE, RoHS, ISO ,SGS Certificate 4, Meet European standards and can be customized according to customer requirements 5, OEM, ODM cooperation Product Description: Standard: BS6500 ; IEC 60227, VDE 0281 Construction:Code: H03VV-F & H05VV-F CU/PVC/PVC Voltage:300/300V & 300/500V Conductor: Flexible annealed copper wire stranded (class 5 )insulation : PVC compoundsheath: PVC compoundInsulation Color: Blue , brown ,black ,grey, green/yellowSheath Color: Black ,white Technical data:during installationi: +5 °C up to +70 °C
fixed installed: -30 °C up to +70 °C
at short circuit of max. 5 s: up to 150 °C
ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 300/500 VTest voltage: 2000 VMinimal inner bending radius: 4D for D < 8 mm 5D for 8 - 12 mm 6D for D > 12 mmBehaviour in fire: IEC 60332-1Applications: PVC Insulated and PVC Sheathed Flexible Cables for medium mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in household, kitchens and offices in dry and damp conditions, for inst. washing-machines, dryers, refrigerators etc., as long as the cable is adapted to essential specifications of the device. Also suitable for cookers, i.e. hot devices, on condition that it does not get in direct contact with hot parts of the device and is not exposed to heat irradiation. Suitable for fixed installation in furniture, partition walls, decorative linings and cavities in prefabricated construction elements.
Contact Info.:
JIAXING ZHENHUA WIRE&CABLE CO., LTD
Add:Zhangqiao Village ,Shiquan Town,Haiyan County,ZhejiangProvince,P.R.China Attn: Roy Cell:0086-18658163419 Web:www.zhenhuacable.com.cn | No. of cores x cross-section(mm²) | Construction of individual conductornominal(n x mm) | External diametermin-max.mm | Insulation thickness nominal mm | Sheath thickness nominal mm | Conductor resistance at 20 ° C max. Ω /km |
| 2 x 0, 75 | 24 x 0, 20 | 5, 7 - 7, 2 | 0, 6 | 0, 8 | 26, 0 |
| 2 x 1 | 32 x 0, 20 | 5, 9 - 7, 5 | 0, 6 | 0, 8 | 19, 5 |
| 2 x 1, 5 | 30 x 0, 25 | 6, 8 - 8, 6 | 0, 7 | 0, 8 | 13, 3 |
| 2 x 2, 5 | 50 x 0, 25 | 8, 4 - 10, 6 | 0, 8 | 1, 0 | 7, 98 |
| 3G0, 75 | 24 x 0, 20 | 6, 0 - 7, 6 | 0, 6 | 0, 8 | 26, 0 |
| 3G1 | 32 x 0, 20 | 6, 3 - 8, 0 | 0, 6 | 0, 8 | 19, 5 |
| 3G1, 5 | 30 x 0, 25 | 7, 4 - 9, 4 | 0, 7 | 0, 9 | 13, 3 |
| 3G2, 5 | 50 x 0, 25 | 9, 2 - 11, 4 | 0, 8 | 1, 1 | 7, 98 |
| 3G4 | 56 x 0, 30 | 10, 5 - 13, 1 | 0, 8 | 1, 2 | 4, 95 |
| 4G0, 75 | 24 x 0, 20 | 6, 6 - 8, 3 | 0, 6 | 0, 8 | 26, 0 |
| 4G1 | 32 x 0, 20 | 7, 1 - 9, 0 | 0, 6 | 0, 9 | 19, 5 |
| 4G1, 5 | 30 x 0, 25 | 8, 4 - 10, 5 | 0, 7 | 1, 0 | 13, 3 |
| 4G2, 5 | 50 x 0, 25 | 10, 1 - 12, 5 | 0, 8 | 1, 1 | 7, 98 |
| 4G4 | 56 x 0, 30 | 11, 5 - 14, 3 | 0, 8 | 1, 2 | 4, 95 |
| 4G6 | 84 x 0, 30 | 14, 7 | - | - | 3, 30 |
| 5G0, 75 | 24 x 0, 20 | 7, 4 - 9, 3 | 0, 6 | 0, 9 | 26, 0 |
| 5G1 | 32 x 0, 20 | 7, 8 - 9, 8 | 0, 6 | 0, 9 | 19, 5 |
| 5G1, 5 | 30 x 0, 25 | 9, 3 - 11, 6 | 0, 7 | 1, 1 | 13, 3 |
| 5G2, 5 | 50 x 0, 25 | 11, 2 - 13, 9 | 0, 8 | 1, 2 | 7, 98 |
| 5G4 | 56 x 0, 30 | 13, 0 - 16, 1 | 0, 8 | 1, 4 | 4, 95 |
Jiaxing Zhenhua Wire & Cable Co., Ltd. Was established in 1999, who is a professional cable manufacturer and specializing in various wire & cable. Covering Electrical building wire (Single, Twin, Multi-core), Power Cable(Armoured Cable), Welding Cable(AUTO&Battery Cable), Speaker cable, Audio &Vedeo cable, Telephone Cable, Coaxial Cable(RG59/6), LAN Cable(Cat5e/6),
Alarm Cable, PV Solar cable etc.

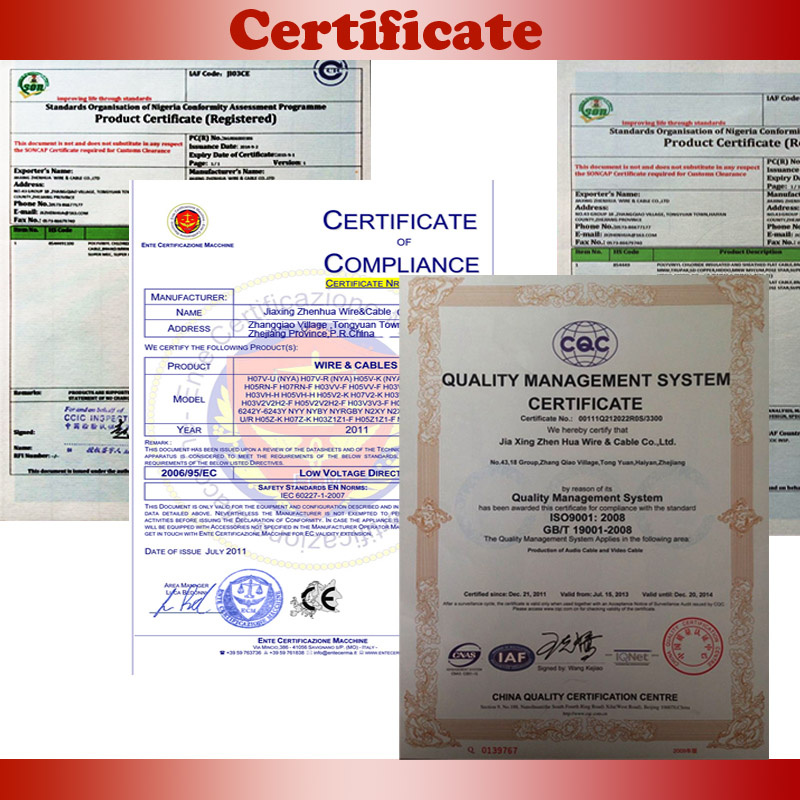

We have strict quality control system and pass the ISO9001: 2008 QUALITY MANAGEMENT SYSTEM CERTIFICATE as well as we have CE and SONCAP Certificate
Our cable factory is located in Haiyan county, Zhejiang Province which is very close to Shanghai and Ningbo Port with convenient transportation access, So we can deliver the goods by all kinds of transportation for saving the customer`s cost on inland freight.
Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.
It`s your best choice to use ZHENHUA CABLE!
