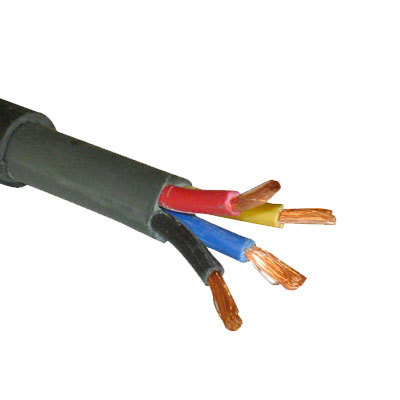

PVC Cable 4X4 Copper PVC Insulated Flexible Cable
| Price: |
US $ 0.26-3.88/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
4x4mm2 |
| Type: |
Insulated |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Range Of Application: |
Electrical Construction |
| Brand: |
Jytop |
Product Description
pvc cable 4x4 copper pvc Insulated Flexible Cable
HARMONISED CODE:
- 0.75mm2 & 1.0mm2 solid conductor wire H05V-U
- 1.5mm2 & 2.5mm2 solid conductor wire H07V-U
- 1.5mm2 to 120mm2 stranded conductor wire H07V-R
APPLICATION:
- These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring
CONSTRUCTION:
- Reference: 6491X or 6491X HR*
- Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1
- Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655
DESCRIPTION:
- PVC Insulated Copper conductor Single Core Cable, multi strand single core cables electrical appliances. electrical single core cable is high quality and long life.

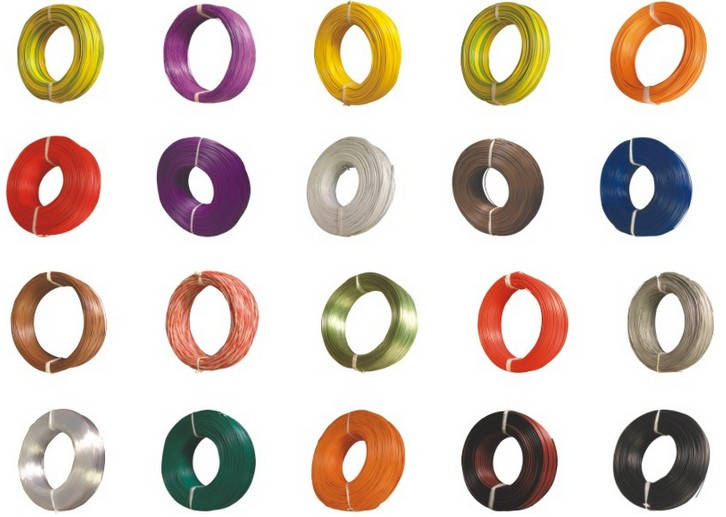

STANDARD COLOURS:
Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request
PACKAGING:
- Sizes 0.75mm2 to 35mm2 in reels/coils of 100yards and 100m
- All sizes can be supplied in non-returnable wooden reels of 500m and 1000m
- Customised lengths available on request
TECHNICAL DATA:
- Max. Operating Temperature: 70OC / *105OC
- Rated Voltage: 450/750V (300/500V for 0.75mm2 & 1.0mm2)
- Standards: Generally to BS6004
Packaging & Shipping
1. Paking detail
1) Packing Lengths: 100m/roll,200m/roll, 300m/roll,500m/roll, 1000m/roll or other lengths available according to client's request.
2) Inner packing: Plastic film,Wooden reel, plastic reel, and paper reel are available.
3) Outer packing: Carton,Sack bag or as request
4) Other packing available according to client's request.
STRANDED COPPER CONDUCTOR, PVC INSULATED SINGLE CORE CABLE
PVC insulated cable 4x4
PVC insulated wire 4x4
| Size of conductor | Nominal thickness of insulation
mm | Mean overall
diameter
Upper limit
mm | Approx. net weight per km
kg |
Nominal
cross-sectional area
mm 2
(one core cable) | Number
and diameter of wires
no./mm |
| 1.0 | 1/1.13 | 0.6 | 2.8 | 14 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20 |
| 1.5 | 7/0.50 | 0.7 | 3.4 | 20 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 33 |
| 2.5 | 7/0.67 | 0.8 | 4.2 | 34 |
| 4 | 1/2.25 | 0.8 | 4.4 | 51 |
| 4 | 7/0.85 | 0.8 | 4.8 | 51 |
| 6 | 1/2.76 | 0.8 | 4.9 | 67 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71 |
| 10 | 1/3.57 | 1.0 | 6.4 | 110 |
| 10 | 7/1.35 | 1.0 | 6.8 | 120 |
| 16 | 1/4.50 | 1.0 | 7.3 | 170 |
| 16 | 7/1.70 | 1.0 | 8.0 | 180 |
| 25 | 7/2.14 | 1.2 | 9.8 | 285 |
| 35 | 19/1.53 | 1.2 | 11.0 | 380 |
| 50 | 19/1.78 | 1.4 | 13.0 | 510 |
| 70 | 19/2.14 | 1.4 | 15.0 | 715 |
| 95 | 19/2.52 | 1.6 | 17.0 | 990 |
| 120 | 37/2.03 | 1.6 | 19.0 | 1230 |
| 150 | 37/2.25 | 1.8 | 21.0 | 1510 |
| 185 | 37/2.52 | 2.0 | 23.5 | 1900 |
| 240 | 61/2.25 | 2.2 | 26.5 | 2490 |
| 300 | 61/2.52 | 2.4 | 29.5 | 3050 |
| 400 | 61/2.85 | 2.6 | 33.5 | 3900 |
| 500 | 61/3.20 | 2.8 | 37.0 | 4880 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
