Zhengzhou Jinshui Industry and Commerce Co., Ltd. >> PVC Cable Armored Power Cable

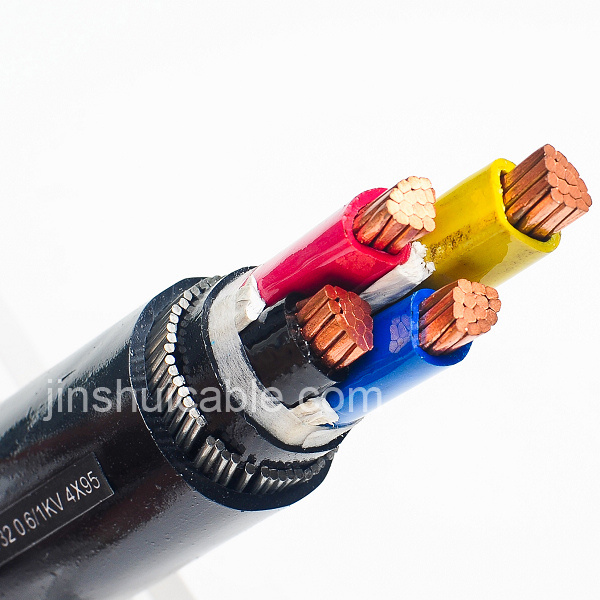

PVC Cable Armored Power Cable

PVC Cable Armored Power Cable
Price: US $ 100container
Trade Terms: FOB,CFR,CIF
Min Order: 1container
Pay Type: L/C,T/T
Prod Model: VV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor: Copper
Insulation: PVC
Outer Sheath: PVC
Cores: Single/Two/Three/Four
Application: Underground
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: PVC
Certification: CE

Product Description

The PVC insulated power cable are suitable for fixed laying in power transmission and distribution lines with A. C. 50HZ and voltage rating of up to or including 6KV.
Performance:
1. The long-term permissible operation temperature of the conductor shall not be higher than 70 centigrade
2. Conductor maximum short circuit((less then 5 second) temperature shall not be higher than 160 centigrade
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 centigrade
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6. Rated voltage: 0.6/1kV, 3.6/6kV
7. Conductors: Copper or Aluminum
8. Number of cores: One, two, three, four, five
We can produced it according to IEC60502 and IEC60331, and the product can be produced against the standard of BS, DIN, or other standard according to customers' requirement.
TypeNameUsage
VV PVC insulated PVC sheathed power cableCan be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
VLV
VYPVC insulated and PE sheathed power cableCan be laid at indoor, tunnel tube and serious polluted places. Cablecannot  undertake mechanism outside force
VLY
VV22PVC insulated steel belt armored and PVC sheathed power cableCan be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV23PVC insulated steel belt armored and PE sheathed power cableCan be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot  undertake mechanism outside force
VLV23
VV32PVC insulated steel belt armored and PE sheathed power cableCan be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot  undertake mechanism outside force
VLV32
VV33PVC insulated steel belt armored and PE sheathed power cableCan be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot  undertake mechanism outside force
VLV33
VV42  PVC insulated steel belt armored and PE sheathed power cableCan be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot  undertake mechanism outside force
VLV42
VV43PVC insulated steel belt armored and PE sheathed power cableCan be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot  undertake mechanism outside force
VlV43
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.

Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.

Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.

With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.

With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
