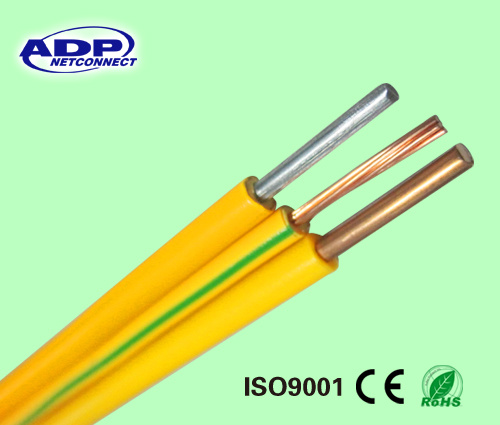

PVC Cable of Electrical BV Bvr Cable

Name: PVC Cable of Electrical BV Bvr Cable
Brand: all-electronics-online.com
SKU: 735776425
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Material:	Copper
Conductor Type:	Stranded
Insulation Material:	PVC
Application:	Use in Power Installations, Fixed Wiring or Flexi

Product Description

PVC Cable of Electrical BV Bvr Cable

1) 450/750V insulated wire
2) IEC, ASTM, DIN, BS standard
3) ISO9001, CCC
4) Free samples

1 Standard

GB 5023.11997, JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

2 Rated Voltages:

450/750V 300/500V 300/300V. (600/1000V also available)

3 Application

The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical appliances

Like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less

Product structure and typical performance parameters:

Conductor
Insulation
Max DC Resistance(Ω /Km. 20° )
Minimum insulation resistance(M Ω /Km. 70° C)
Compressive strength(KV. 5MIN)

Nominal cross section(mm2)
Structure(NO/MM)
Nom. Dia. (mm)
Nom. Thick. (mm)
Nom. Dia. (mm)

2.5
19/0.41
2.05
0.8
2.65
7.41
0.011
2.500

4
19/0.52
2.6
0.8
4.20
4.61
0.009
2.500

6
19/0.64
3.2
0.8
4.80
3.08
0.0084
2.500

10
49/0.52
4.38
1.0
6.38
1.83
0.0072
2.500

16
49/0.64
5.38
1.0
7.38
1.15
0.0062
2.500

25
98/0.58
7.4
1.2
9.80
0.727
0.0058
2.500

35
133/0.58
8.6
1.2
11
0.524
0.0052
2.500

50
133/0.68
10.2
1.4
13
0.387
0.0051
2.500

70
189/0.68
12.55
1.4
13.73
0.268
0.0045
2.500

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
