PVC Cables, Earthing Cables for Substation Power Plant

Name: PVC Cables, Earthing Cables for Substation Power Plant
Brand: all-electronics-online.com
SKU: 788536405
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 0.6-2/Meter
Min Order:	200/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Eartheing cable
Produceing Experience:	15 Years
Size:	From 16..35... 50 70 95mm2
Export Experience:	Africa,Southeast Asia,South America
OEM:	Yes
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Certification:	RoHS
Insulation Material:	PVC or XLPE
Wire Core Material:	Copper, Aluminum,CCA
Model:	VV Yjv Vlv Yjlv VV22 VV32
Brand:	Verde Cable

Product Description

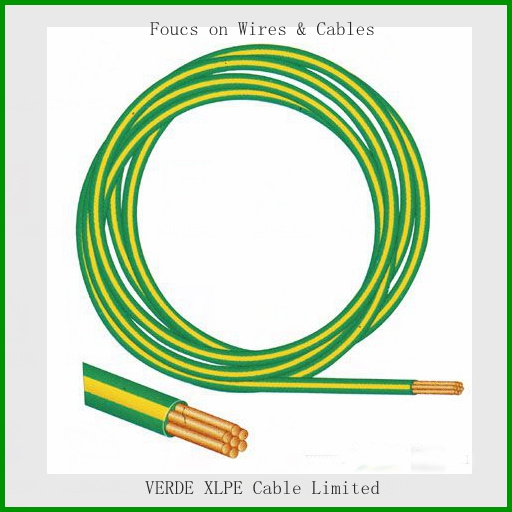

Yellow Green Colored Copper conductor PVC Insulated Earth Cable For Substation,Power plant,Industrial,Underground

Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V
Standard: IEC60502 and IEC60331, BS 6346 , DIN VDE 0271

PVC power cables (plastic power cable) is one of high quality products of our company. The product not only has good electric capability, but also has good chemical stabilization, simple structure, easy to use, and the laying of cable do not be limited by the fall. It is widely used at the transformer circuit which rated voltage is 6000V or under.

The product can be produced against the standard of IEC60502 and IEC60331, BS 6346, DIN VDE 0271, and can also customize as per customer's request.

1. The long-term permissible operation temperature of the conductor shall not be higher than 70

2. The max temperature of the conductor of cable should less than 160 when short circuit. (less than 5 second)

3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant.

5. Light weight, perfect bending properties, installed and maintained easily and conveniently

6 Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V

7 Number of cores: One, two, three, four, five

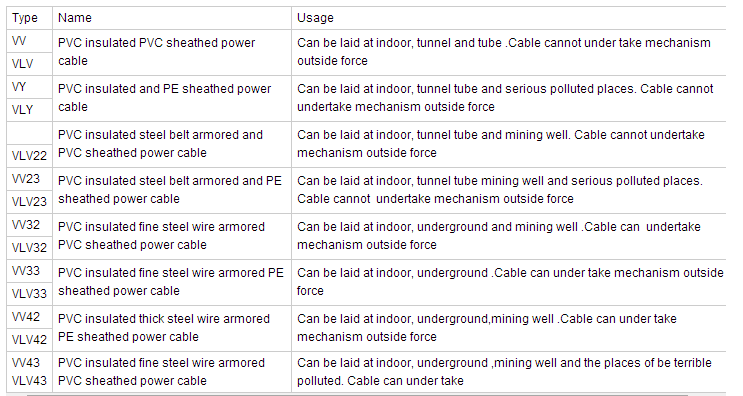

8 Type, name and usage

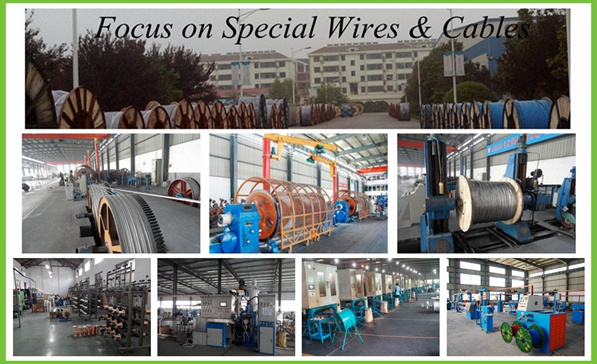

Our workshop

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
