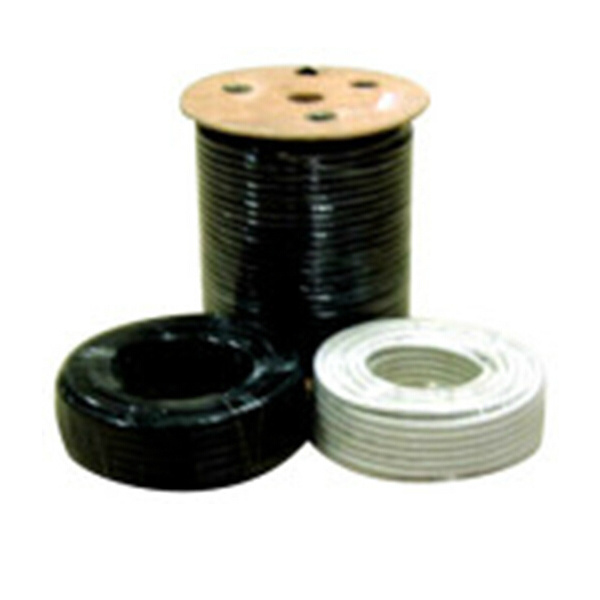

PVC Electric Wire Coaxial Cable

Prod Model:	RG6/59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black,White
Conductor:	CCS,Copper
Jacket:	PVC
F Connector:	with or Without
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	RG6 Rg59
Wire Core Material:	CCS Copper
Model:	RG6 Rg59
Brand:	OEM

Product Description

Coaxial Cable RG6(CCTV cable)

Cable Features&Advantages:
1) High physical foaming
2) Low loss in attenuation
3) OPTION: Dual /Quad Shield /Messenger /Quad Shield And Messenger

RG6 Coaxial Cable
Application:
Drop cable for CATV and MATV distribution

Specification for RG6 (CCTV Cable)

1) Copper clad steel conductor
2) Dielectric: Gas expanded polyethylene
3) Shield: Bonded type aluminum polypropylene laminated foil and aluminum braided wire
4) PVC or sunlight resistant PVC Jacket

1.02mm CCS/BC Conductor +4.57mm PE Foam+Non-Bonded /Bonded /Double Al Foil+Al Wire /TC /BC Braiding+6.9mm PVC Jacket

Other specification can be made upon customer requirements

Component	RG6
	Standard-shield,mm	Tri-shield, mm	Quad-shield, mm
Nominal center conductor diameter	1.02	1.02	1.02
Nominal diameter over dielectric	4.57	4.57	4.57
Nominal diameter over first shield(tape)	4.75	4.75	4.75
Nominal diameter over jacket	6.91	7.06	7.62
Nominal jacket wall thickness	0.76	0.76	0.86
Nominal diameter of steel messenger	1.3(single)	1.3(single)	1.3(single)
	1.83(dual)	1.83(dual)	1.83(dual)
