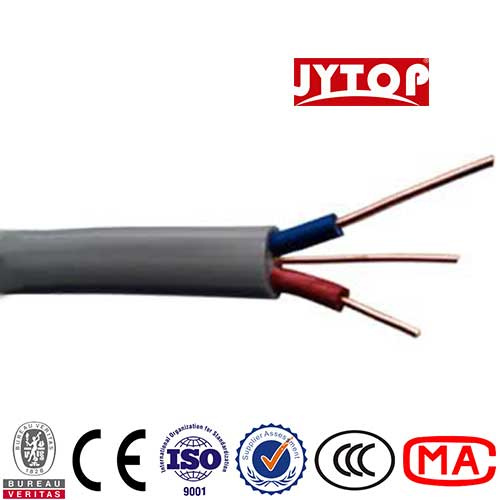

PVC Electrical Cable Twin with Earth Wire

Name: PVC Electrical Cable Twin with Earth Wire
Brand: all-electronics-online.com
SKU: 792692125
Availability: InStock
Rating: 4.4 (46 reviews)

Price:	US $ 0.88-8.88/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	3*4 mm
Standards:	BS 6004 Standard
Voltage Range:	300/500V
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Brand:	Jytop

Product Description

steel earthing conductor and wholesale anti fire cable 3*4

Application:
Designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Reference No 6242y
Flat-Twin with Bare Earth-continuity Conductor

Size of conductor		Nominal thickness of insulation mm	Size of earth conductivity conductor no./mm	Nominal thickness of sheath mm	Mean overall dimensions		Approx. net weight per km kg
Nominal cross- sectional area mm2	Number and diameter of wires mm	Nominal thickness of insulation mm	Size of earth conductivity conductor no./mm	Nominal thickness of sheath mm	Lower limit mm	Upper limit mm	Approx. net weight per km kg
1.0	1/1.13	0.6	1/1.13	0.9	4.0*7.2	4.7*8.6	70
1.5	1/1.38	0.7	1/1.13	0.9	4.4*8.2	5.4*9.6	85
2.5	1/1.78	0.8	1/1.13	1.0	5.2*9.4	6.2*11.0	120
4	7/0.85	0.8	1/1.38	1.0	5.6*10.5	7.2*13.0	175
6	7/1.04	0.8	1/1.78	1.1	6.4*12.5	8.0*15.0	240
10	7/1.35	1.0	7/0.85	1.2	7.8*15.5	9.6*19.0	390
16	7/1.70	1.0	7/1.04	1.3	9.0*18	11.0*22.0	560

Notes
1.Conductor of high conductivity copper wires insulated with PVC compound.Sheathed with PVC compound.
2.Core colors: red and black. Sheath colors:grey or white.

300/500V PVC Insulated PVC Sheathed Cables to BS 6004
Reference No 6243y
Three-core (Flat) with Bare
Earth-continuity Conductor

Size of conductor		Nominal thickness of insulation mm	Size of earth- conduct -ivity conductor No/mm	Nominal thickness of sheath mm	Mean overall dimensions		Approx. net weight per km kg
Nominal cross- sectional area mm2	Number and diameter of wires mm	Nominal thickness of insulation mm	Size of earth- conduct -ivity conductor No/mm	Nominal thickness of sheath mm	Lower limit mm	Upper limit mm	Approx. net weight per km kg
1.0	1/1.13	0.6	1/1.13	0.9	4.0*9.6	4.7*11.0	92
1.5	1/1.38	0.7	1/1.13	0.9	4.4*10.5	5.4*12.5	115
2.5	1/1.78	0.8	1/1.13	1.0	5.2*12.5	6.2*14.5	170
4	7/0.85	0.8	1/1.38	1.1	5.8*14.5	7.4*18.0	255
6	7/1.04	0.8	1/1.78	1.1	6.4*16.5	8.0*20.0	340
10	7/1.35	1.0	7/0.85	1.2	7.8*21.0	9.6*25.5	550
16	7/1.70	1.0	7/1.04	1.3	9.0*24.5	11.0*29.5	790

Notes
1.Conductor of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2.Core colors: red, yellow and blue(yellow in centre) Sheath colors: grey or white.

web1 : www.jytopcable.com
web2 : www.electriccable.cc
web3 : www.abccable.net

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
