Name: PVC Electrical Wire and Cable
Brand: all-electronics-online.com
SKU: 714302852
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	US $ 0.1155-0.9999/Meter
Min Order:	3050/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL2464
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Material Shape:	Flat or Round Cable
Brand:	Phine/Binda

Product Description

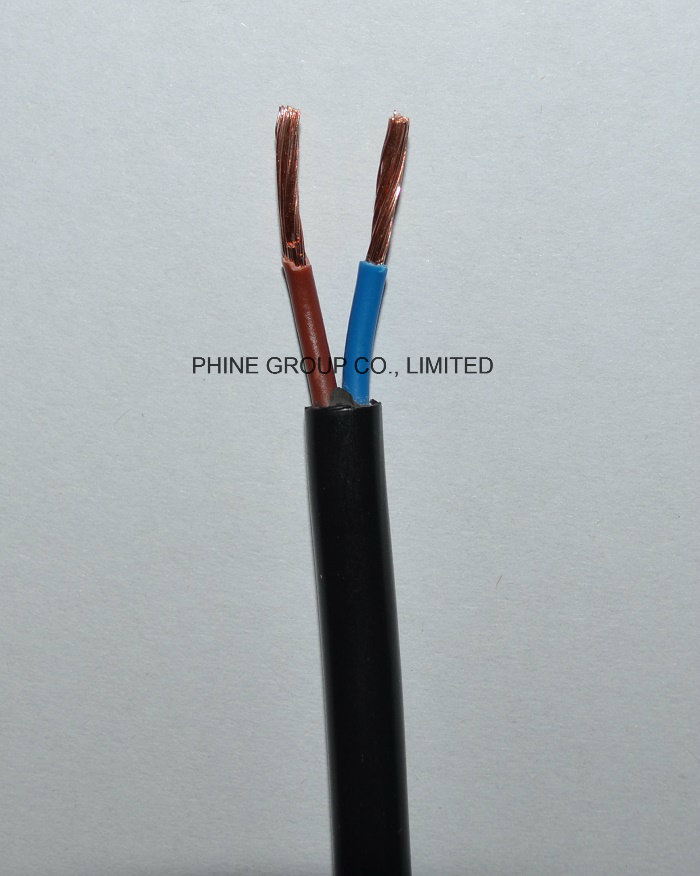

UL2464 PVC Electrical Wire and Cable

Product Description & Parameters

Suitable for electronic equipment matching wiring, inside and outside of machine (such as office computer system, recorder, X machines etc.)
Can be used as a measurement, detection and control cable.Used in machine tool manufacturing, equipment installation, power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
Good heat resistance, cold resistance and flame retardant.
Able to bear external mechanical forces and certain wear resistance.
Shielding anti-interference characteristics

Product structure

Conductor				Insulation		Drain wire	Braiding	Jacket		Max. conductor resistance at 20ºC (Ω/km)	Compressive strength(VAC,1min)
Size AWG	Structure NO./mm	O.D. mm	Core No.	Thick mm	O.D. mm	Structure	Structure NO./mm	Thick mm	O.D. mm	Max. conductor resistance at 20ºC (Ω/km)	Compressive strength(VAC,1min)
28	7/0.127	0.38	2	0.41	1.2	7/0.127	64/0.1	0.8	4.50	239	2000
			3	0.41	1.2		64/0.1	0.8	4.70
			4	0.41	1.2		80/0.1	0.8	5.00
			5	0.41	1.2		80/0.1	0.8	5.40
			6	0.41	1.2		80/0.1	0.8	5.70
			7	0.41	1.2		80/0.1	0.8	5.70
			8	0.41	1.2		96/0.1	0.8	6.10
26	7/0.16	0.48	2	0.41	1.3	7/0.16	64/0.1	0.8	4.70	150	2000
			3	0.41	1.3		64/0.1	0.8	4.90
			4	0.41	1.3		80/0.1	0.8	5.20
			5	0.41	1.3		80/0.1	0.8	5.60
			6	0.41	1.3		96/0.1	0.8	6.00
			7	0.41	1.3		96/0.1	0.8	6.00
			8	0.41	1.3		96/0.1	0.8	6.40
24	11/0.16	0.61	2	0.41	1.45	11/0.16	80/0.1	0.8	5.00	94.2	2000
			3	0.41	1.45		80/0.1	0.8	5.20
			4	0.41	1.45		80/0.1	0.8	5.60
			5	0.41	1.45		96/0.1	0.8	6.00
			6	0.41	1.45		96/0.1	0.8	6.40
			7	0.41	1.45		96/0.1	0.8	6.40
			8	0.41	1.45		112/0.1	0.8	6.80
22	17/0.16	0.76	2	0.42	1.6	17/0.16	80/0.1	0.8	5.30	59.4	2000
			3	0.42	1.6		96/0.1	0.8	5.50
			4	0.42	1.6		96/0.1	0.8	5.90
			5	0.42	1.6		96/0.1	0.8	6.40
			6	0.42	1.6		112/0.1	0.8	6.90
			7	0.42	1.6		112/0.1	0.8	6.90
			8	0.42	1.6		120/0.1	0.85	7.50
20	26/0.16	0.94	2	0.43	1.8	26/0.16	80/0.1	0.8	5.70	36.7	2000
			3	0.43	1.8		96/0.1	0.8	6.00
			4	0.43	1.8		96/0.1	0.8	6.50
			5	0.43	1.8		112/0.1	0.8	7.00
			6	0.43	1.8		112/0.1	0.85	7.60
			7	0.43	1.8		112/0.1	0.85	7.60
			8	0.43	1.8		120/0.1	0.88	8.20

Packaging & Shipping
Packaging Details:Delivery Detail:

Package:
1. Rolls + carton: 100M/Roll,305M/Roll,610M/Roll.or other can be choose
2. According to customer requirement.

7-15 days

Certification
We passed UL, CCC, CE, VED etc.
I will give you copy of certification if you need more information.
