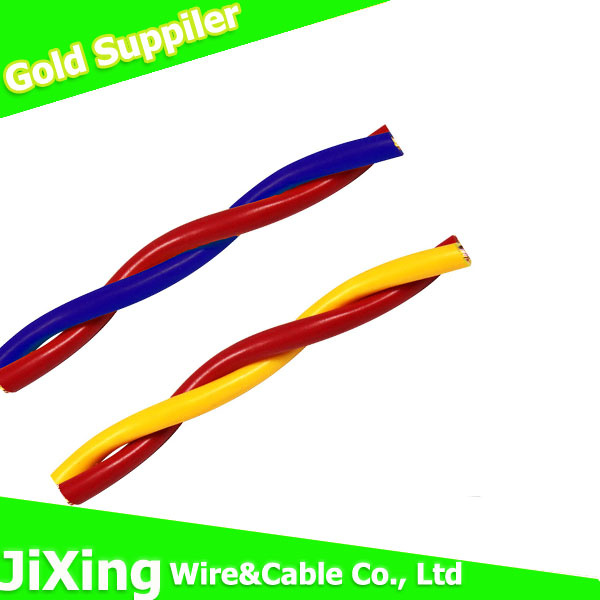

PVC Electrical Wire Cable with 300/500 V

Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CE
Range Of Application:	Construction
Brand:	Yongkuntai

Product Description

Pvc Electrical Wire cable with 300/500 V


Specification reference:

model	structure	rated voltage	cross section
BV	sheath: pvc  conductor:rigid copper solid/stranded	300/500V 450/750V	custom
BVV	double sheath:pvc  conductor:rigid copper stranded	450/750V	custom
BVVB	double sheath:pvc  double core:rigid copper solid/stranded	300/500V	custom
RV	sheath:pvc   conductor:flexible copper stranded	450/750V	custom
BVR	sheath:PVC  conductor:rigid copper stranded	450/750V	custom
RVS	sheath:PVC  conductor:flexible copper  stranded	300/500	custom
BLV	sheath:PVC conductor:rigid aluminium solid/stranded	450/750V	custom

Company information:

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the qulity of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
