| Prod Model: |
PVC extruder coil heater |
| Weight: |
0.1kgs or Customized |
| Voltage: |
110-380V / 50-60Hz |
| Power(W): |
100~3000W |
| Working Temperature: |
≤800ºC |
| Length: |
≤1900mm or Customized |
| Insulation Material: |
Glass Fiber/Metal Braided She |
| Section Of Wire: |
3X3, 4.2X2.2, 4X2, 4.5, 3.5 |
| Electric Wire: |
Nicr8020 |
| Max Temperature: |
650ºC |
| Fitting-: |
Thermocouple K/J/ Customise |
Product Description

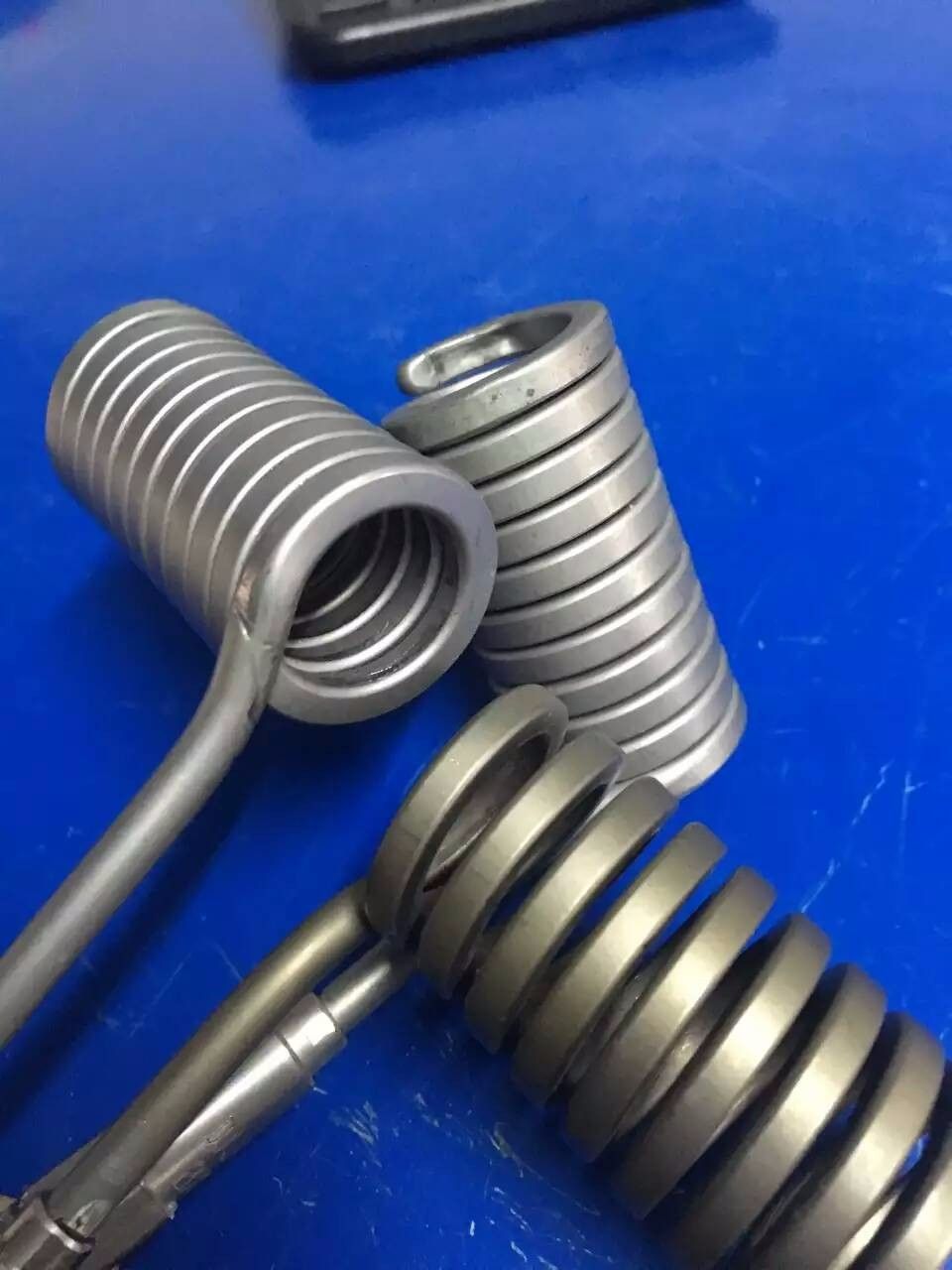

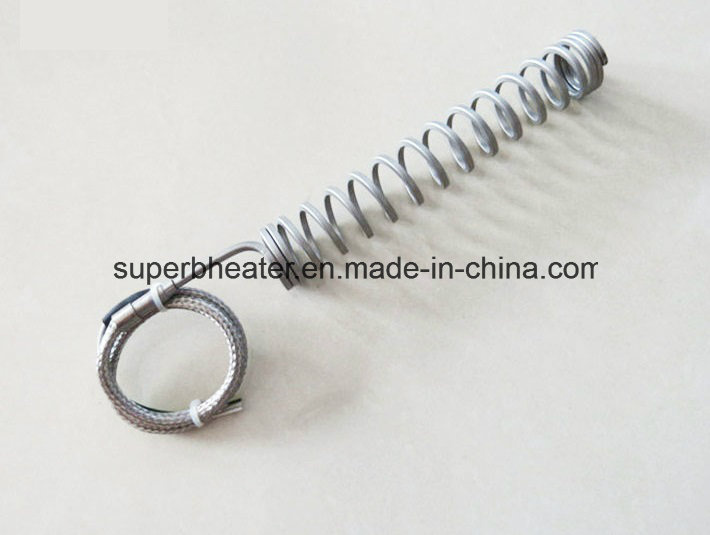

PVC extruder hot runner coil heater spring coil heater heating element
Description

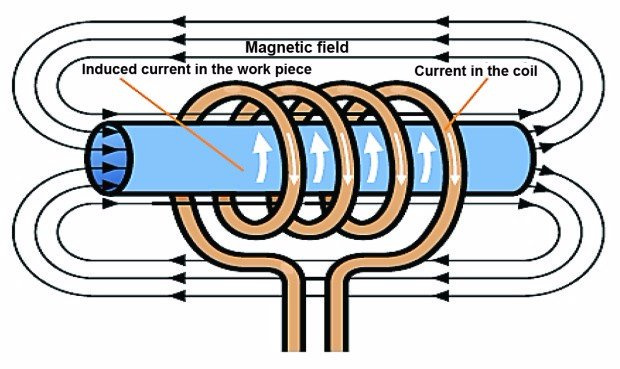

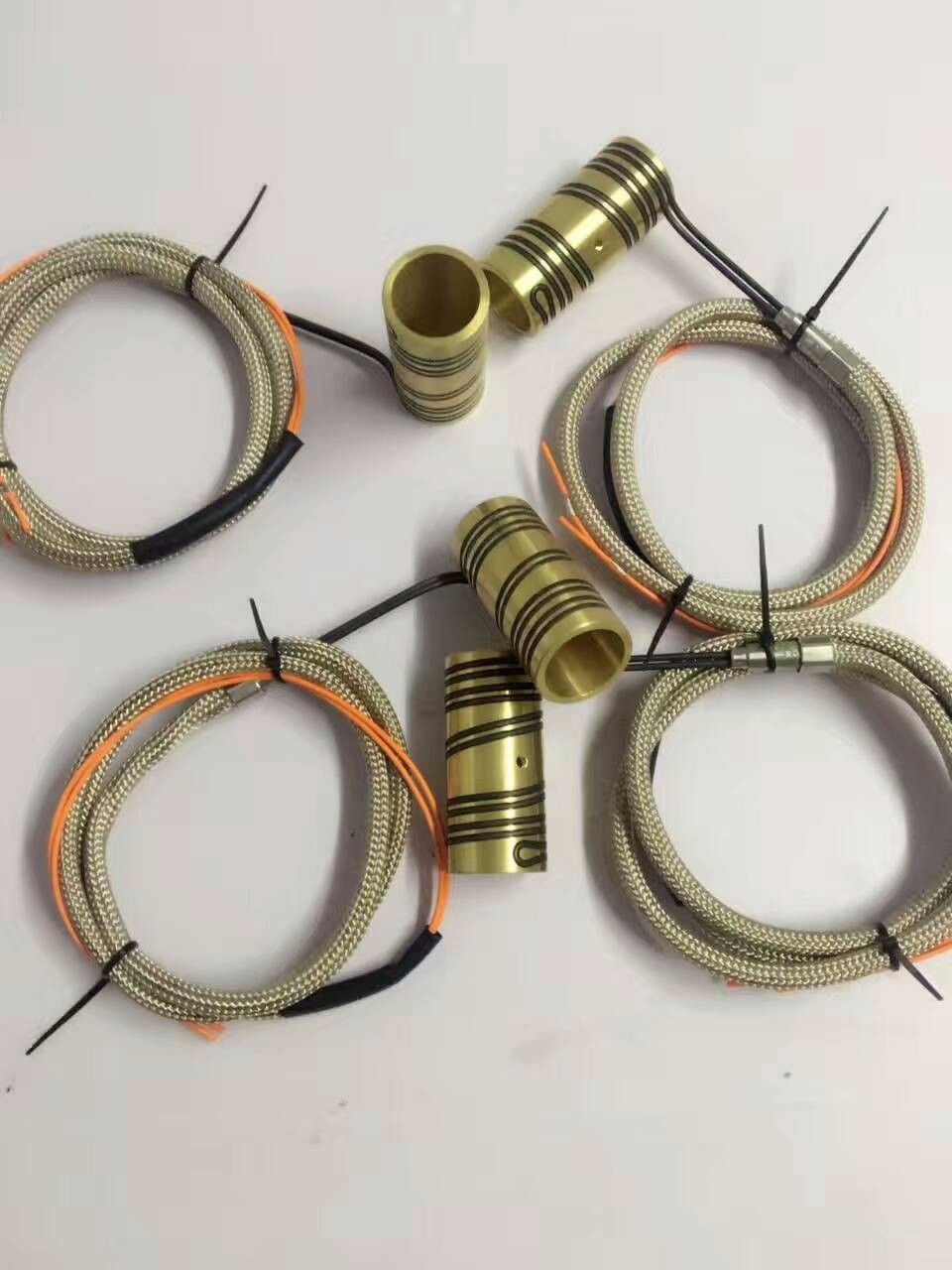

when thicker metal in an alternating magnetic field, it will produce electric current .The metal current become stronger , temperature of metal became higher. The device is a kind of energy-saving equipment . it is installed in the combustion equipment before combusting, the high temperature (105 DEG -150 DEG) issued to reduce the fuel oil viscosity, promote full combustion . Hot Runner Coil Heater are widely used in hot-runner molds,blow molding,extrusion and hot nozzles.The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
1.The A class products of our company has the function of water proof
2.Standard voltage 230 V, We can make the voltage as you need
3.The normal cable length is 1000mm ,also we can make the length as you need
4.The leading wire type use fiberglass silicone copper wire ,PTFE wrapped copper wire ,and others should be customized 5.Material:SS304,Mgo ,Heating coil
6.Surface highest temperature as your requirement :750°C
7.Various sizes of cross section for your choice,including special specification.
8.Power density reaches 20 w/cm square.
9.Thermocouple type J/K/E can be attached.
10.High temperature Teflon lead wire and stainless steel shield provided.
11.1 year guarantee time
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Unheated Length | 35mm (Standard) |
| Maximum Sheath Temperature | 700°C |
| Insulation Material | MgO |
| Resistance Wire | Ni Cr 80-20 |
Applications
---Hot runner nozzles&Bushings
---Injection moulding machine nozzle
---Packaging Machinery
---Injection &Blow Moulding Machine nozzles
---Hot runner Mainfolds
---PET perfrom &Thin wall container Moulds
---Other electricc heating industry
Technical datasheet
| Sheath of coil heater | SUS304 |
| Insulation of coil heater | Compacted magnesium Oxide |
| Heating conductor | NiCr8020 |
| Thermocouple | K type, J type (optional) |
| Leads | Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand) |
| Voltage | 24V to 415V |
| Temperature resistance | Max 800 cent degree |
Specification
| Model | Dimension (mm) | Voltage (V) | Power(W) |
| JYJRB- Ø45X50 | Ø15X80 | 220 | 1000 |
| JYJRB- Ø22X160 | Ø20X155 | 230 | 1200 |
| JYJRB- Ø40X40 | Ø16X200 | 220 | 400 |
| JYJRB- Ø30X50 | Ø20X200 | 220 | 400 |

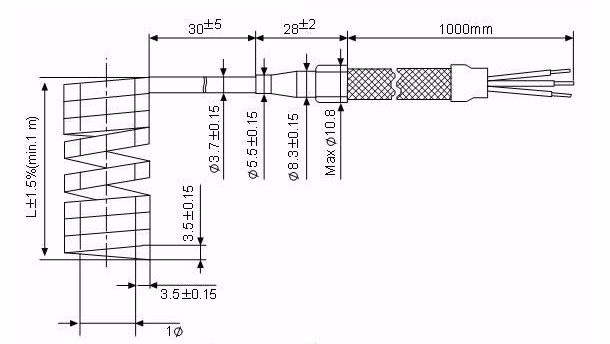

Drawing

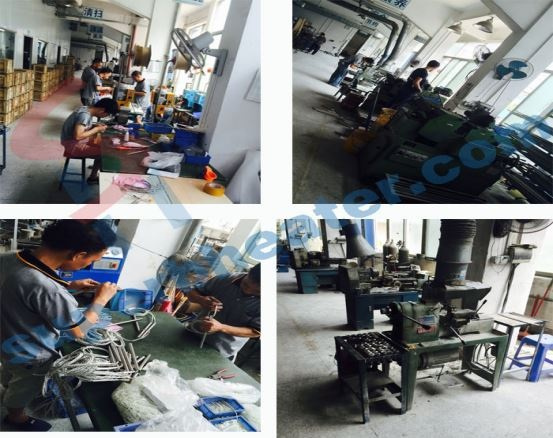

our workshop
Superb Heater Technology has been focused on the production of
PVC extruder hot runner coil heater spring coil heater heating element since 1985, which is well-known as one of the leading manufacturers and suppliers of tubular heaters 12 stations rolling mill reducing shrinking machines. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
