PVC Hook up Wire Electrical Wiring Electric Wire Cable

Name: PVC Hook up Wire Electrical Wiring Electric Wire Cable
Brand: all-electronics-online.com
SKU: 797296815
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 0.12-0.67/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

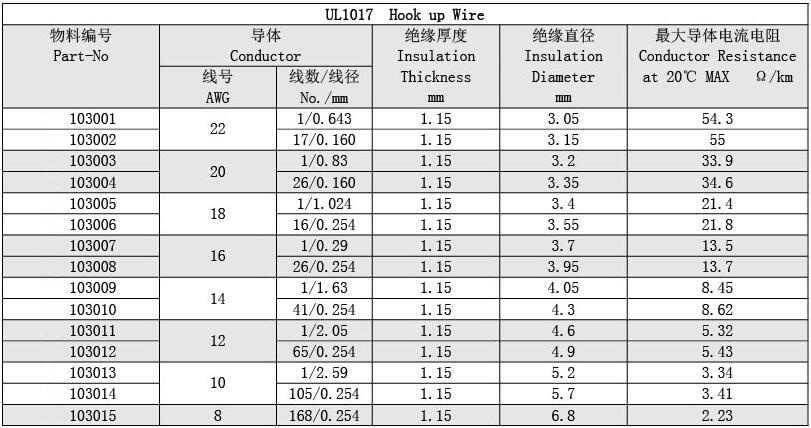

Prod Model:	UL1017
Item Name:	PVC Electric Wire Cable
Voltage:	600V
Temperature Range:	- 20c to + 105c
Color:	Any Color
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	RoHS
Application:	Electrical and Electronic Equipment
Conductor Material:	Tinned Copper
Sheath Material:	No
Brand:	Joca

Product Description

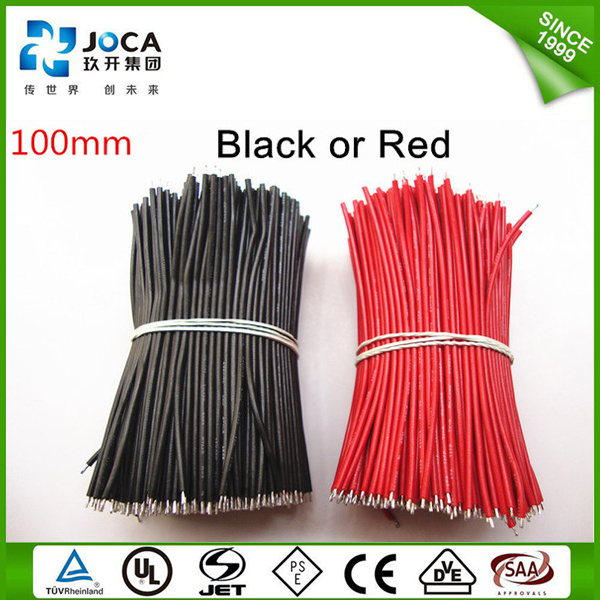

PVC Hook up Wire Electrical Wiring Electric Wire Cable

Conductor:
• 24 thru 10 AWG
• Fully annealed tinned copper per ASTM B-33
• Solid or stranded

Insulation:
• Premium-grade, color-coded PVC
• Temperature range: - 20C to + 105C
• Color Code: See chart below

Applications:
• Internal wiring of electrical and electronic equipment
• Internal wiring of panels and meters
• Point-to-point wiring
• Suggested voltage rating: 600 volts

Compliances:
• UL Style 105C, 600V
• CSA Type TEW
• Designed to meet UL VW-1 Vertical Wire Flame Test

Packaging:
• According to customer requirement.

Color Code Chart

ORDERING SUFFIX	COLORS	ORDERING SUFFIX	COLORS
1	Black	6	Green
2	White	7	Blue
3	Red	8	Brown
4	Orange	10	Gray
5	Yellow	19	Violet

Striped combinations available upon request, consult Customer Service.

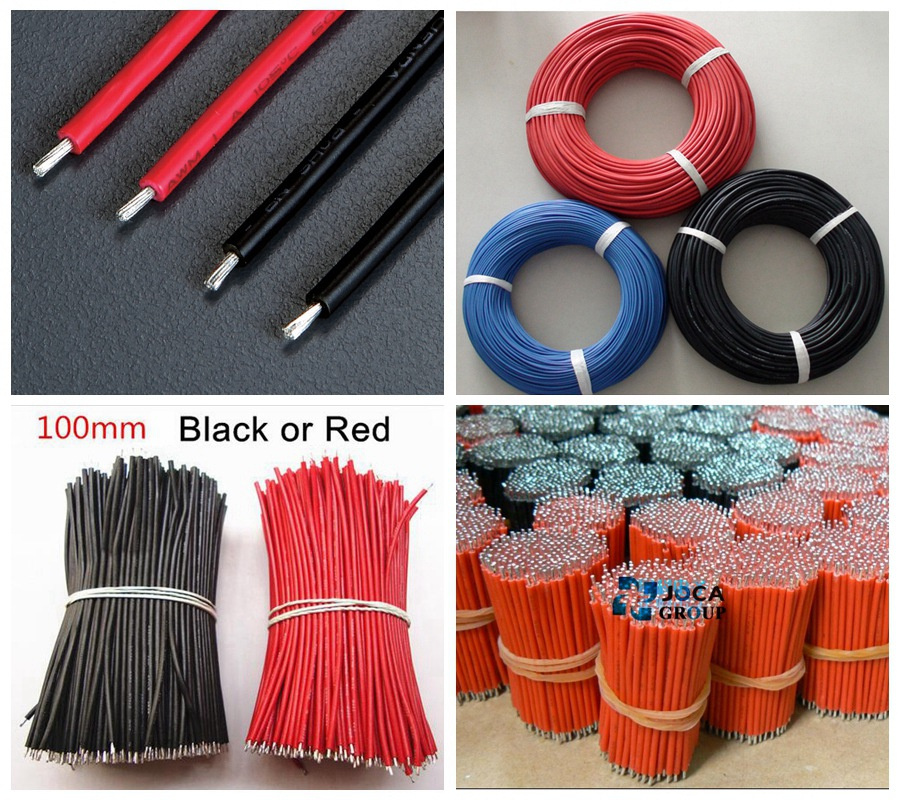

PVC Hook Up Wire

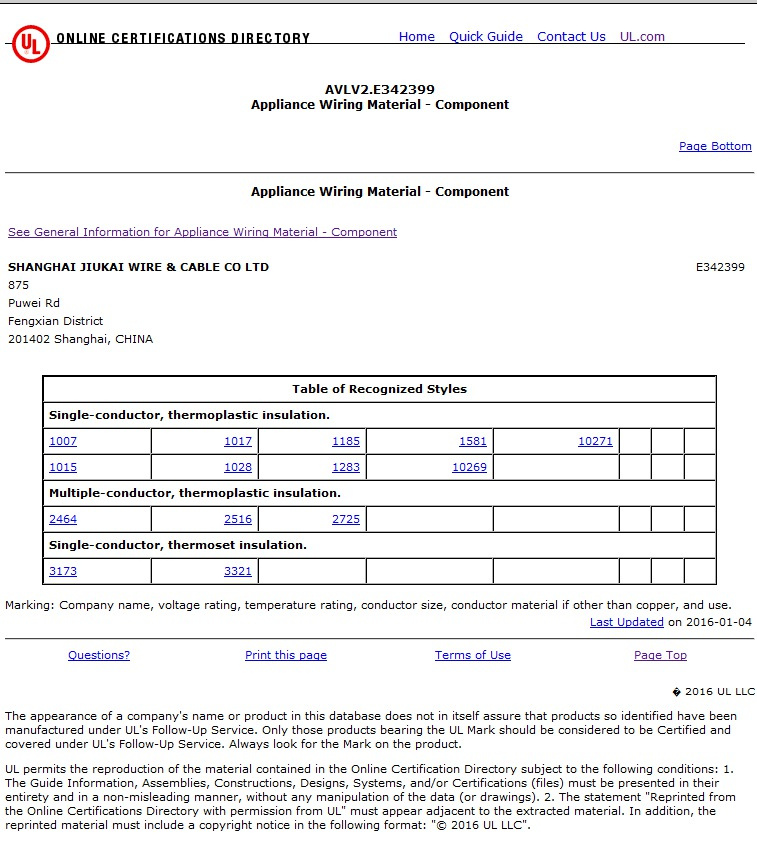

UL Certification

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory(manufacture).

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we offer free samples.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Q: What is the delivery term?
A: Our delivery term have EXW, FOB, CIF, DDU and DDP. It's according to your demand.

...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."

----Alex Jones, G. M of Saudi Cable Wholesaler

Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.

Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
