Zhengzhou Jinshui Industry and Commerce Co., Ltd. >> PVC Insulated Copper Conductor Electric Wire

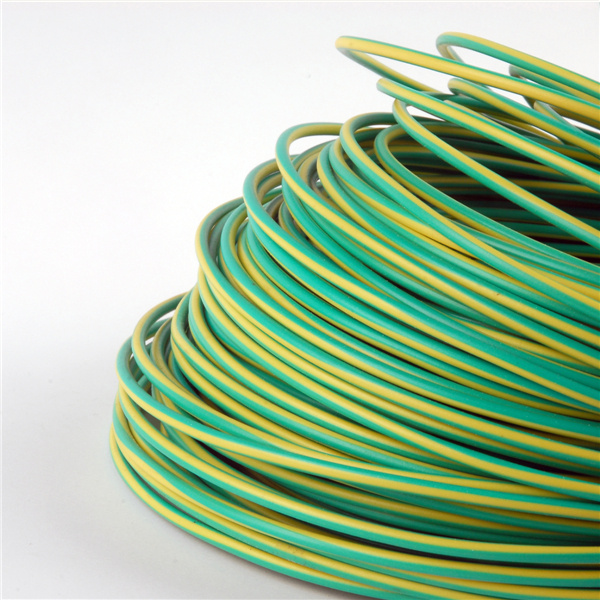

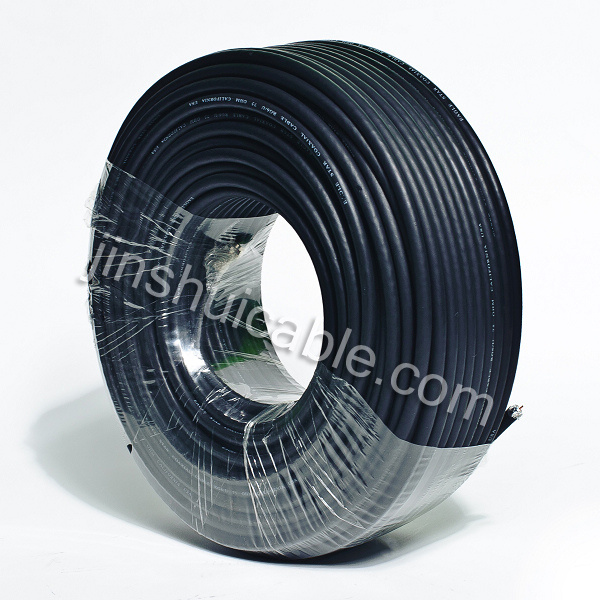

PVC Insulated Copper Conductor Electric Wire

PVC Insulated Copper Conductor Electric Wire
Price: NegotiableKM
Trade Terms: FOB,CFR,CIF
Min Order: 50KM
Pay Type: L/C,T/T,D/P
Prod Model: PVC insulation materials
Markets: North America,Southeast Asia,Africa,Mid East
Material: 99.7% Pure Copper Conductor
Guarantee: 2 Year Guarantee
Type: Insulated
Conductor Type: Stranded
Conductor Material: Copper
Insulation Material: PVC
Certification: CCC
Application: Indoor

Product Description

Copper Core PVC Insulated Electric Wire/Building Wire

Features of electric wires
The long term working temperature of electric wire should be less than 70 degree. And the long term working temperature of RV-90 electric wire should be less than 90 degree.

Application
Electric wires are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V. Used for home appliances, power and lighting and the places where flexible require. Architecture and household cloth wires.


TypeNameLaying place and requirementLong term working temperature
227IEC01/05
BV
BLV
Copper conductor PVC insulated wiresFixed laid indoors,conduits etc.70
Aluminum Conductor PVC insulated wires
227IEC07
BV-90
Heat resistant copper conductor PVC insulated wires at 90Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.90
BVRCopper conductor PVC insulated flexible wireBe for laying permanent place where flexible required70
227IEC10
BV
Copper conductor PVC insulated PVC sheathed round wiresFixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.70
BLVAluminum conductor PVC insulated PVC sheathed round wires
BVBCopper conductor PVC insulated PVC Sheathed flat wires
BLVBAluminum conductor PVC insulated sheathed flat wires
227IEC02RV
227IEC06RV
Copper conductor PVC insulated flexible connectorMainly used at middle and light stylemoving electronics,home appliances,power and lighting and the places where flexible required.70
227IECC42
RVB
Copper conductor PVC insualted flat flexible connector
RVSCopper conductor PVC insulated flexible twisting connector wire

227IEC53
RW
Copper conductor PVC insulated PVC sheated round flexible connector(light and common type)
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.

Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.

Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.

With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.

With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
