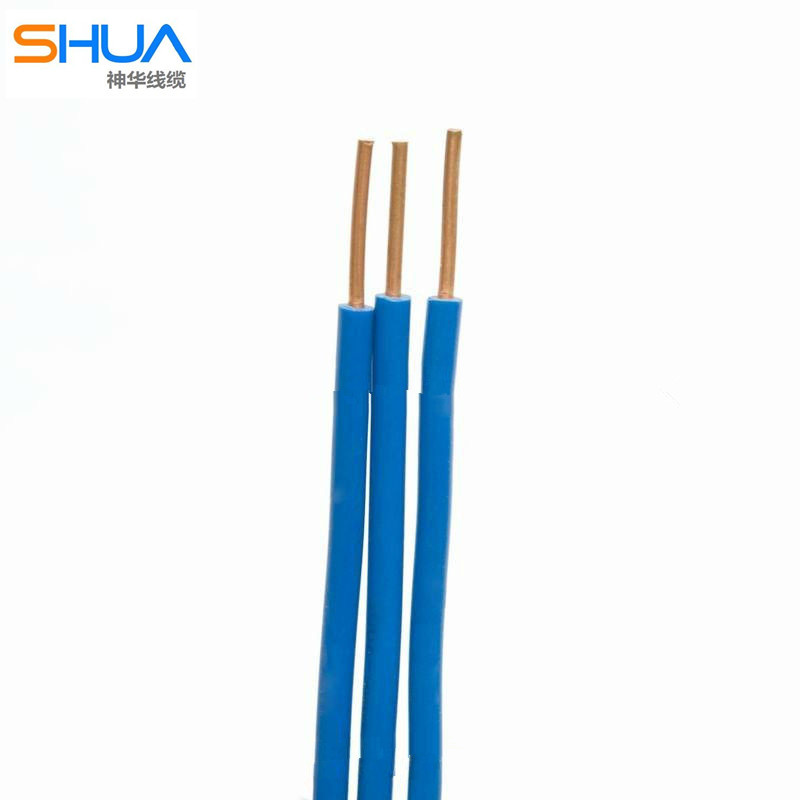

PVC Insulated Copper Conductor Thw Cable Electric Wire

Name: PVC Insulated Copper Conductor Thw Cable Electric Wire
Brand: all-electronics-online.com
SKU: 756416285
Availability: InStock
Rating: 5 (143 reviews)

Price:	US $ 0.5-10/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHUA0160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ:	100m
Packaging Details:	Wooden Drums or Iron-Wooden Drum
Delivery Detail:	Within 20 Days or Based on Your Quantity
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	CCC
Sheath Material:	Nylon
Brand:	Shua

Product Description

Detailed Product Description
1, Manufacturer&Factory
2, Standard: UL83
3, Factory Price with Good Quality
4, Specializing in the export of American market

THW /TW Cable
Specification:
Operating Voltage 600 V.
Standards: UL83
Building wires types THW/TW according to America standards UL 83&UL 1581

Construction:

Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Color: Red, yellow, blue, black, brown, green, green/yellow, white &grey

APPLICATION: General purpose building wiring for lighting and power - residential, commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75° C in wet or dry locations, for circuits not exceeding 600 volts.

Item Spec.	AWG SIZE	No./Diameter of conductor (mm)	Insulation thickness (mm)	Max.outer diameter (mm)	Ref .Weight(km/kg)
THW-16B	16	7/0.49	0.76	2.8	19
THW-14B	14	7/0.62	0.76	3.4	29
THW-12B	12	7/0.78	0.76	3.9	42
THW-10B	10	7/0.98	0.76	4.5	62
THW-8B	8	7/1.23	1.14	6	103
THW-6B	6	7/1.56	1.52	7.8	169
THW-4B	4	7/1.96	1.52	9	249
THW-3B	3	7/2.20	1.52	9.7	306
THW-2B	2	7/2.47	1.52	10.5	376
THW-1B	1	19/1.68	2.03	12.5	487
THW-1/0B	1/0	19/1.89	2.03	13.6	600
THW-2/0B	2/0	19/2.12	2.03	14.7	739
THW-3/0B	3/0	19/2.38	2.03	16	912
THW-4/0B	4/0	19/2.67	2.03	17.5	1130
THW-16A	16	1/1.29	0.76	2.9	19
THW-14A	14	1/1.63	0.76	3.2	27
THW-12A	12	1/2.05	0.76	3.6	39
THW-10A	10	1/2.59	0.76	4.1	59
THW-8A	8	1/3.26	1.14	5.6	98

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
