| Prod Model: |
bvvb Flat Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
300V/500V |
| Standard Length: |
100m/Roll |
| Working Temp: |
0°c-70°c |
| Size: |
0.5-10mm² |
| Color: |
White or as Customer's Request. |
| Conductor: |
Stranded Bare Copper |
| Cores: |
as Client's Requirement |
| Lenght: |
100m/Reel |
| Delivery: |
15-20days After Payment |
| Model: |
BVVB Flat Cable |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Application: |
Construction |
| Range Of Application: |
Power and Lighting |
| Brand: |
Yongkuntai |
Product Description

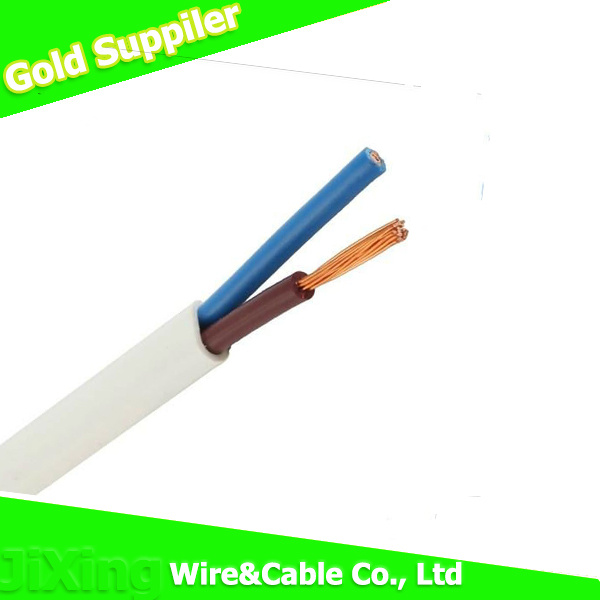

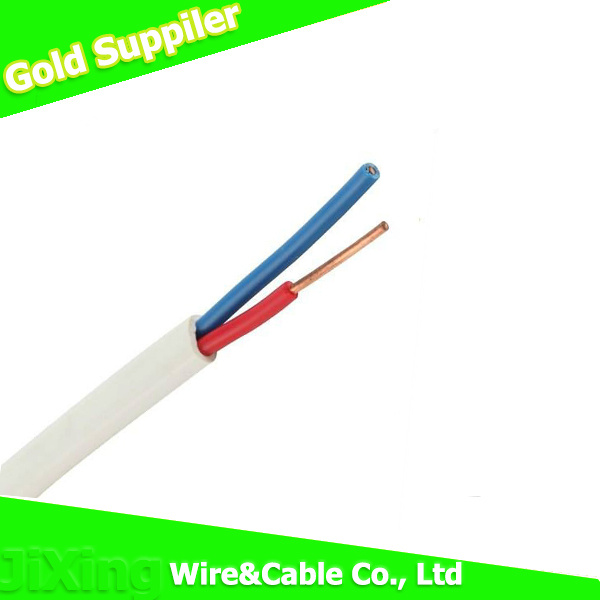

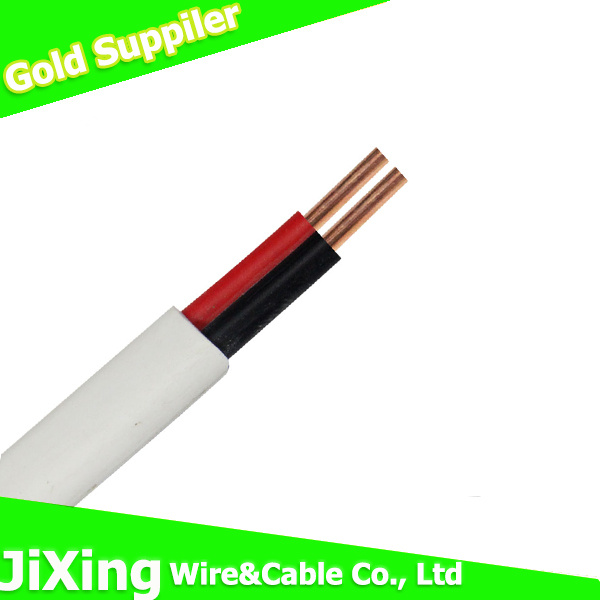

Multi Cu Conductor PVC Insulated and Sheathed Flat Cable (Wire)Specification:
Type:bvvb Flat Cable
Nominal Voltage:300V/500V
Delivery:15-20days after payment
Application:
The electrical wire flat cable is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively.
We can supply this electrical wire flat cable according to different recognized standards, such as BS, IEC, ASTM, DIN, AS/NZS, and customers' special specification also can be satisfied.
Flat Type |
| Type | Nominal Section (mm² ) | Construction of Conductor (mm) | Insulation Thickness (mm) | Jacket Thickness (mm) | Min out size (mm) | Max out size(mm) | Conductor Resistance at 20º C Ω /km |
|
| 300/500V | 2 x 0.75 | 2 x 1/0.97 | 0.6 | 0.9 | 3.8 x 5.9 | 4.6 x 7.1 | 24.5 |
| 2 x 1.0 | 2 x 1/1.13 | 0.6 | 0.9 | 3.9 x 6.1 | 4.8 x 7.4 | 18.1 |
| 2 x 1.5 | 2 x 1/1.38 | 0.7 | 0.9 | 4.4 x 7.0 | 5.3 x 8.5 | 12.1 |
| 2 x 2.5 | 2 x 1/1.78 | 0.8 | 1 | 5.1 x 8.4 | 6.2 x 10.1 | 7.41 |
| 2 x 4.0(A) | 2 x 1/2.25 | 0.8 | 1 | 5.6 x 9.2 | 6.7 x 11.1 | 4.61 |
| 2 x 4.0(B) | 2 x 7/0.85 | 0.8 | 1 | 5.7 x 9.5 | 6.9 x 11.5 | 4.61 |
| 2 x 6.0(A) | 2 x 1/2.76 | 0.8 | 1.1 | 6.2 x 10.4 | 7.5 x 12.5 | 3.08 |
| 2 x 6.0(B) | 2 x 7/1.04 | 0.8 | 1.1 | 6.4 x 10.8 | 7.8 x 13.0 | 3.08 |
| 2 x 10 | 2 x 7/1.35 | 1.0 | 1.2 | 7.9 x 13.4 | 9.5 x 16.2 | 1.83 |
| 3 x 0.75 | 3 x 1/0.97 | 0.6 | 0.9 | 3.8 x 7.9 | 4.6 x 9.6 | 24.5 |
| 3 x 1.0 | 3 x 1/1.13 | 0.6 | 0.9 | 3.9 x 8.4 | 4.8 x 10.1 | 18.1 |
| 3 x 1.5 | 3 x 1/1.38 | 0.7 | 0.9 | 4.4 x 9.6 | 5.3 x 11.7 | 12.1 |
| 3 x 2.5 | 3 x 1/1.78 | 0.8 | 1 | 5.1 x 11.6 | 6.2 x 14.0 | 7.41 |
| 3 x 4.0(A) | 3 x 1/2.25 | 0.8 | 1 | 5.8 x 13.1 | 7.0 x 15.8 | 4.61 |
| 3 x 4.0(B) | 3 x 7/0.85 | 0.8 | 1 | 5.9 x 13.5 | 7.1 x 16.3 | 4.61 |
| 3 x 6.0(A) | 3 x 1/2.76 | 0.8 | 1.1 | 6.2 x 14.5 | 7.5 x 17.5 | 3.08 |
| 3 x 6.0(B) | 3 x 7/1.04 | 0.8 | 1.1 | 6.4 x 15.1 | 7.8 x 18.2 | 3.08 |
| 3 x 10 | 3 x 7/1.35 | 1.0 | 1.2 | 7.9 x 19.0 | 9.5 x 23.0 | 1.83 |
Shenzhen jixing wire&cable co.,ltd .is a specializing in the production of wire and cable, our products : 0.6/1kv plastic insulation,cross-linked insulated power cable,LSZH cables environmentally friendly,flame retardant cables,fire resistant cables,aluminum cable,branch cable,B series(rated voltage 450/750 and bellow) plastic wire and cable,XLPE wires and specifications.
Company has the most advanced testing equipment and production equipement,quality has reached the national and industry standards.
Jixing Cables:
1 Bare Conductor, Bare Copper Rod, Bare Aluminum Rod.
2 450/750V and below PVC Insulated Electrical Wires and Power Cables.
3 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.
4 0.6/1kV PVC Insulated Power Cables.
5 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6 450/750V and below Control Cables.
7 1kV Aerial Bundled Cables.
Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
