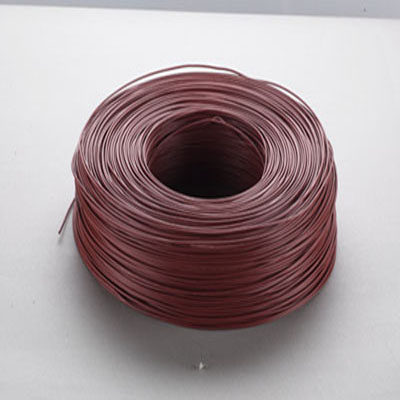

PVC Insulated Electrical Wire with UL Certificate

Name: PVC Insulated Electrical Wire with UL Certificate
Brand: all-electronics-online.com
SKU: 776475305
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 0.49/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	PVC
Conductor:	Copper
Environmental Standard:	RoHS
Reference Standard:	UL758 UL1581
Color:	as Per Customer's Requirement
Length Of Cable:	as Per Customer's Requirement
Testing:	Passes UL VW-1 Vertical Flame Test
Rated Voltage:	600V
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS

Product Description

Name:UL1015 PVC Insulated Electrical Wire
Rated Temperature: 105°°C
Conductor:Copper
Insulationl:PVC
Rated Voltage:330V/600V
Environmental Standard:RoHS
Export Markets:Southeast Asia, Africa and others
Jacket Material:Environment-friendly PVC
Length of Cable:As Per Customer's Requirement
Color:As Per Customer's Requirement

Conductor			Insulation		Maximum Resistance At 20ºC Ω/km	Packing
Spec AWG	Conductor construction No./φmm	Diameter (mm)	Nominal thickness (mm)	Nominal outer diameter (mm)	Maximum Resistance At 20ºC Ω/km	M/Coils
30	7/0.102	0.3	0.80	1.90	381	610
28	7/0.127	0.38	0.81	2.00	239	610
26	7/0.16	0.48	0.81	2.10	150	305
24	11/0.16	0.61	0.82	2.25	94.2	305
22	17/0.16	0.76	0.82	2.40	59.4	305
20	26/0.16	0.94	0.81	2.55	36.7	305
18	41/0.16	1.18	0.81	2.80	23.2	305
16	26/0.254	1.49	0.81	3.10	14.6	200
14	41/0.254	1.88	0.81	3.50	8.96	200
12	65/0.254	2.36	0.82	4.00	5.64	200
10	105/0.254	3.00	0.85	4.70	3.546	100
