PVC Insulated Flat Twin and Earth Cable Wire
| Price: |
US $ 0.5-60/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
Electric wire |
| Rated Voltage: |
300/500V |
| Cores: |
2,3,4 |
| Cross Section: |
1.0/1.5/2.5/4.0/6.0 |
| Price: |
Direct Factory Price |
| Certification.: |
Ce |
| Standard.: |
BS6004:2000 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Indoor |
| Brand: |
Rneda |
Product Description
PVC Insulated flat twin and earth Cable Wire
Application:
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface,
on trays or in free air where mechanical damage would not be an issue. Suitable for laying in conduit or trunking
where mechanical protection is required.
|
| Standards: BS 6004:2000 |
| Conductor:Plain copper conductors to BS EN 60228 |
| Class 1 solid: 1.0mm², 1.5mm² and 2.5mm² |
| Circuit Protection Conductor (Earth): |
| Class 1 solid plain copper conductor: 1.0mm², 1.5mm² and 2.5mm² |
| Insulation: PVC type TI 1 to BS EN 50363-3:2005 |
| Sheath: PVC (Polyvinyl Chloride) to BS 7655-4.2:2000 |
| Sheath Colour: Grey |
| Voltage Rating: 300/500V |
| Temperature Rating:Max: +70ºC |
| Short Circuit: 160°C |
| Minimum Bending Radius: 6 x overall diameter |
| Core Identification: |
| Twin: Brown Blue & bare earth |
Specifications:
2*0.5MM2+1*0.25MM2 |
OD:3.2*6.3MM |
2*0.75MM2+1*0.35MM2 |
OD:4.0*6.6MM |
2*1.0MM2+1*0.50MM2 |
OD:4.2*6.8MM |
2*1.5MM2+1*0.75MM2 |
OD:4.7*8.0MM |
2*2.5MM2+1*1.25MM2 |
OD:5.6*9.5MM |
2*4.0MM2+1*2.00MM2 |
OD:6.0*11.0MM |
Company Information
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certification
FAQ1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
You can use your own express account or prepay us if you do not have an account.
4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep isdelivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

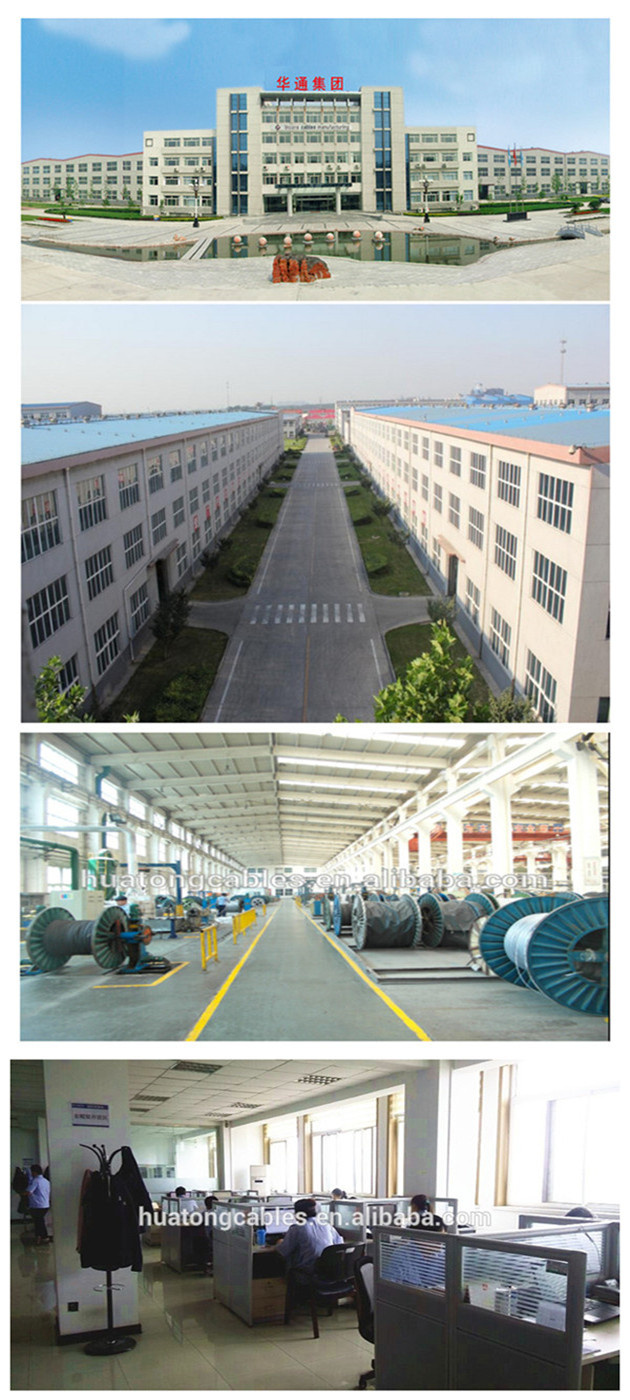

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
