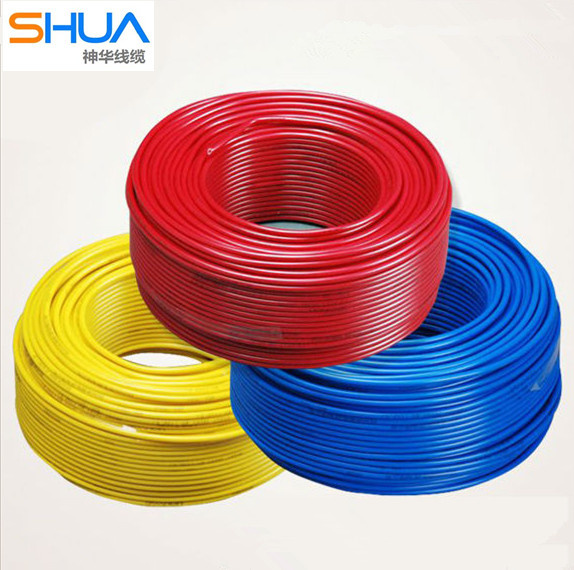

PVC Insulated House Holding Electric Wire

Name: PVC Insulated House Holding Electric Wire
Brand: all-electronics-online.com
SKU: 735532175
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	US $ 0.4-0.5/Meter
Trade Terms:	FOB,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	electric wire
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	as Your Requests
Color:	Blue Yellow Red ,as Your Requests
Delivery Detail:	Within 15 Days or Based on Your Quantity
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC

Product Description

Specifications
House holding electric wire.
1. PVC Insulation.
2. MOQ: 10km.
3. OEM/ODM was accepted.
PVC insulated house holding electric wire
Features of electric wire
The long term working temperature of electric wire should be less than 70 degree.
And the long term working temperature of RV-90 electric wire should be less than 90 degree.

Application of Electric Wire cable
They are widely used as connectors of driving, lighting, electric equipments, instrucment and telecommunication equipments with rated voltage up to 450/750v. Used for home appliances, power and lighting and the places where flexible require. Architecture and household cloth wires.

Manufacturing Standards of Electric copper wire cable

Nominal sectional area mm 2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm 2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
