CEA Group International Co., Ltd. >> PVC Insulated Parallel Flexible Wire H03vh-H (SPT-R)

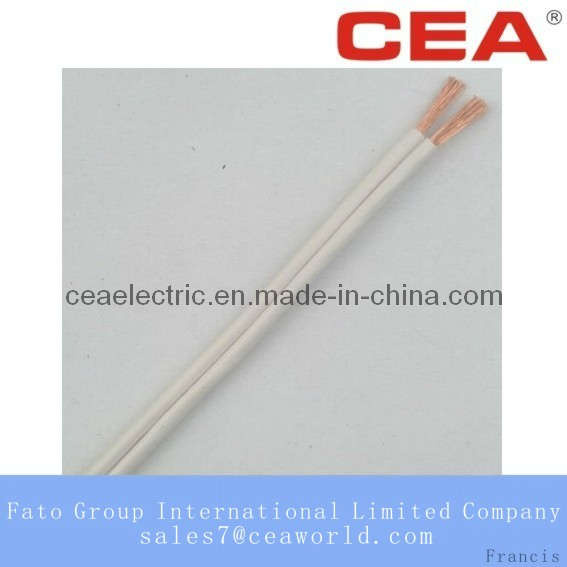

PVC Insulated Parallel Flexible Wire H03vh-H (SPT-R)

PVC Insulated Parallel Flexible Wire H03vh-H (SPT-R)
Price: Negotiable
Trade Terms: FOB
Min Order: 10000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: H03VH-H, SPT-R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material: PVC
Conductor Type: Stranded
Conductor Material: Copper
Type: Insulated
Application: Fixed Installation

Product Description

Parallel twin wires for electric power equipments

Copper conductor PVC insulated parallel flexible wire H03VH-H

Application:
For general purpose wiring of appliance, electromotive tools, all kinds of movable electric equipments.

Rated temperature: 70° C
Rated voltage: 300/300V

Reference standard: GB5023-2008 VDE0281 BS 6004 60227 IEC 42 (RVB)

Construction:
Stranded, tinned or bare copper class 5

Specification:
Conductor Insulation (mm) Maximum
Diameter
(mm)
Min. Insulation Resistance at 70º C
(MΩ • km)
Weight
(kg/km)
Size
(mm 2 )
Construction
(No. /mm)
Thickness Nominal
Diameter
2× 0.5 2× 28/0.15 0.8 2.61× 5.22 3.0× 5.9 0.016 22.8
2× 0.75 2× 42/0.15 0.8 2.86× 5.72 3.1× 6.3 0.014 29.3
