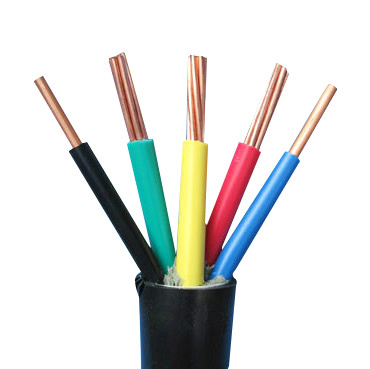

PVC Insulated Power Cable

Name: PVC Insulated Power Cable
Brand: all-electronics-online.com
SKU: 708014315
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Application:	Underground
Certification:	RoHS
Brand:	Refine

Product Description

-APPLICATION:

With its stable capacity, advanced technology, broad materials resources, competitive price, excellent flexibility, the PVC insulated power cables are widely used in distribution line with A. C. 50Hz and rated voltage 10kV or below.

- Manufactured strictly according to the international standards, quality guaranteed, national inspection free products.

1) Rated voltage: 10kV or below
2) Number of cores: One, two, three, four, five
3) Relative manufacturing standards: IEC60505, BS, DIN

Technical Data for the PVC insulated power cables as follows

Type	No. of cores	Rated Voltage KV
		0.6/1		1.8/3		3.6/6, 6/6, 6/10
		Nominal section area mm 2
		CU	AL	CU	AL	CU	AL
PVC insulated PVC/PE sheathed power cable	1	1.5~800	2.5~1000	10~800	10~1000	10~1000	10~1000
	2	1.5~185	2.5~185	10~185	10~185	10~150	10~150
	3	1.5~300	2.5~300	10~300	10~300	10~300	10~300
	3+1	4~300		4~300
	4	4~185		10~185
	3+2	4~300		10~300
	5,4+1	4~185		10~185
PVC insulated steel-tape armored PVC/PE sheathed power cable	1	10~1000		10~1000		10~1000
	2	4~185		10~185		10~150
	3	4~300		10~300		10~300
	3+1	4~300		10~300
	4	4~185		10~185
	3+2	4~300		10~300
	5,4+1	4~185		10~185
PVC insulted fine steel-wire armored PVC/PE sheathed power cable	3	4~300		-		16~300
PVC insulated steel-wire armored PVC/PE sheathed	3	4~300		-		16~300

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
