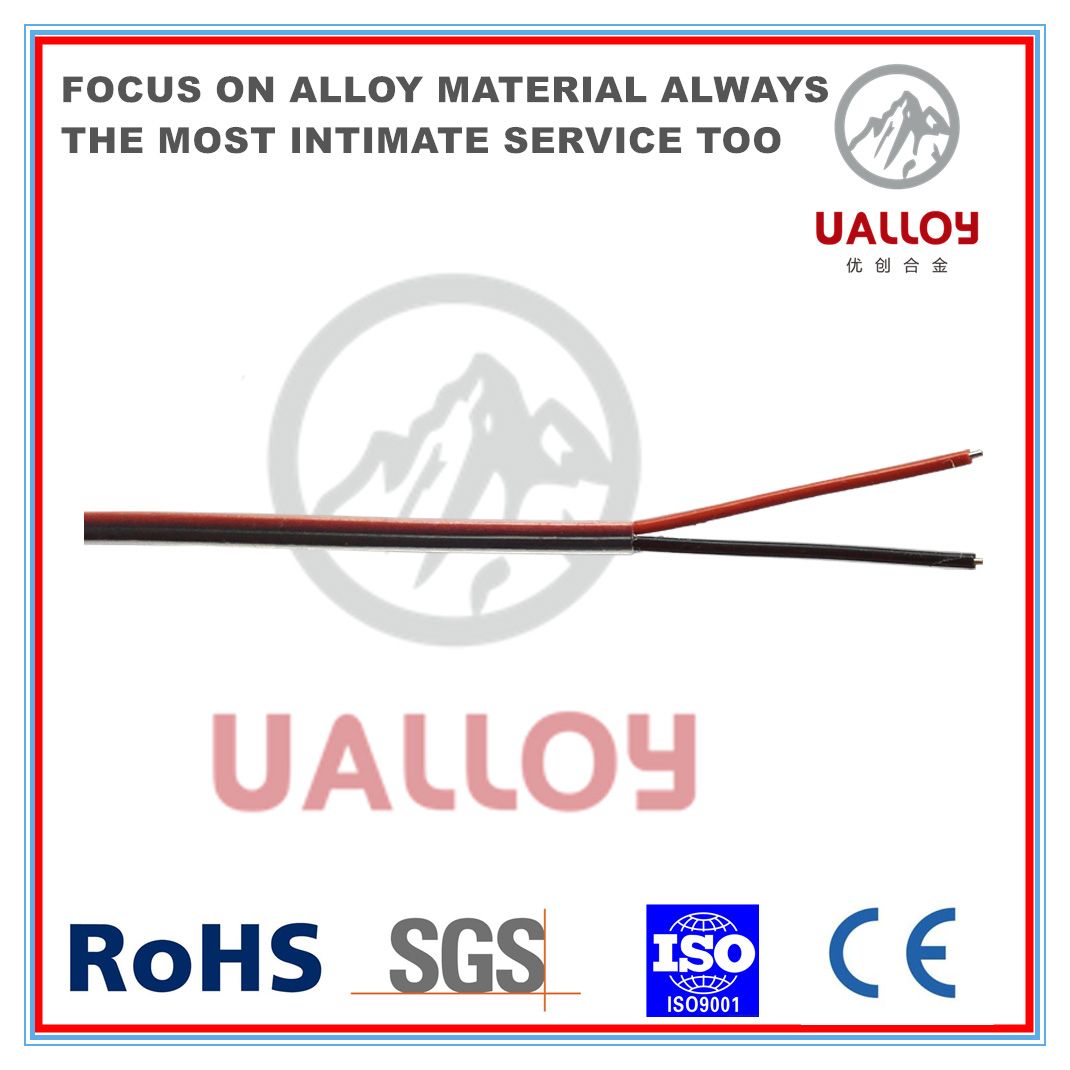

PVC Insulated Thermocouple Cable

Name: PVC Insulated Thermocouple Cable
Brand: all-electronics-online.com
SKU: 782737755
Availability: InStock
Rating: 4.5 (105 reviews)

Price:	US $ 0.52-0.62/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Type K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Diameter:	0.2mm to 3.2mm
Positive Pole:	Chromel
Negative Pole:	Alumel
Temperature Range:	-40~1100
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Aluminum
Insulation Material:	PVC
Certification:	RoHS

Product Description

PVC Insulated Thermocouple Cable
The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national
defense industry, etc.
More details about the product:

Item No.	K-LP-LP-0.5R
Conductor Material	+Chromel, -Alumel
Conductor Dia	0.3mm*7/2
Insulation material	PVC
Insulation color	+ blue, -white
Cable Construction	Parallel
Inner Shielding material	/
Jacket material	PVC
Jacket color	Blue
Outer Shielding Material	/
Ground wire	/
Cable Dielectric Test	DC.500v
Net weight	25kg/km

Hangzhou Ualloy Material Co., Ltd is a high-tech enterprise which specialized in making all kinds of alloy strip such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy for exhaust purifier.

HangZhou Ualloy Material Co., Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.

Our company aims to be the best-quality alloy strip producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.
