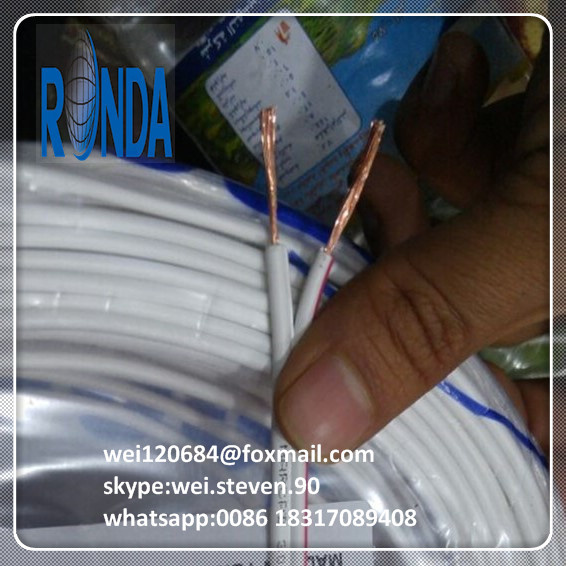

PVC Insulated Twin Flat Copper Electrical Wire

Name: PVC Insulated Twin Flat Copper Electrical Wire
Brand: all-electronics-online.com
SKU: 803310255
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 0.01-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	300/300V
Colour:	Customized
Standard:	IEC60227, IEC60228, IEC60331
Core:	Copper
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Building Wire
Brand:	Ronda

Product Description

Steve Wei Sales Manager

Application:
Highly flexible cable for dry areas, used for connection of small mobile devices, requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending, but no twisting. Suitable for radios, desk lamps, electric razors and similar household or office devices, as long as the cable is adapted to essential specifications of the device. Not suitable for cookers and hot devices. Fixed cable connection to the device or by means of a small plug. Cable ends must be provided with inseparable plugs additionally protected by rubber or thermoplastic insertion. Cable length must not exceed 2 m.

Standards:
>>IEC 60227-5

Construction:
>>Conductor: Bare copper conductor, highly fine wired stranded, class 6 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (nominal diameter 0,15 mm), two parallelly laid conductors
>>Insulation: PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, flat shaped insulation with both-sides central groove for easy separation of conductors

Technical data:
Temperature Range:
During Installation: -5ºC up to +40ºC
at short circuit of max. 5s: up to 150ºC
Nominal Voltage: U₀/U=300/500V
Test Vltage: 2000V
Minimal Inner Bending Radius: 5D
Behavior In Fire: IEC60331-1

*) *) Packing: c.100 = coil 100 m

Dimensions:
Note: Low smoke halogen free type is also available upon request.

For More Information:

cell: 0086 183 1708 9408

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
