| Prod Model: |
H07V-R H07V-U, H05V-R H05V-U |
| Voltage: |
300-1000V |
| Structure: |
Stranded Copper |
| OEM Or ODM: |
Yes |
| Usage: |
Electrical Transimision |
| Size: |
1.5-120sq.mm |
| Name: |
PVC Insulated Wire |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
BV |
| Brand: |
Rmjt |
Product Description

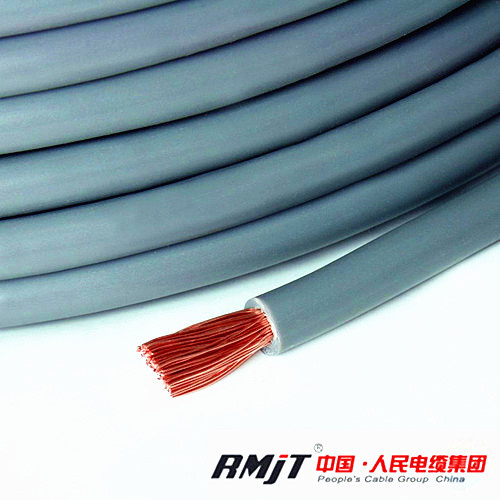

PVC Insulated Wire
Model: H07V-R H07V-U, H05V-R H05V-U
Standards:227 IEC 01/05, equivalent to VDE 0281 BS6004
Conductor: bare solid/stranded copper--class 1 or class 2 IEC228
Insulation: PVC
Voltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2
Temperature range: 0 ºC to 70ºC;
Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
Minimum bending radius:
Up to 10mm² , 3 x overall dia.;10mm² to 25mm², 4 x overall dia.;
Above 25mm², 5 x overall dia.
Application: suitable for use in conduit and for fixed, protected installation
Remark: the cable can be of Low smoke free halogen, flame retardant and other property
Model: H07V-K H05V-K , H07V2-K H05V2-K
Standards:227 IEC 02/06, equivalent to VDE 0281 BS6004
Conductor: bare stranded copper--class 5 IEC228
Insulation: PVC
Voltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2
Temperature range: 0 ºC to 70ºC,0 ºC to 90ºC
Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
Minimum bending radius:
H07V-K, 6 x overall dia. ; H05V-K, 4 x overall dia.;
Application: flexible wiring, for switch control, instrumentation panels and for internal connection
Remark: the cable can be of Low smoke free halogen, flame retardant and other property.
