PVC Insulated Wiring Wire UL CSA UL1007/UL1015

Prod Model:	UL1015
Wire Color:	as Per Customer's Requirement
Cable Voltage:	300/500V 450/750V
Cable Standard:	IEC60332
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Sansen

Product Description

Feature of electrical wire
1. Electircal Wire Price Unit: Meter
2. PVC Insulated and sheath
Parameter of electrical wire
1. Electrical wire Voltage Uo/U 450/750V
2. Electrical wire Long-time working temperature should be lower than 70°C (Can be 90°C or 105°C),
should not be lower than 0°C.
3. Electrical wire Minimum bending radius: minimum bending diameter is two times of cable diameter while test binding
Specification of Electrical wire

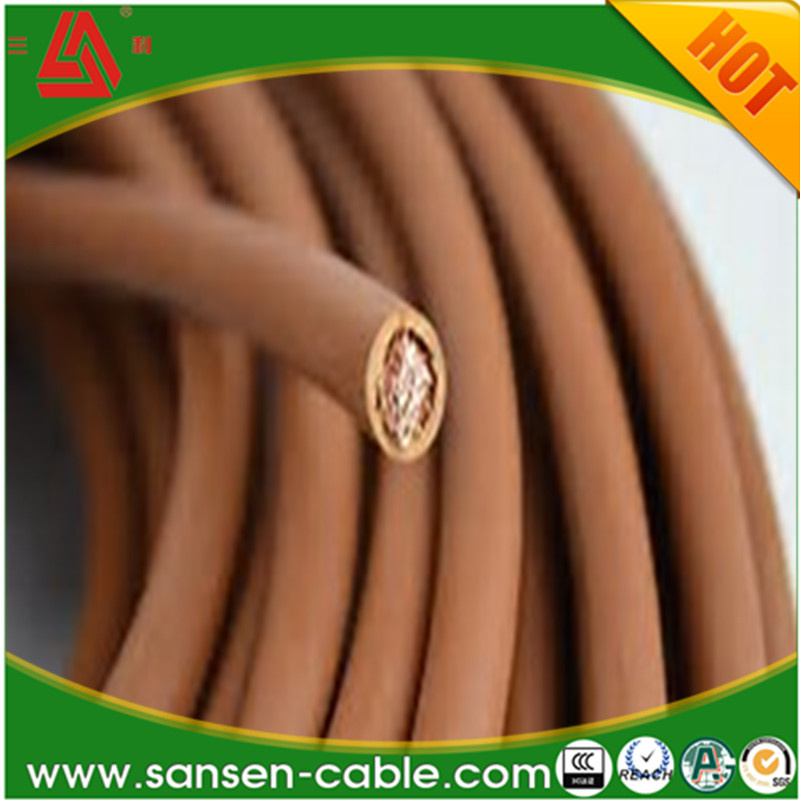

Electrical Wire Type: Pure Copper Conductor , Single Core CU/PVC Electric Wire
Electrical Wire Strandard: IEC60332, GB/T5023-2008 JB8734-1998
Electrical Wire Voltage: 300/500V 450/750V
Electrical Wire Specification: Single Core 13-15AWG etc
Packing of electrical wire Length: 100M 500M 1000M

Type	Cross Section(mm2)	Conductor Size(No. of Cores/Diameter)	Rated Voltage	Nominal Insulation Thickness(mm)	Reference Weight(kg/km)	Application
Solid Type	0.5	1/0.80	300/500V 450/750V	0.6	8.0	Solid, Hard,Suitable for fixed installation
	0.75	1/0.97		0.6	11.4
	1	1/1.13		0.6	15.2
	1.5	1/1.38		0.7	21
	2.5	1/1.78		0.7	32
	4	1/2.25		0.8	47
	6	1/2.76		0.8	67
Stranded Type	1.5	7/0.52		0.7	22	Stranded, Flexible house wiring, Suitable for indoor applicant.
	2.5	7/0.68		0.7	35
	2.5	19/0.40		0.8	34
	4	7/0.85		0.8	50
	4	19/0.52		0.8	51
	6	7/1.04		0.8	71
	6	19/0.64		0.8	72
	10	7/1.35		1.0	118
	10	49/0.52		1.0	127
	16	7/1.70		1.0	177
	16	49/0.64		1.0	184
Flexible Type	1.5	30/0.25		0.7	22	Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument.
	2.5	49/0.25		0.8	34
	4	56/0.30		0.8	49
	6	84/0.30		0.8	70
	10	77/0.40		1.0	117
	16	119/0.40		1.0	168
	25	189/0.40		1.2	265
	...

       The electrical wire can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG electrical Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.



FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 5km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
