| Prod Model: |
2.5mm2 electric wire |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
UL Ce SABS ISO CCC |
| Size: |
12 AWG |
| Voltage: |
600V |
| Cross Section: |
14 AWG-750mcm |
| Insulation Color: |
Blue,Red, Green,Yellow,Blank and So on |
| Packing: |
100m Per Roll |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
TUV |
| Conductor Type: |
Solid or Stranded |
| Application: |
Indoor |
| Sheath Material: |
Nylon |
| Brand: |
Rneda |
Product Description

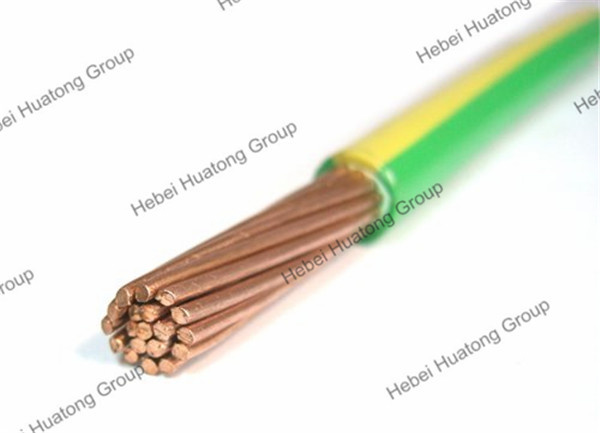

PVC Insulation 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2 Electric Wire1.Application for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
Electrical Wire soft BV electrical wire pvc BV electrical wire called the copper core PVC insulated wires, wires for electrical circuit in a multi BV, BVV, BVR, general use of single core hard conductor cable sheath,
Suitable for AC voltage 450/750V and below the power device, household electrical appliances, instrumentation and telecommunications equipment for wire and cable
2.Specifications for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable :
Section
mm2 |
Conductive wire core |
Insulation Thickness
mm2 |
The average outer diameter
mm2 |
At 20 Conductor resistance Ω / km less than |
70 , the minimum insulation resistance MΩ / km |
|
Root number / diameter,
mm2 |
copper |
copper |
1 |
1/1.13 |
0.6 |
2.8 |
18.1 |
0.011 |
13.7 |
1.5 |
1/1.38 |
0.7 |
3.3 |
12.1 |
0.011 |
20.1 |
2.5 |
1/1.78 |
0.8 |
3.9 |
7.41 |
0.01 |
32 |
4 |
1/2.25 |
0.8 |
4.4 |
4.61 |
0.0071 |
46.8 |
6 |
1/2.70 |
0.8 |
4.9 |
3.08 |
0.007 |
66.5 |
10 |
7/1.35 |
1 |
7 |
1.83 |
0.0065 |
116 |
16 |
7/1.70 |
1 |
8 |
1.15 |
0.005 |
176.5 |
25 |
7/2.14 |
1.2 |
10 |
0.727 |
0.005 |
277.7 |
35 |
7/2.52 |
1.2 |
11.5 |
0.524 |
0.004 |
375 |
50 |
19/1.78 |
1.4 |
13 |
0.384 |
0.0045 |
501.3 |
70 |
19/2.14 |
1.4 |
15 |
0.268 |
0.0035 |
706.5 |
95 |
19/2.52 |
1.6 |
17.5 |
0.193 |
0.0035 |
974.4 |
120 |
37/2.25 |
1.6 |
19 |
0.153 |
0.0032 |
1209.8 |
3.Standard for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
Electrical Wire soft BV electrical wire pvc BV electrical wire implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition,
we can design and manufacture the products as the requirements of customers.
4.Features for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
1. With acid and alkali resistance
2. Oil resistance
3. Moisture-proof
4. Anti-mildew properties
1.22 years production experience and 13 years export experience .

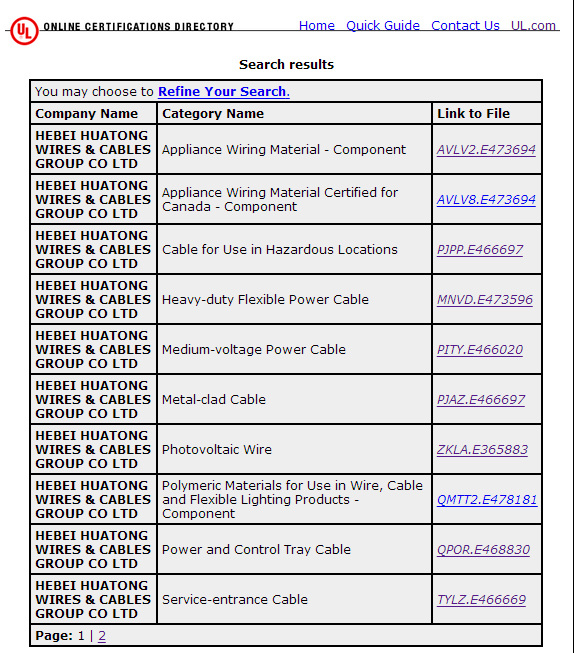

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
