PVC Insulation and PVC Sheath Flexible Cable with IEC 60227
| Price: |
US $ 0.09-0.29/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Flexible cable |
| Number Of Cores: |
Multicore |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description
Specifications
1. rvv cable
2.Class 5 conductor
3.PVC insulation and sheath
4.1-10core,0.5-10sqmm
5.IEC,BS,VDE,GB

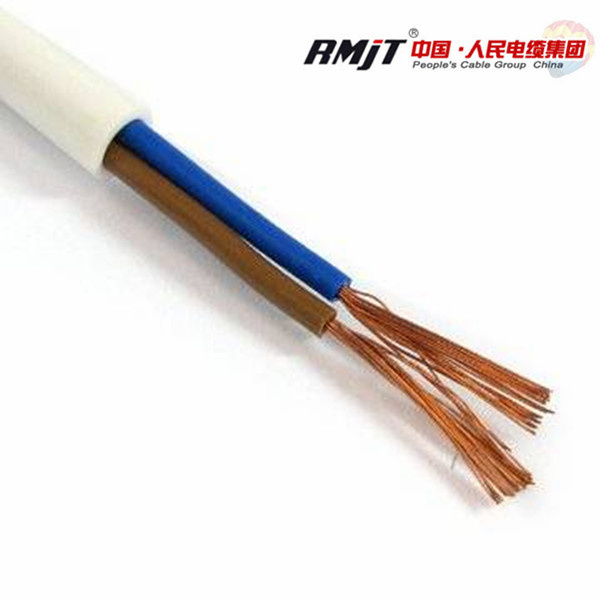

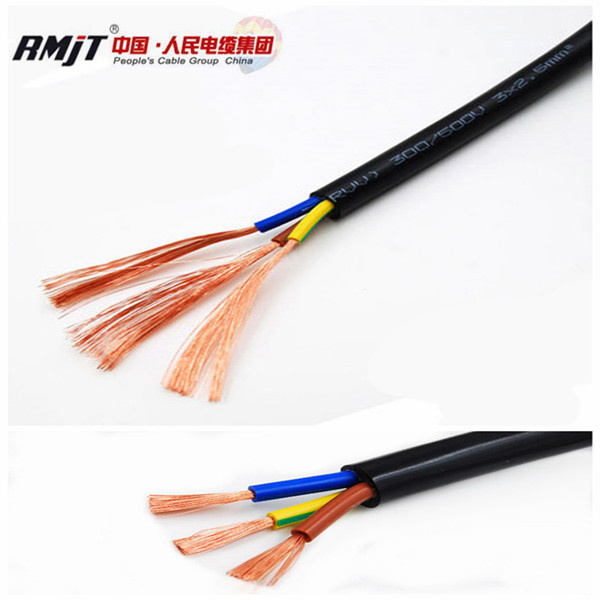

PVC Insulation and PVC Sheath Flexible Cable with IEC 60227
1.U0/U :300/300V 30/500V 450/750v
2.Standard Applied: IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734 .
3.Max.working temperature:70°C, can be 90°C and 110°C as per requirement
4.Conductor :Class 5 flexible pure annealed copper
5.Insulation:PVC
6.Cores:1-10 cores
7.Cross setion area:0.50~10mm2
8.Sheath:PVC sheath
9.Color:black or as per requirement
10.Flame retardent or Fire resistance or Low smoke and halogen free or other property can be available
11.100m per roll or as as per requirement
12.Certification:ISO9001, ISO14001,CE, CB, CCC,etc.
13.OEM can be available
14.People's Cable Group has very good sales over the world , enjoying a very good reputation based on top quality and most competitive price and service.
15.Technical data:
| | SPEC. | Normal
area
mm2 | Conductor
Structure
mm | Min.insulation
resistance
at 700C
Mohm.km | Thickness of
insulation
mm | Thickness of
sheath
mm | Approx.
overall
diameter
mm |
| 300/300V | 227 IEC 52(RVV) | 2x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.1 |
| 227 IEC 52(RVV) | 2x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.6 |
| 227 IEC 52(RVV) | 3x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.4 |
| 227 IEC 52(RVV) | 3x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.9 |
| 227 IEC 53(RVV) | 2x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.4 |
| 300/500V | 227 IEC 53(RVV) | 2x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 6.7 |
| 227 IEC 53(RVV) | 2x1.5 | 48x0.20 | 0.010 | 0.7 | 0.8 | 7.7 |
| 227 IEC 53(RVV) | 2x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.3 |
| 227 IEC 53(RVV) | 3x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.8 |
| 227 IEC 53(RVV) | 3x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 7.1 |
| 227 IEC 53(RVV) | 3x1.5 | 48x0.20 | 0.010 | 0.7 | 0.9 | 8.3 |
| 227 IEC 53(RVV) | 3x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.8 |
| RVV | 3x4.0 | 56x0.30 | 0.007 | 0.8 | 1.1 | 10.9 |
| RVV | 3x6.0 | 84x0.30 | 0.006 | 0.8 | 1.2 | 12.4 |
| 227 IEC 53(RVV) | 4x1.0 | 32x0.20 | 0.010 | 0.6 | 0.9 | 7.9 |
| 227 IEC 53(RVV) | 4x1.5 | 48x0.20 | 0.010 | 0.7 | 1.0 | 9.3 |
| 227 IEC 53(RVV) | 4x2.5 | 77x0.20 | 0.009 | 0.8 | 1.1 | 11.0 |
| RVV | 4x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 12.2 |
| RVV | 4x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 13.8 |
| RVV | 4x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 18.6 |
| RVV | 4x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 21.4 |
| 227 IEC 53(RVV) | 5x1.5 | 48x0.20 | 0.010 | 0.7 | 1.1 | 10.3 |
| 227 IEC 53(RVV) | 5x2.5 | 77x0.20 | 0.009 | 0.8 | 1.2 | 12.2 |
| RVV | 5x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 13.4 |
| RVV | 5x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 15.2 |
| RVV | 5x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 20.5 |
| RVV | 5x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |
Product Line
Certificate

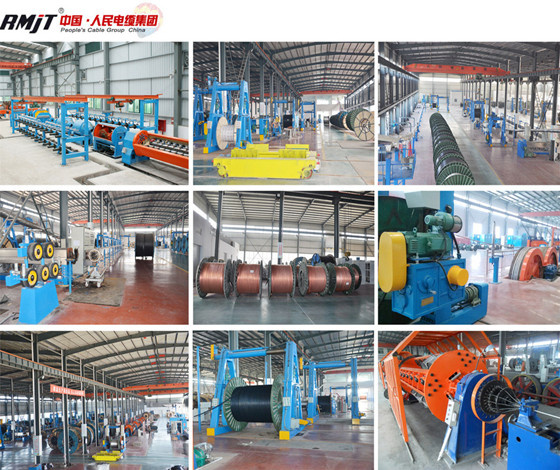

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
