PVC Insulation Non-Flexible Flat Cable BVVB

Name: PVC Insulation Non-Flexible Flat Cable BVVB
Brand: all-electronics-online.com
SKU: 802879495
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 5-13/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEMTBVVB004
Factory:	Huizhou, Dongguan, Shenzhen
Type:	Insulated
Conductor Type:	Stranded
Application:	Power Installation
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Range Of Application:	Electrical Appliance with Voltage300/500V
Brand:	Gemt

Product Description

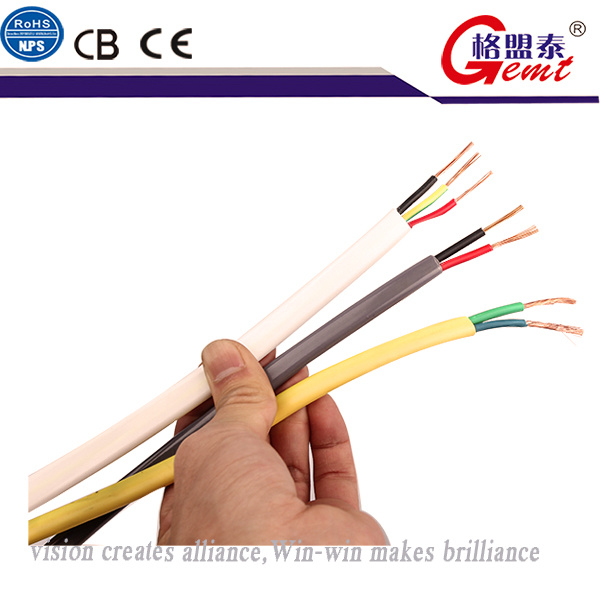

BVVB Flat Electrical Cable Fitting In Lighting
Features:
Standard:GB5023.5-1997
Application:Medium or light type movable electric appliances instruments, household appliances
Structure:Pure copper or CCA, PVC insulator
Rated Voltage:300/500V, 450/750V
Color:White, Black, Yellow, Red, Blue, etc
Package:Ploy Bag, Paper Box, Plastic Spool

Specification:

Item	Cross Section of Area (mm)	Conductor Structure (No./mm)	Insulation Thickness (mm)	Cable O.D (mm)	Max.D.C. Resistance of conductor (20°C)
2 core TPS Wire	2x0.12	2x7/0.15	0.4	1.7*3.4	81.2 Ohm/km
	2x0.2	2x12/0.15	0.4	2.0*4.0	75.4 Ohm/km
	2x0.3	2x16/0.15	0.5	2.5*5.0	69.2 Ohm/km
	2x0.4	2x23/0.15	0.6	2.8*5.6	52.8 Ohm/km
	2x0.5	2x28/0.15	0.8	3.0*6.0	39.0 Ohm/km
	2x0.75	2x42/0.15	0.8	3.2*6.4	26.0 Ohm/km
	2x1	2x32/0.20	0.8	3.3*6.6	19.5 Ohm/km
	2x1.5	2x48/0.20	0.8	3.8*7.6	13.3 Ohm/km
	2x2.5	2x78/0.2	1	4.2*8.4	7.6 Ohm/km

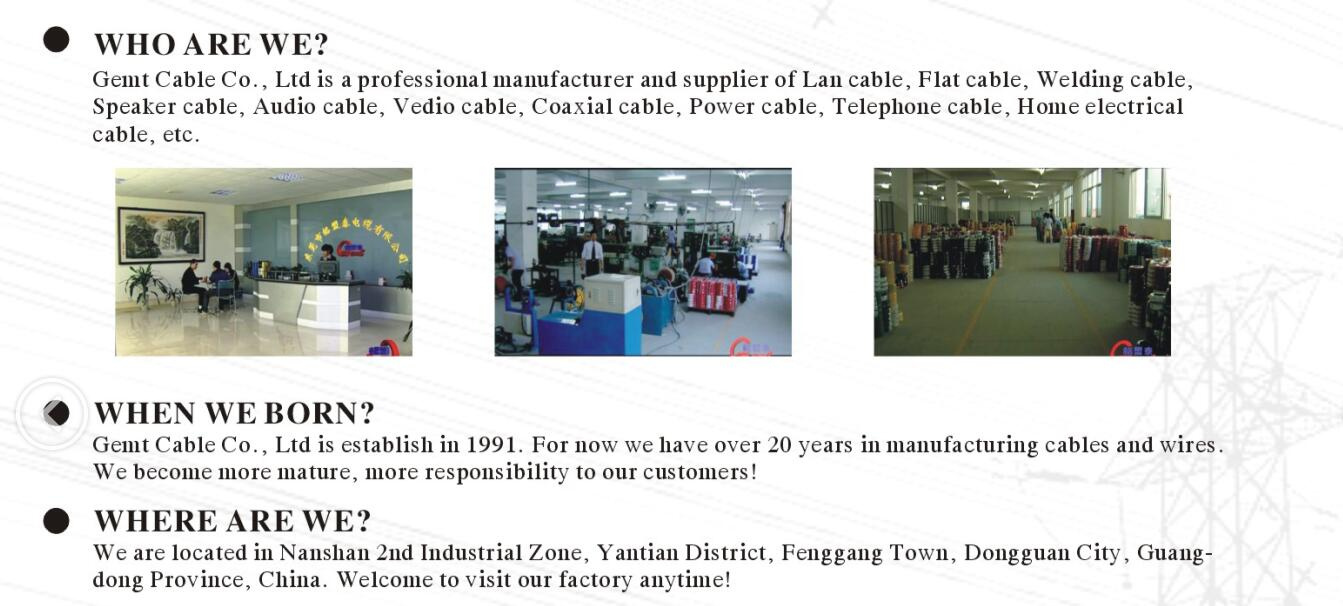

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

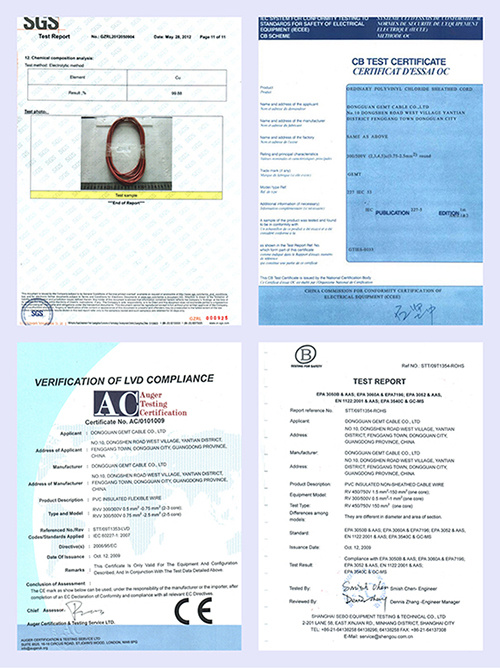

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
