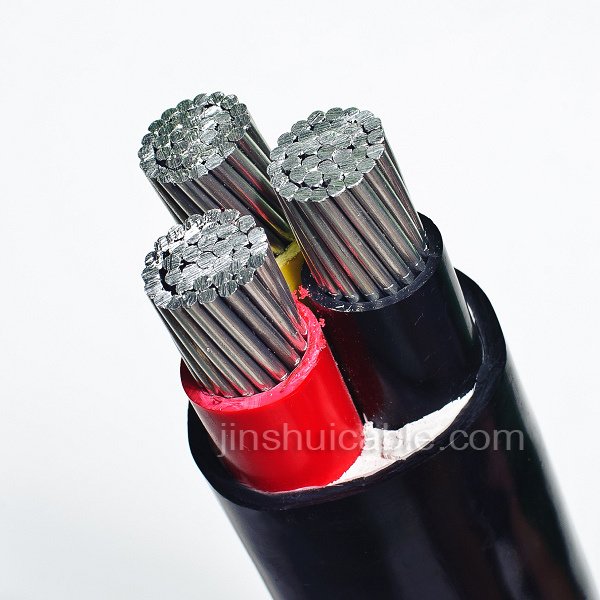

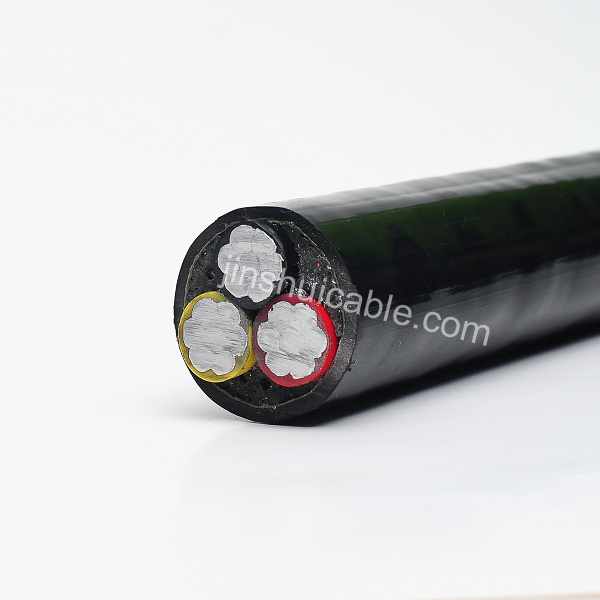

PVC Insulation Power Cable

PVC Insulation Power Cable
Price: US $ 1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P
Prod Model: NYY Cable
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application: Overhead
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: PVC
Certification: VDE
Brand: Jinshui

Product Description

1. Standard and Scope of Application
The power cable can be produced and supplied according to IEC60502, also can manufacture the products that are based on BS and other standards. In addition, under customers' requirement, we can design and manufacture the products that have special performance. The power cable are used in fixed laying on transmission and distribution electrical lines of 50HZ AC rated voltage up to 6kv.

2. Property for Using
1. The long-time permissible working temperature of cable conductive core is not more than 70° C.
2. During short circuit(max. Lasting time is not more than 5 seconds), the max. Temperature of cable conductor is not more than 165° C.
3. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance and flame resistance.

3. Technical Requirement(Type and Name)
Type Name
VV(VLV) Copper(Aluminum)Conductor PVC Insulated and Sheathed Power Cable
VY(VLY) Copper(Aluminum)Conductor PVC Insulated, PE Sheathed Power Cable
VV22(VLV22) Copper(Aluminum)Conductor PVC Insulated, STA, PVC Sheathed Power Cable
VV23(VLV23) Copper(Aluminum)Conductor PVC Insulated, STA, PE Sheathed Power Cable
VV32(VLV32) Copper(Aluminum)Conductor PVC Insulated, SWA, PVC Sheathed Power Cable
VV33(VLV33) Copper(Aluminum)Conductor PVC Insulated, SWA, PE Sheathed Power Cable


Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.

Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.

Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.

With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.

With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
